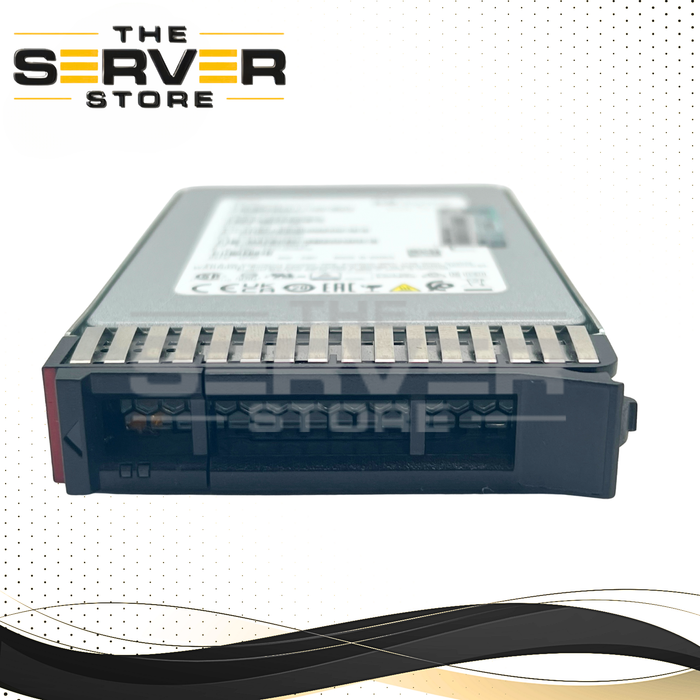

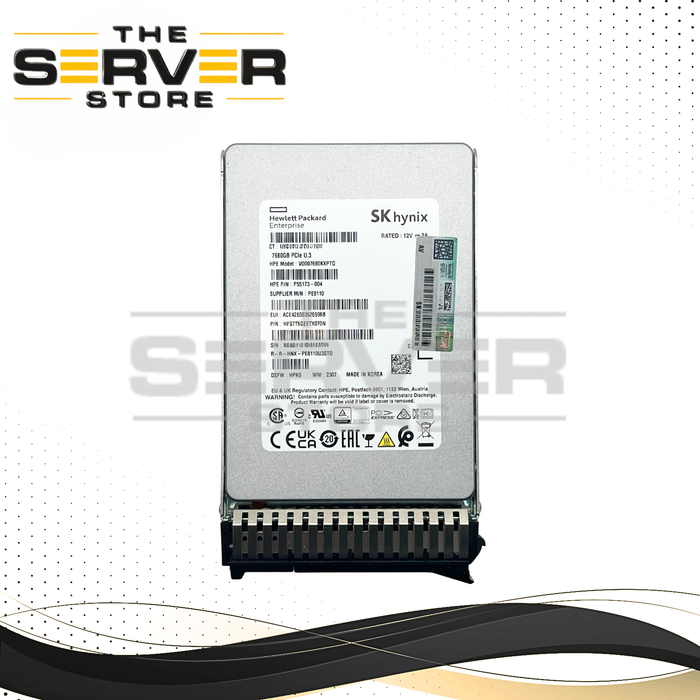

SK Hynix 7.68TB NVMe U.3 PCIe Gen 4.0 x4 RI SFF 2.5" 15mm SSD PE8110 Series For Lenovo ThinkSystem Servers
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | 7.68TB PE8110 (with Lenovo ThinkSystem Tray) |
| Manufacturer | SK Hynix |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Solid State Drives (SSD) |
| Model | PE8110 Series |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
SK Hynix 7.68TB NVMe U.3 PCIe Gen 4.0 x4 RI SFF 2.5" 15mm SSD for Lenovo ThinkSystem Server PE8110 Series
Compatibility Note
The SK Hynix PE8110 Series U.3 NVMe SSD (HPE-branded variant) is compatible with Lenovo ThinkSystem servers that support NVMe U.3/U.2 drives over PCIe. Full functionality requires an NVMe-enabled backplane and a Lenovo 2.5" SFF hot-swap tray.
Core Specifications
- Capacity: 7.68TB
- Interface: PCIe Gen4 x4 (NVMe 1.4)
- Form Factor: 2.5" SFF (15mm)
- Connector: U.3 (backward compatible with U.2)
- Series: SK Hynix PE8110
- Controller: SK Hynix Aquarius (ACNT036M)
- NAND Type: 128-layer 3D TLC ("4D NAND")
- Workload Type: Read Intensive (RI)
- Endurance: 1.0 DWPD
- MTBF: Up to ~2.5–3.35 million hours
- Power Consumption: ~10W active / ~5–6W idle
- Security: Digitally Signed Firmware (DS)
Performance
- Sequential Read: Up to 6,200 MB/s
- Sequential Write: Up to 3,870 MB/s
- Random Read (4K): Up to ~582,000 IOPS
- Random Write (4K): Up to ~190,000 IOPS
Lenovo ThinkSystem Server Compatibility
V3 Generation (PCIe Gen4 / Gen5 – Full Performance):
SR630 V3, SR650 V3, SR655 V3, SR665 V3, SR670 V3, SR850 V3, SR860 V3, SR950 V3, ST650 V3
V2 Generation (PCIe Gen4 – Native Support):
SR630 V2, SR650 V2, SR645, SR665, SR850 V2, SR860 V2, ST650 V2, SN550 V2
Gen1 Generation (PCIe Gen3 – Limited Performance):
SR630, SR650, SR530, SR550, SR570, SR590, SR850, SR860, SR950, ST550
Important Deployment Notes
-
Drive Tray Requirement:
Must be installed in a Lenovo 2.5" SFF tray (e.g., 4XH7A80261). Remove existing HPE carrier before installation. -
Backplane Requirement:
Requires AnyBay or NVMe-specific backplane. SAS/SATA-only backplanes are not compatible. -
Interface Compatibility:
U.3 is backward compatible with U.2, but system must support NVMe signaling. -
Performance Scaling:
- V3/V2 systems: Full PCIe Gen4 performance
- Gen1 systems: Limited to PCIe Gen3 speeds (~3,500 MB/s max)
-
Firmware Behavior:
Lenovo XClarity Controller (XCC) may display the drive as “Non-Genuine” or “Unknown Vendor,” which typically does not impact functionality.
Summary
High-performance 7.68TB enterprise NVMe SSD optimized for read-intensive workloads. Fully compatible with Lenovo ThinkSystem V2/V3 platforms and backward compatible with Gen1 systems when properly configured with NVMe backplanes and trays.
