Seagate 3.84TB SATA 6G RI SFF 2.5" SED SSD Nytro 1351 Series XA3840LE10063
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | XA3840LE10063 |
| Manufacturer | Seagate |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Solid State Drives (SSD) |
| Model | Nytro 1351 Series |
| Form Factor | SFF 2.5" 7mm SSD (Read Description) |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |

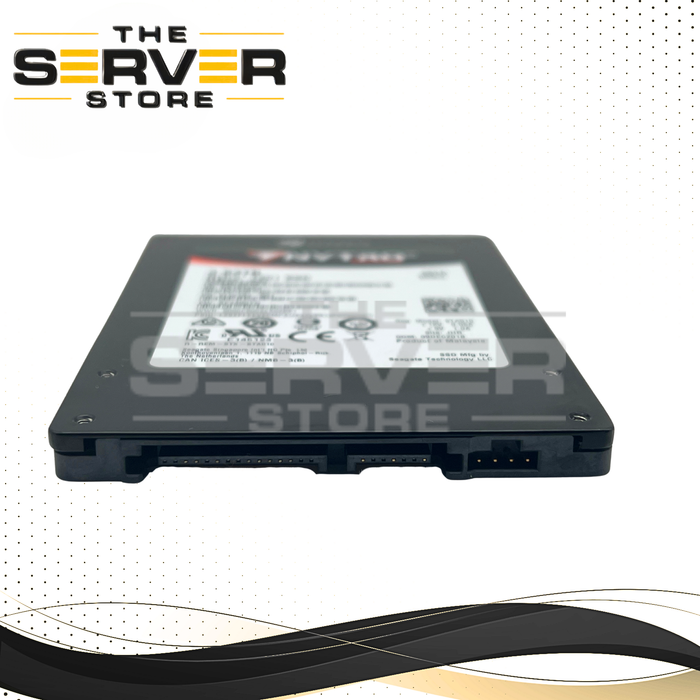

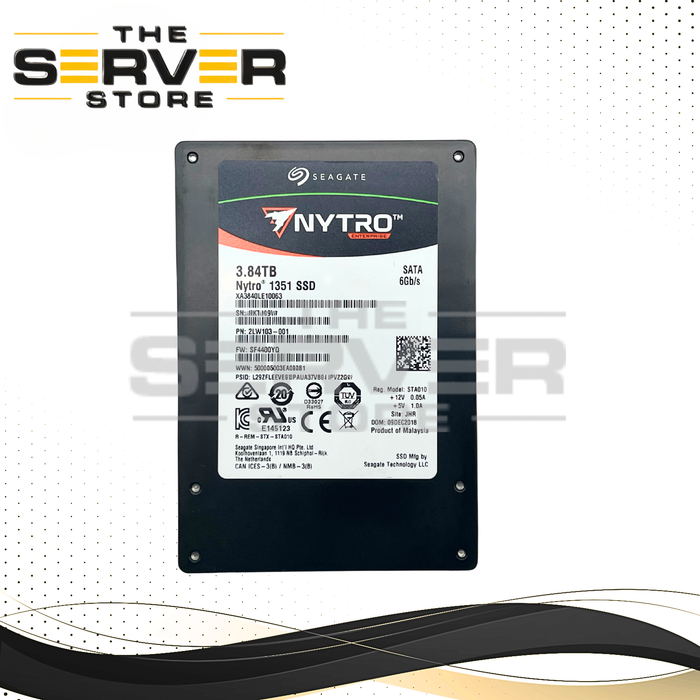

Seagate 3.84TB SATA 6G RI SFF 2.5" SED SSD Nytro 1351 Series XA3840LE10063
Other Related Part Number: 2LW103-001
Overview
The Seagate Nytro 1351 Series 3.84TB (Model: XA3840LE10063) is an enterprise-grade Read Intensive (RI) Self-Encrypting Drive (SED) designed for data center, cloud, and enterprise server environments. Built with 3D TLC NAND and a SATA 6Gb/s interface, it delivers reliable performance, strong endurance, and integrated hardware-based security.
Drive Tray / Carrier Compatibility (7mm SATA SSD)
This 3.84TB SATA SSD requires a 7mm-compatible 2.5″ SFF tray/carrier, which varies by server manufacturer and generation. It is a SATA 6Gb/s Read Intensive (RI) Self-Encrypting Drive (SED) designed for enterprise environments, ensuring broad compatibility with standard SFF bays in HPE, Dell, Lenovo, Cisco, and Supermicro servers when the correct tray and SATA backplane are used.
Core Specifications
- Capacity: 3.84TB (3840GB)
- Interface: SATA III 6Gb/s
- Form Factor: 2.5-inch SFF (7mm height)
- NAND Type: 3D TLC NAND
- Workload Type: Read Intensive (RI)
- Endurance: 1 DWPD (~12,300 TBW over 5 years)
- MTBF: 2 million hours
Performance (Sustained)
- Sequential Read: Up to 560 MB/s
- Sequential Write: Up to 535 MB/s
- Random Read (4KB): Up to 90,000 IOPS
- Random Write (4KB): Up to 22,000 IOPS
- Latency: ~172 µs (read) / ~58 µs (write)
Power & Physical
- Power Consumption: ~3.5W active / ~1.2W idle
- Dimensions: 7mm (H) x 70.1mm (W) x 100.25mm (D)
- Weight: ~82g
- Operating Temperature: 0°C to 70°C
Security & Enterprise Features
- Encryption: Self-Encrypting Drive (SED) with AES-256
- Security Standard: TCG Opal compliant
- Instant Secure Erase (ISE): Fast cryptographic erase capability
- Power Loss Protection: Safeguards data during unexpected outages
- Data Integrity: End-to-end protection with SHIELD and RAISE technologies
- DuraWrite Technology: Improves endurance and efficiency via data reduction
Server Compatibility
This SSD is widely supported across enterprise servers with SATA 6Gb/s backplanes and 2.5-inch SFF bays:
- HPE ProLiant: DL160, DL180, DL20, DL325, DL360, DL380, DL385, DL560, DL580; ML30, ML110, ML350; Synergy 480 Gen10 Plus; Apollo XL170r, XL190r, XL230a, XL270d
- Dell PowerEdge: R240, R340, R440, R540, R640, R650, R740, R740xd, R750, R840, R940; T140, T340, T440, T640; M640, MX740c, MX840c
- Lenovo ThinkSystem: SR250, SR530, SR550, SR570, SR590, SR630, SR650, SR850, SR860, SR950; ST250, ST550; SD530, SN550, SN850
- Cisco UCS: C220 M5/M6, C240 M5/M6, C480 M5; B200 M5/M6, B480 M5; X210c M6/M7
- Supermicro: 1019, 1029, 2029, 5019, 6019 series; SYS-1029U, SYS-6029U; SYS-2029BT, SYS-6029TR
Compatibility Notes
- Requires a SATA-compatible backplane/controller (not NVMe/SAS-only).
- Fits standard 2.5" SFF 7mm bays (widely supported across modern servers).
- OEM systems may show “non-certified” warnings, but the drive will function normally.
- Ideal for read-heavy workloads such as web hosting, virtualization, and content delivery.
