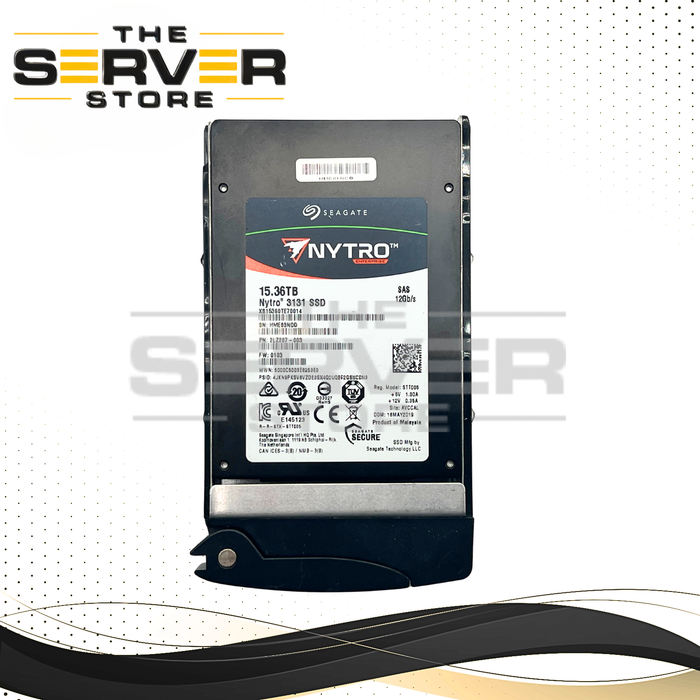

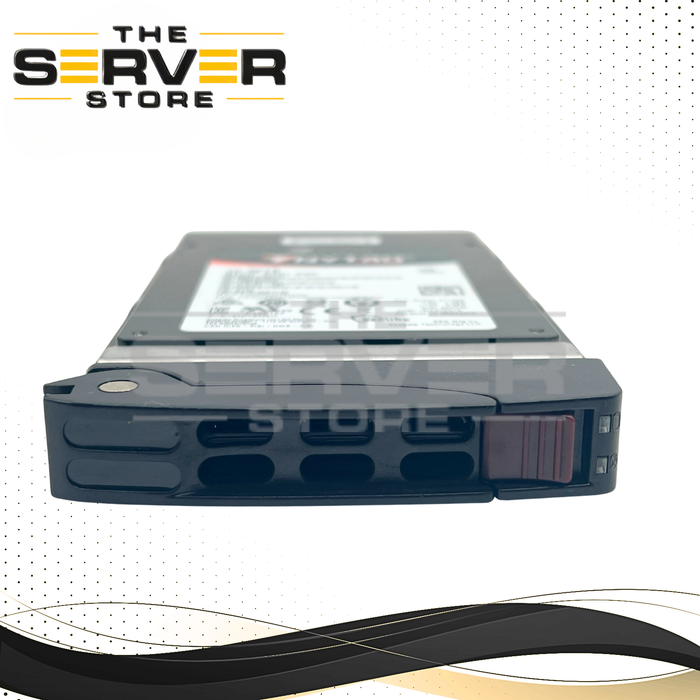

Seagate 15.36TB SAS 12Gbps RI SFF 2.5" SED SSD Nytro 3131 Series XS15360TE70014 for Supermicro Server with Tray
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | XS15360TE70014 (with Supermicro Tray) |
| Manufacturer | Seagate |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Solid State Drives (SSD) |
| Model | Nytro 3131 Series |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Seagate 15.36TB SAS 12Gbps RI SFF 2.5" SED SSD Nytro 3131 Series XS15360TE70014 for Supermicro Server
Specifications & Performance
The Seagate Nytro 3131 XS15360TE70014 is a 15.36TB enterprise-class SAS SSD designed for read-intensive workloads, delivering consistent performance, high endurance, and dual-port redundancy for mission-critical data center environments.
Key Specifications
- Capacity: 15.36TB
- Interface: SAS 12Gb/s (dual-port, backward compatible with 6Gb/s)
- Form Factor: 2.5" SFF (15mm height)
- NAND Type: 3D Enterprise eTLC
- Endurance: 0.7 DWPD (Read Intensive class)
- Total Bytes Written: ~20,000 TBW
- UBER: 1 per 10¹⁷ bits read
- MTBF: Enterprise-class multi-million hour reliability
- Power Consumption: ~4.4W idle (low power operation)
- Security: Self-Encrypting Drive (SED), AES-256, TCG Enterprise compliant
- Data Protection: Power-loss protection + T10 DIF support
Performance
- Sequential Read: up to 2,100 MB/s (dual-port)
- Sequential Write: up to 1,000 MB/s
- Random Read (4K): up to 145,000 IOPS
- Random Write (4K): up to 13,000 IOPS
Supermicro Server Compatibility (with tray support)
Compatible with Supermicro systems featuring SAS 12Gb/s backplanes and 2.5" SFF 15mm drive bays.
1U Systems
SYS-111C-NR, SYS-121BT-HNTR, SYS-1029U-TN10RT
2U Systems
SYS-221BT-HNTR, SYS-2029U-TR4, AS-2124GS-TNR
4U / GPU Systems
SYS-4029GP-TRT2, AS-4124GS-TNR
Multi-Node & High-Density Systems
BigTwin: SYS-621BT-HNTR
FatTwin: SYS-6027TR-DTRF
GrandTwin / TwinPro: ARS-110M-NR
SuperStorage & Edge Platforms
SSG-1029P-NES24R
SSG-2029P-E1CR24L
SYS-5019P-MR
SYS-6019P-WTR
Important Installation Notes
- Requires 2.5" SFF 15mm SAS-compatible hot-swap bay
- Must use Supermicro standard SFF tray
- Ensure SAS 12Gb/s HBA or RAID controller support
- Some systems may require firmware updates for full 15.36TB recognition
- Dual-port SAS enables redundancy and high availability in enterprise deployments
