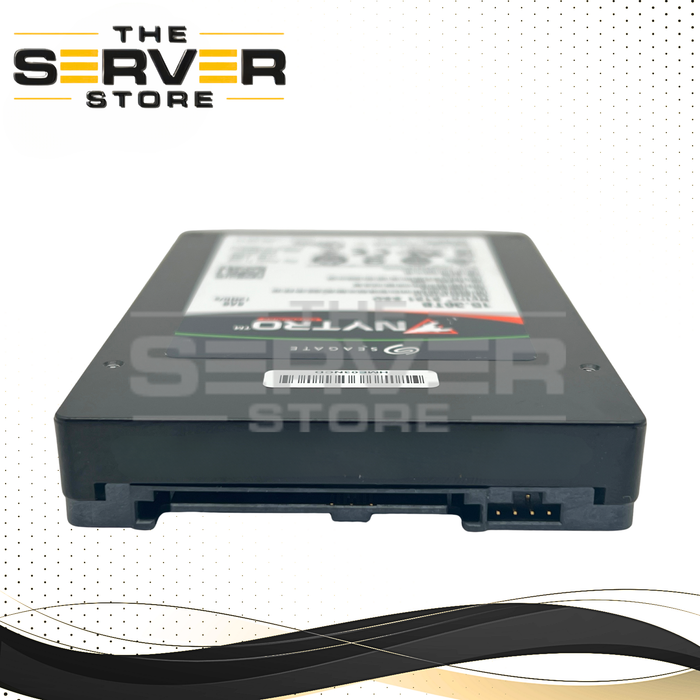

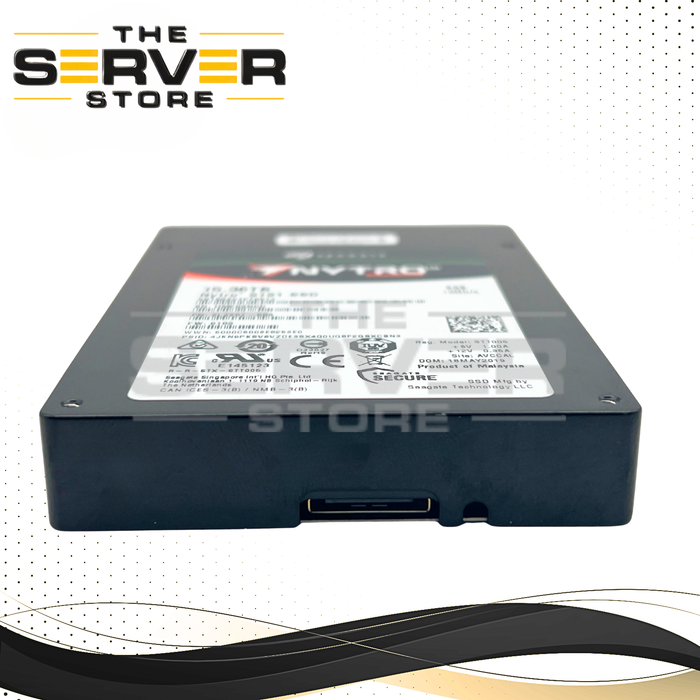

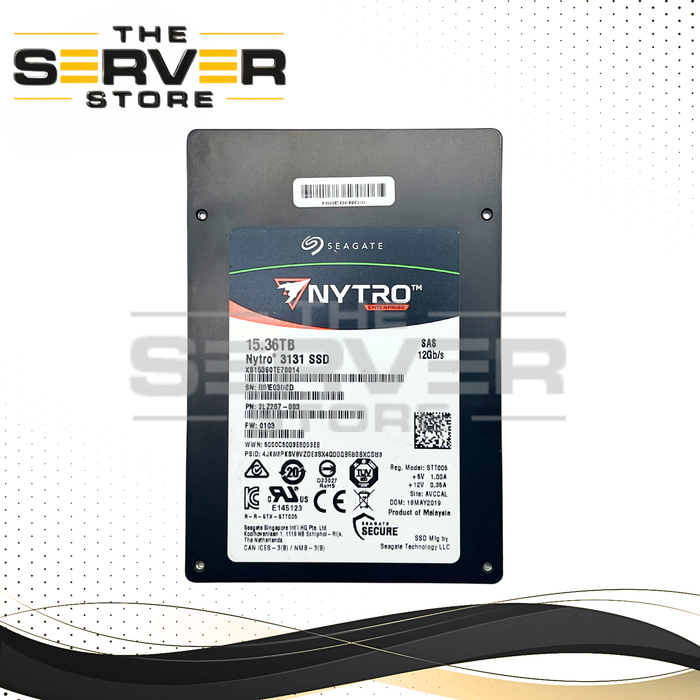

Seagate 15.36TB SAS 12Gbps RI SFF 2.5" SED SSD Nytro 3131 Series XS15360TE70014
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | XS15360TE70014 |
| Manufacturer | Seagate |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Solid State Drives (SSD) |
| Model | Nytro 3131 Series |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Seagate 15.36TB SAS 12Gbps RI SFF 2.5" SED SSD Nytro 3131 Series XS15360TE70014
Drive Tray / Carrier Compatibility (15mm SAS SSD)
This 15.36TB SAS SSD requires a 15mm-compatible 2.5″ SFF tray/carrier depending on server manufacturer and generation. It is a dual-port SAS 12Gb/s enterprise SSD designed for high-reliability storage environments.
Core Specifications
- Model Number: XS15360TE70014
- Series: Seagate Nytro 3131
- Capacity: 15.36 TB
- Interface: Dual-Port SAS 12Gb/s (backward compatible with 6Gb/s)
- Form Factor: 2.5-inch SFF (15mm height)
- NAND Type: 3D eTLC enterprise NAND
- Drive Type: Read Intensive (RI) enterprise SSD
- Encryption: Self-Encrypting Drive (SED), TCG Enterprise compliant
- Data Protection: Power-loss protection, T10 DIF end-to-end protection
- UBER: 1 sector per 10¹⁷ bits read
Performance
- Sequential Read: up to 2,100 MB/s (dual-port)
- Sequential Write: up to 1,000 MB/s
- Random Read (4K): up to 145,000 IOPS
- Random Write (4K): up to 13,000 IOPS
- Latency: ultra-low enterprise SAS latency design
- Endurance: 0.7 DWPD
- Total Bytes Written (TBW): ~20,000 TB
- MTBF: ~2.0 million hours
- Power Consumption: ~4.4W idle
Server Compatibility (ALL MANUFACTURERS)
This SSD is compatible with enterprise servers that support 12Gb/s SAS + 2.5" 15mm bays + SAS backplane + proper tray/caddy.
Dell PowerEdge (Gen 13 / 14 / 15 / 16)
Compatible Models:
R240, R340, R440, R540, R640, R650, R650xs, R660, R740, R740xd, R750, R760, R840, R940, T440, T640
HPE ProLiant (Gen9 / Gen10 / Gen10 Plus / Gen11)
Compatible Models:
DL160, DL180, DL325, DL360, DL380, DL385, DL560, DL580, ML110, ML350, Apollo 4200, Apollo 4500
Lenovo ThinkSystem / System x
Compatible Models:
SR250, SR530, SR550, SR570, SR590, SR630, SR630 V2/V3, SR650, SR650 V2/V3, SR850, SR860, SR950, ST550, x3550 M5, x3650 M5
Cisco UCS (M4 / M5 / M6 / M7)
Compatible Models:
C220 M4/M5/M6/M7, C240 M4/M5/M6/M7, C480 M5/M6, B200 M4/M5/M6, S3260
Supermicro (H11 / H12 / H13 / X11 / X12 / X13)
Compatible Models:
SYS-1029U-TN10RT, SYS-2029U-TN24R, SYS-120U-TNR, SYS-220U-TNR, SYS-111C-NR, SYS-221H-TN24R, SYS-621C-TN12R, AS-1123US-TN9R, AS-2023US-TR4
Important Notes
- Requires 12Gb/s SAS controller or HBA/RAID card
- Must support 2.5" 15mm drive height
- Some older RAID controllers may not support full 15.36TB addressing
- Performance depends on dual-port or single-port SAS configuration
- May show “non-OEM drive” warning in Dell/HPE/Cisco management tools but remains fully functional
