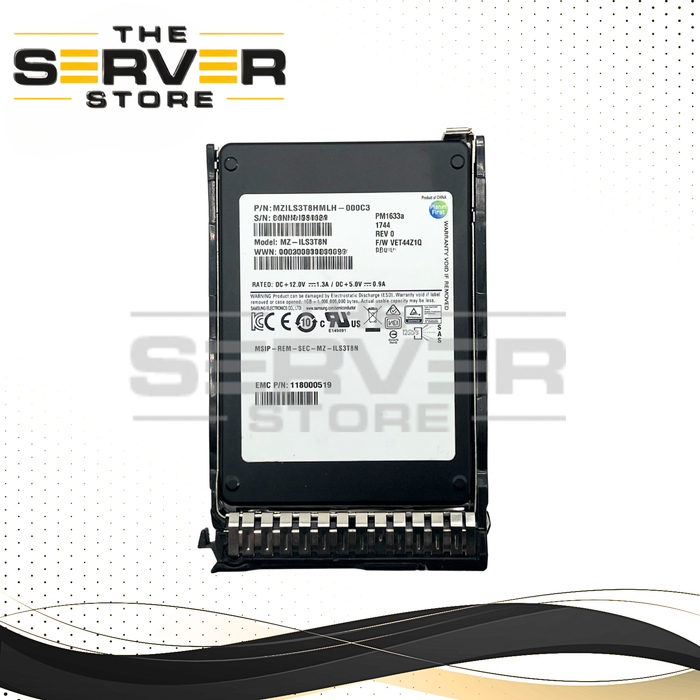

Samsung EMC 3.84TB SAS 12G RI SFF 2.5" 15mm SSD PM1633a Series MZ-ILS3T8N 118000519 for HPE ProLiant Server G8 G9 G10 (HPE SFF SC Tray Included)

Samsung EMC 3.84TB SAS 12G RI SFF 2.5" 15mm SSD PM1633a Series MZ-ILS3T8N 118000519 for HPE ProLiant Server G8 G9 G10 (HPE SFF SC Tray Included)

$0.00 - $0.00
$0.00
$759.99
$759.99 - $759.99
$759.99
SKU 118000519-HPE-SC-KIT
Availability:
50+ in stock

In-store Pickup

Local Pickup in Dallas, TX Available

Shopify Product Page with Tabs
  • Specifications
  • Description
Manufacturer Part Number
Manufacturer
Condition
Standard Warranty 90 Day Replacement Warranty
Item Category
Model
Form Factor
Interface
External Interfaces
Storage Capacity
Transfer Rate
Network Management Type
Processor Type
Clock Speed
Number of Cores
Cache
Socket Type
TDP
Compatible Port
Number of Ports
CPU Type
HDD Form Factor
HDD Interface
HDD Rotation Speed
HDD Storage Capacity
HDD Transfer Rate
Memory Bus Speed
Memory Capacity Per Module
Memory Features
Memory Form Factor
Memory Kit Brand
Memory Kit Breakdown
Memory Kit Speed
Memory Kit Technology
Memory Kit Total Capacity
Memory Kit Voltage
Memory Number of Modules
Memory Number of Pins
Memory Total Capacity
Memory Type
Network Ports
Processor Model
SSD Capacity
SSD Interface
SSD Storage Capacity
SSD Transfer Rate
SSD Type

Samsung EMC 3.84TB SAS 12G RI SFF 2.5" 15mm SSD PM1633a Series MZ-ILS3T8N 118000519 for HPE ProLiant Server Gen8 / Gen9 / Gen10 (HPE SFF SC Tray Included)

Product Description

Upgrade your enterprise storage environment with this Samsung EMC 3.84TB SAS 12Gb/s Read Intensive (RI) Solid State Drive, powered by the enterprise-class Samsung PM1633a Series platform. Designed for virtualization, cloud computing, enterprise databases, SAN environments, and mission-critical server workloads, this SSD delivers outstanding reliability, low latency, and consistent performance.

Built with 48-Layer Samsung TLC V-NAND technology, the PM1633a provides excellent endurance and efficiency for enterprise applications. The 12Gb/s Dual-Port SAS interface enables high availability and redundancy in enterprise storage infrastructures, while integrated Power Loss Protection (PLP) helps safeguard valuable data during unexpected power interruptions.

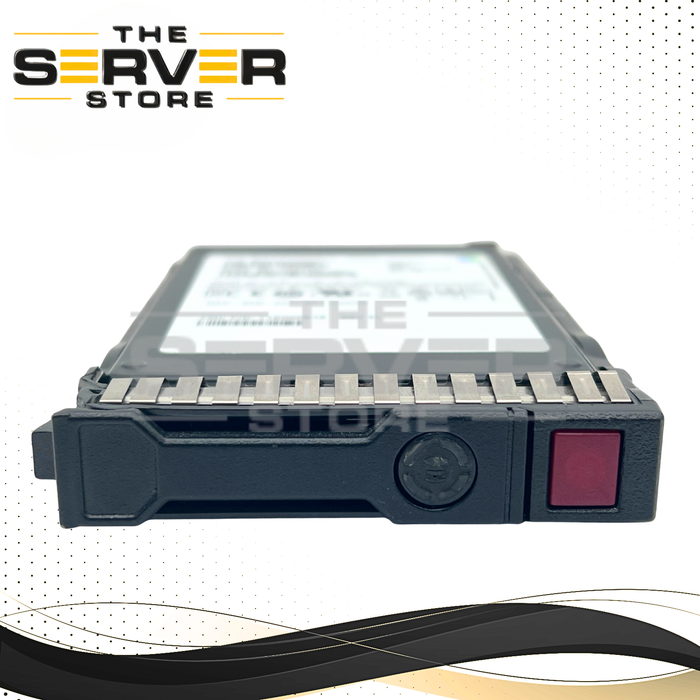

This drive is mounted in an HPE Small Form Factor Smart Carrier (SC) tray, making it ideal for compatible HPE ProLiant Gen8, Gen9, and Gen10 servers supporting 2.5-inch SAS drives.

Key Features

  • Capacity: 3.84TB
  • Interface: 12Gb/s SAS-3 Dual Port
  • Form Factor: 2.5" Small Form Factor (SFF)
  • Drive Height: 15mm
  • Series: Samsung PM1633a
  • Model: MZ-ILS3T8N
  • EMC Part Number: 118000519
  • Enterprise Read Intensive (RI) SSD
  • 48-Layer Samsung TLC V-NAND Flash
  • Enterprise-Class Reliability
  • Power Loss Protection (PLP)
  • Hot-Swap Compatible
  • MTBF: 2 Million Hours
  • Endurance Rating: 1 DWPD
  • Includes HPE SFF Smart Carrier (SC) Tray

Part Numbers

  • EMC P/N: 118000519
  • Alternate EMC P/N: 005052110
  • Samsung Model: MZ-ILS3T8N
  • Samsung Base Model: MZILS3T8HMLH
  • Samsung P/N: MZILS3T8HMLH-000C3
  • Alternate Samsung P/N: MZILS3T8HMLH-000C4
  • Series: PM1633a

Performance Specifications

  • Sequential Read: Up to 1,250 MB/s
  • Sequential Write: Up to 1,100 MB/s - 1,250 MB/s
  • Random Read: Up to 200,000 IOPS
  • Random Write: Up to 35,000 IOPS
  • Interface Speed: 12Gb/s SAS

Reliability & Endurance

  • Endurance Rating: 1 DWPD
  • Total Bytes Written (TBW): 7,008 TB
  • MTBF: 2,000,000 Hours
  • Enterprise Error Correction
  • Uncorrectable Bit Error Rate (UBER): 1 in 10¹⁷ bits read
  • Power Loss Protection with Onboard Capacitors

Power Consumption

  • Active Read/Write: Up to 11W
  • Idle Power: Approximately 4.5W

Compatible HPE ProLiant Servers

Compatible with many HPE ProLiant Gen8, Gen9, and Gen10 servers supporting 2.5-inch SAS hot-swap drives, including:

HPE ProLiant Gen8

  • DL360p Gen8
  • DL380p Gen8
  • DL385p Gen8
  • DL560 Gen8
  • DL580 Gen8
  • ML350p Gen8

HPE ProLiant Gen9

  • DL360 Gen9
  • DL380 Gen9
  • DL560 Gen9
  • DL580 Gen9
  • ML350 Gen9

HPE ProLiant Gen10

  • DL360 Gen10
  • DL380 Gen10
  • DL560 Gen10
  • DL580 Gen10
  • ML350 Gen10

Enterprise Storage Compatibility

Commonly deployed in:

  • Dell EMC Unity Series
  • Dell EMC Unity XT Series
  • Dell EMC VNX Systems
  • Dell EMC PowerVault Systems
  • Dell EMC VMAX Systems
  • Dell EMC PowerMax Systems
  • Select Isilon Platforms
  • Select PowerScale Platforms

Condition

Professionally tested and verified for full functionality. Drive health, firmware version, sector size configuration, and cosmetic condition may vary slightly from unit to unit.

What's Included

  • Samsung EMC 3.84TB SAS 12G RI 2.5" SSD
  • HPE SFF Smart Carrier (SC) Hot-Swap Tray

Important Notes

  • Enterprise-grade Read Intensive (RI) SSD designed for server and storage applications.
  • Non-SED (Non Self-Encrypting Drive).
  • EMC firmware may be configured with 520-byte sectors. Some operating systems, RAID controllers, and server environments may require reformatting to 512-byte sectors before deployment.
  • Please verify compatibility with your server, RAID controller, firmware version, and operating environment before purchasing.
  • Listing includes an HPE SFF Smart Carrier (SC) tray as shown in the product photos.
  • Compatible with HPE ProLiant systems supporting 2.5-inch SAS 12Gb/s drives and HPE Smart Carrier drive bays.
