Samsung EMC 3.84TB SAS 12G RI SFF 2.5" 15mm SSD PM1633a Series MZ-ILS3T8N 118000519 for HPE ProLiant Server G10 Plus G11 G12 (HPE SFF BC Tray Included)
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | |
| Manufacturer | |
| Condition | |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | |
| Model | |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |

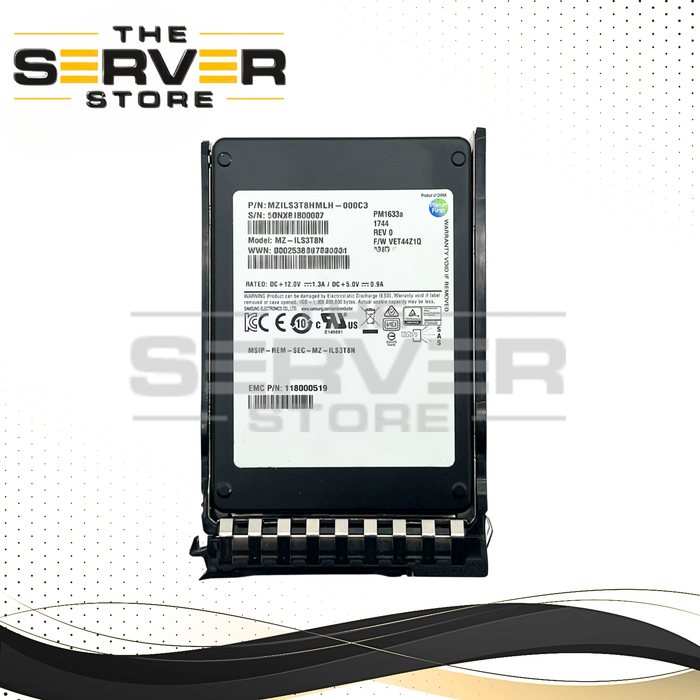

Samsung EMC 3.84TB SAS 12G RI SFF 2.5" 15mm SSD PM1633a Series MZ-ILS3T8N 118000519 for HPE ProLiant Server Gen10 Plus / Gen11 / Gen12 (HPE SFF BC Tray Included)
Product Description
Upgrade your enterprise storage infrastructure with this Samsung EMC 3.84TB SAS 12Gb/s Read Intensive (RI) Solid State Drive, based on the proven Samsung PM1633a Series platform. Designed for enterprise servers, virtualization, cloud computing, databases, and mission-critical storage environments, this SSD delivers exceptional reliability, low latency, and consistent performance for read-intensive workloads.
Built with 48-Layer Samsung TLC V-NAND technology, the PM1633a provides the endurance and efficiency required by modern data centers. Featuring a 12Gb/s Dual-Port SAS interface, this drive supports high-availability storage architectures, while integrated Power Loss Protection (PLP) helps safeguard data during unexpected power interruptions.

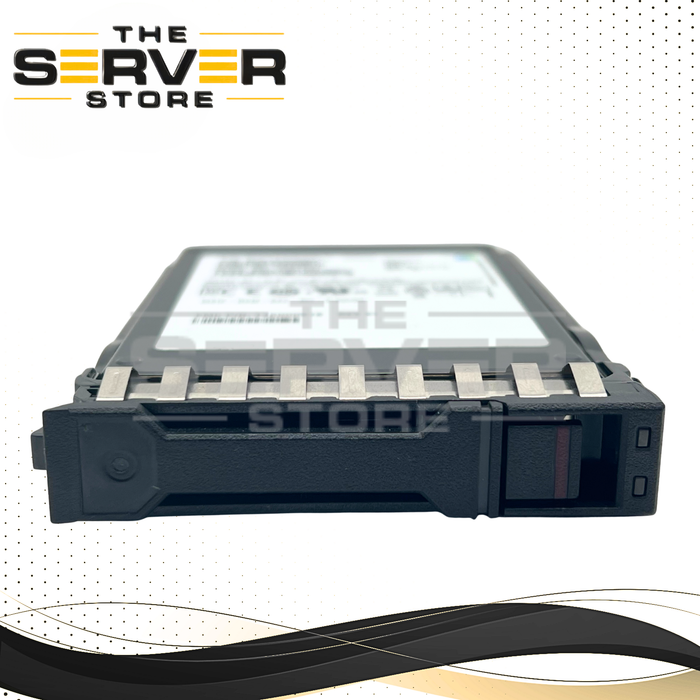

This SSD is installed in an HPE Smart Carrier (SC) / Basic Carrier (BC) Small Form Factor (SFF) hot-swap tray, making it ideal for compatible HPE ProLiant Gen10 Plus, Gen11, and Gen12 servers supporting 2.5-inch SAS drives.
Key Features
- Capacity: 3.84TB
- Interface: 12Gb/s SAS-3 Dual Port
- Form Factor: 2.5" SFF
- Drive Height: 15mm
- Series: Samsung PM1633a
- Model: MZ-ILS3T8N
- EMC Part Number: 118000519
- Enterprise Read Intensive (RI) SSD
- 48-Layer Samsung TLC V-NAND Flash
- Enterprise-Class Reliability
- Power Loss Protection (PLP)
- Hot-Swap Compatible
- MTBF: 2 Million Hours
- Endurance Rating: 1 DWPD
- Includes HPE SFF BC/Smart Carrier Tray
Part Numbers
- EMC P/N: 118000519
- Alternate EMC P/N: 005052110
- Samsung Model: MZ-ILS3T8N
- Samsung Base Model: MZILS3T8HMLH
- Samsung P/N: MZILS3T8HMLH-000C3
- Alternate Samsung P/N: MZILS3T8HMLH-000C4
- Series: PM1633a
Performance Specifications
- Sequential Read: Up to 1,250 MB/s
- Sequential Write: Up to 1,100 MB/s - 1,250 MB/s
- Random Read: Up to 200,000 IOPS
- Random Write: Up to 35,000 IOPS
- Interface Speed: 12Gb/s SAS
Reliability & Endurance
- Endurance Rating: 1 DWPD
- Total Bytes Written (TBW): 7,008 TB
- MTBF: 2,000,000 Hours
- Enterprise Error Correction
- Uncorrectable Bit Error Rate (UBER): 1 in 10¹⁷ bits read
- Power Loss Protection with Onboard Capacitors
Power Consumption
- Active Read/Write: Up to 11W
- Idle Power: Approximately 4.5W
Compatible HPE ProLiant Servers
Compatible with many HPE ProLiant servers supporting 2.5-inch SAS hot-swap drives, including:
HPE ProLiant Gen10 Plus
- DL360 Gen10 Plus
- DL380 Gen10 Plus
- DL385 Gen10 Plus
- ML350 Gen10 Plus
HPE ProLiant Gen11
- DL320 Gen11
- DL360 Gen11
- DL380 Gen11
- DL385 Gen11
- DL560 Gen11
- ML350 Gen11
HPE ProLiant Gen12
- DL320 Gen12
- DL340 Gen12
- DL360 Gen12
- DL380 Gen12
- DL380a Gen12
- ML350 Gen12
Enterprise Storage Compatibility
Commonly deployed in:
- Dell EMC Unity Series
- Dell EMC Unity XT Series
- Dell EMC VNX Series
- Dell EMC PowerVault Systems
- Dell EMC VMAX Systems
- Dell EMC PowerMax Systems
- Select Isilon Platforms
- Select PowerScale Platforms
Condition
Professionally tested and verified for full functionality. Drive health, firmware version, sector size configuration, and cosmetic condition may vary slightly from unit to unit.
What's Included
- Samsung EMC 3.84TB SAS 12G RI 2.5" SSD
- HPE SFF BC / Smart Carrier Hot-Swap Tray
Important Notes
- Enterprise-grade Read Intensive (RI) SSD designed for server and storage applications.
- Non-SED (Non Self-Encrypting Drive).
- EMC firmware may be formatted with 520-byte sectors. Some RAID controllers, operating systems, and server environments may require reformatting to 512-byte sectors before deployment.
- Please verify compatibility with your server, controller, firmware version, and operating environment before purchasing.
- Listing includes an HPE SFF BC (Basic Carrier) / Smart Carrier hot-swap tray as shown in the product photos.
- Compatible with HPE ProLiant systems that support 2.5-inch SAS 12Gb/s drives and HPE Smart Carrier drive bays.
