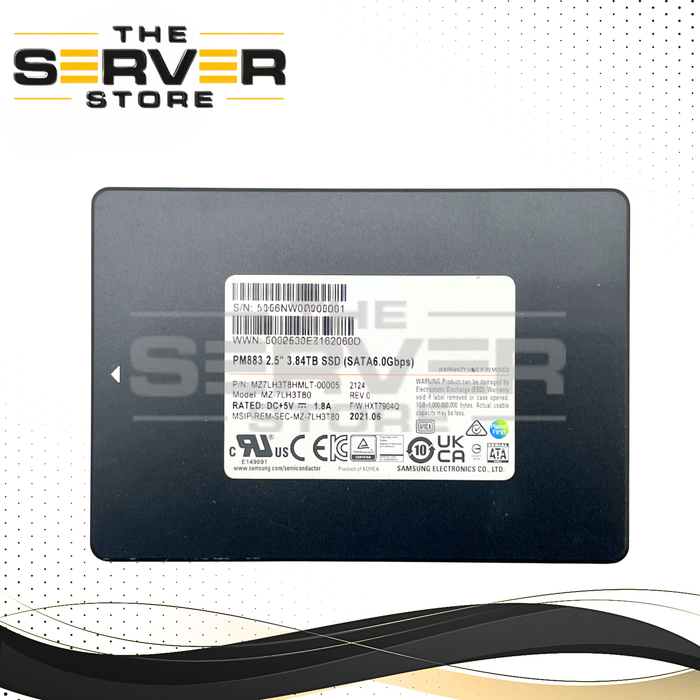

Samsung 3.84TB SATA 6G RI SFF 2.5" SSD PM883 Series MZ-7LH3T80 MZ7LH3T8HMLT
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | MZ7LH3T8HMLT-00005 |
| Manufacturer | Samsung |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Solid State Drives |
| Model | PM883 Series MZ-7LH3T80 |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type | Internal SSD |
Samsung 3.84TB SATA 6G RI SFF 2.5" SSD PM883 Series MZ-7LH3T80 MZ7LH3T8HMLT
Other Related Part Numbers: MZ7LH3T8HMLT-00005
The Samsung PM883 MZ7LH3T8HMLT-00005 is a 3.84TB enterprise-grade SATA SSD designed for data center and server environments. Built on Samsung’s proven PM883 platform, it delivers consistent performance, high endurance, and enterprise reliability for read-intensive and mixed-use workloads. It features advanced data protection technologies including Power Loss Protection (PLP) and AES 256-bit hardware encryption for secure and stable operation.
Core Specifications
- Capacity: 3.84TB (3840GB)
- Form Factor: 2.5-inch SFF (7mm height)
- Interface: SATA III 6Gb/s
- NAND Type: Samsung 64-layer 3D V-NAND TLC
- Controller: Samsung MJX (Maru)
- Cache: 4GB LPDDR4 DRAM
- Workload Type: Read Intensive (RI)
Performance
- Sequential Read: Up to 550 MB/s
- Sequential Write: Up to 520 MB/s
- Random Read (4KB): Up to 98,000 IOPS
- Random Write (4KB): Up to 28,000 IOPS
- Latency: ~140 µs (Read) / ~40 µs (Write)
Reliability & Endurance
- Endurance: ~1.3 DWPD
- Total Bytes Written (TBW): ~5,466 TB
- MTBF: 2,000,000 hours
- Data Protection: End-to-End Data Protection + Power Loss Protection (PLP)
- Encryption: AES 256-bit (TCG Opal 2.0 support)
Power & Environmental
- Active Power: ~2.3W (Read) / ~3.6W (Write)
- Idle Power: ~1.3W
- Form Factor Weight: ~58g
- Operating Temperature: Enterprise standard (0°C to 70°C typical)
Compatible Server Manufacturers & Models
Dell PowerEdge (13G / 14G / 15G / 16G)
R230, R240, R340, R440, R540, R640, R650, R660, R740, R740xd, R750, R760, T340, T440, T640, M640, FC640
HPE ProLiant (Gen9 / Gen10 / Gen11)
DL20, DL160, DL180, DL325, DL360, DL380, DL385, DL560, DL580, ML30, ML110, ML350, MicroServer Gen11, MSA 2050/2060
Lenovo ThinkSystem
SR250, SR530, SR550, SR570, SR590, SR630, SR650, ST250, ST550
Cisco UCS Servers
C220, C240 (M4 / M5 / M6)
Other Platforms
Supermicro SuperServer (all 2.5" SATA systems), Synology & QNAP enterprise NAS systems
Drive Tray / Carrier Compatibility (7mm SATA SSD)
This SSD uses a standard 2.5″ SFF 7mm form factor and requires a manufacturer-specific tray/caddy depending on the server platform. It is widely compatible across enterprise systems supporting SATA drives and is commonly used in RAID, virtualization, and data center storage environments.
Important Compatibility Notes
- Fits both 7mm and 15mm 2.5" drive bays
- Requires proper server-specific tray/caddy (not included unless specified)
- SATA drives are compatible with SAS controllers (backward compatibility)
- OEM firmware variations may affect monitoring features depending on system brand
This Samsung PM883 3.84TB SSD is a reliable, high-capacity solution for enterprise storage, offering strong performance, proven endurance, and broad compatibility across major server platforms.
