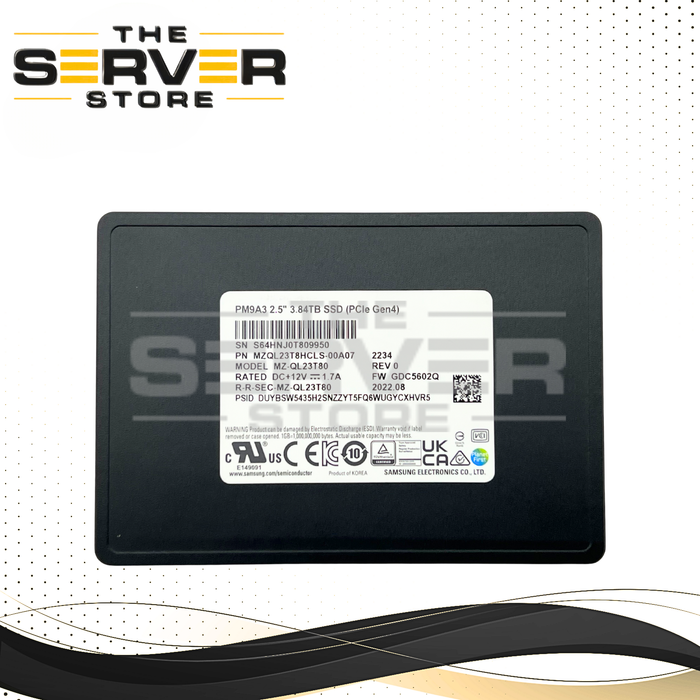

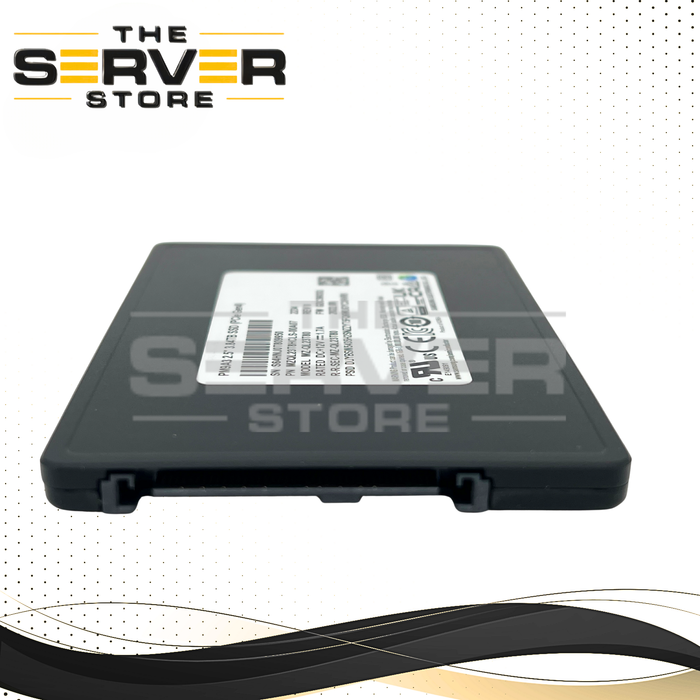

Samsung 3.84TB NVMe x4 U.2 RI 2.5" SED SSD PM9A3 MZ-QL23T80 MZQL23T8HCLS-00A07

Samsung 3.84TB NVMe x4 U.2 RI 2.5" SED SSD PM9A3 MZ-QL23T80 MZQL23T8HCLS-00A07

$0.00 - $0.00
$0.00
$1,329.99
$1,329.99 - $1,329.99
$1,329.99
SKU MZQL23T8HCLS-00A07
Availability:
Only 1 left!

In-store Pickup

Local Pickup in Dallas, TX Available

Shopify Product Page with Tabs
  • Specifications
  • Description
Manufacturer Part Number MZQL23T8HCLS-00A07
Manufacturer Samsung
Condition Refurbished (90%+ Health)
Standard Warranty 90 Day Replacement Warranty
Item Category Solid State Drives (SSD)
Model MZ-QL23T80 PM9A3 Series
Form Factor
Interface
External Interfaces
Storage Capacity
Transfer Rate
Network Management Type
Processor Type
Clock Speed
Number of Cores
Cache
Socket Type
TDP
Compatible Port
Number of Ports
CPU Type
HDD Form Factor
HDD Interface
HDD Rotation Speed
HDD Storage Capacity
HDD Transfer Rate
Memory Bus Speed
Memory Capacity Per Module
Memory Features
Memory Form Factor
Memory Kit Brand
Memory Kit Breakdown
Memory Kit Speed
Memory Kit Technology
Memory Kit Total Capacity
Memory Kit Voltage
Memory Number of Modules
Memory Number of Pins
Memory Total Capacity
Memory Type
Network Ports
Processor Model
SSD Capacity
SSD Interface
SSD Storage Capacity
SSD Transfer Rate
SSD Type

Samsung 3.84TB NVMe U.2 PCIe Gen4 x4 RI SED SSD PM9A3

Samsung 3.84TB NVMe x4 U.2 RI 2.5" SED SSD PM9A3 MZ-QL23T80 MZQL23T8HCLS-00A07

The Samsung PM9A3 (MZQL23T8HCLS-00A07 / MZ-QL23T80) is a high-performance enterprise NVMe SSD engineered for read-intensive (RI) workloads in modern data centers. Built with PCIe Gen4 x4 and Samsung V6 (128-layer) V-NAND TLC, this drive delivers exceptional throughput, low latency, and enterprise-grade reliability, making it ideal for cloud computing, CDN, big data analytics, and database applications.

Featuring a 2.5-inch U.2 (SFF-8639) form factor, the PM9A3 is designed for seamless integration into enterprise servers and storage systems requiring high-speed NVMe performance.

Key Features

  • 3.84TB enterprise NVMe SSD

  • PCIe Gen4 x4 with NVMe 1.4 protocol

  • Read-Intensive (RI) workload optimized

  • Samsung 128-layer V-NAND TLC (V6)

  • Samsung Elpis controller

  • U.2 2.5-inch (7mm) form factor

  • Self-Encrypting Drive (SED) with AES 256-bit

  • Power Loss Protection (PLP)

  • High IOPS for data-heavy applications

Core Specifications

  • Model Number: MZQL23T8HCLS-00A07

  • Series: PM9A3

  • Capacity: 3.84TB

  • Interface: PCIe Gen4 x4

  • Protocol: NVMe 1.4

  • Form Factor: 2.5-inch U.2 (SFF-8639), 7mm height

  • NAND Type: Samsung V-NAND TLC (3-bit MLC)

  • Controller: Samsung Elpis

Performance Metrics

Metric Performance
Sequential Read Up to 6,900 MB/s
Sequential Write Up to 4,100 MB/s
Random Read (4KB) Up to 1,000,000 IOPS
Random Write (4KB) Up to 180,000 IOPS
Latency (Read/Write) ~ 80µs / 30µs

This performance profile is optimized to maximize read throughput, making it ideal for data retrieval-heavy environments.

Endurance & Reliability

  • Endurance: 1.0 DWPD (5 years)

  • Total Bytes Written (TBW): 7,008 TB (7.0 PB)

  • MTBF: 2,000,000 hours

  • UBER: ~1 sector per 10¹⁷ bits read

The PM9A3 delivers enterprise-class endurance and long-term reliability, suitable for continuous operation in data centers.

Power & Environmental

  • Active Power (Read/Write): ~11.0W / 13.5W

  • Idle Power: 3.5W – 4.0W

  • Operating Temperature: 0°C to 70°C (typical enterprise range)

  • Shock Resistance: 1,500G @ 0.5ms

Security & Data Protection

  • Encryption: AES 256-bit XTS hardware encryption

  • Security Standards: TCG Opal 2.0, FIPS-compliant SED features

  • Power Loss Protection (PLP): Prevents data loss during unexpected outages

  • Management: NVMe-MI (SMBus) for out-of-band management

Workload Classification (Read Intensive – RI)

The PM9A3 is specifically designed for read-intensive environments, offering:

  • 1.0 DWPD endurance rating

  • Significantly higher read IOPS (1M) vs write IOPS

  • Optimized for high read throughput and low latency

Ideal Use Cases:

  • Content Delivery Networks (CDN)

  • NoSQL / distributed databases

  • Cloud and hyperscale infrastructure

  • Big data analytics platforms

Other Related Part Numbers

MZQL23T8HCLS-00A07, MZ-QL23T80

The Samsung PM9A3 3.84TB NVMe U.2 SSD combines cutting-edge PCIe Gen4 performance, enterprise reliability, and advanced security features, making it a top-tier solution for read-intensive data center applications.
