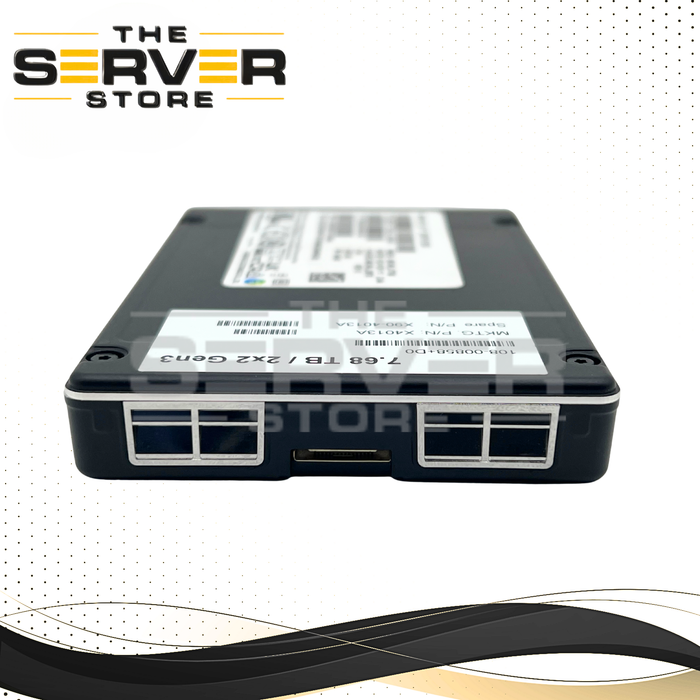

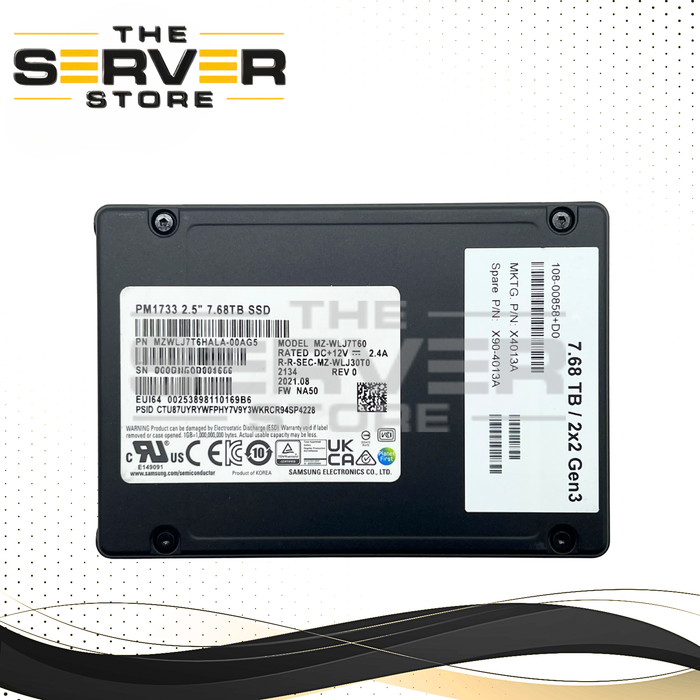

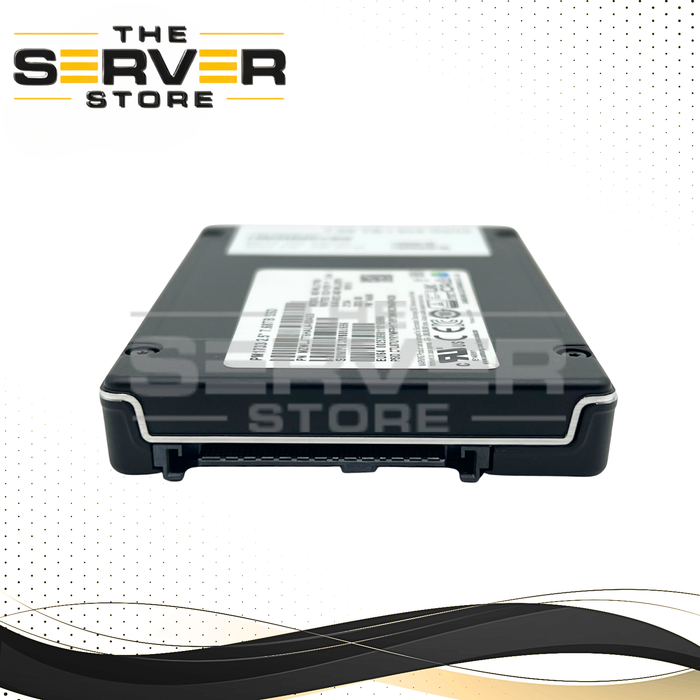

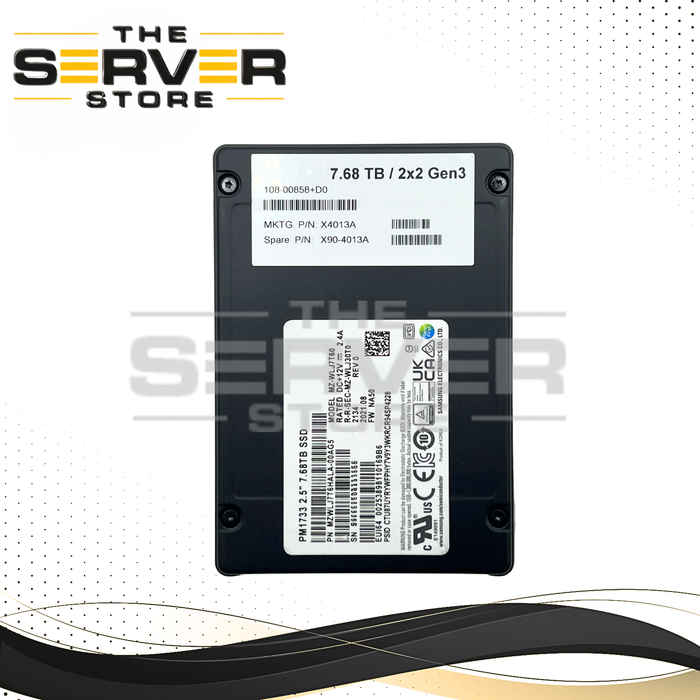

NetApp 7.68TB NVME U.2 PCIe Gen 4.0 x4 RI SFF 2.5" SSD Samsung PM1733 Series MZ-WLJ7T60 X4013A X90-4013A
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | X4013A / X90-4013A |
| Manufacturer | NetApp |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Solid State Drives (SSD) |
| Model | Samsung PM1733 Series |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
NetApp 7.68TB NVMe U.2 PCIe Gen4 x4 RI SFF 2.5" SSD Samsung PM1733 Series MZ-WLJ7T60 X4013A X90-4013A
The Samsung PM1733 (MZ-WLJ7T60), branded for NetApp under part number X4013A, is a high-performance 7.68TB enterprise NVMe SSD designed for read-intensive (RI) workloads. Built on PCIe Gen4 technology and Samsung’s advanced V-NAND architecture, it delivers exceptional throughput, reliability, and dual-port availability for mission-critical storage environments.
Related Part Numbers
X4013A, X90-4013A, 108-00858+D0, MZ-WLJ7T60, MZWLJ7T6HALA-00AG5
Core Technical Specifications
- Capacity: 7.68TB
- Interface: PCIe Gen4 x4 NVMe (backward compatible with Gen3)
- Form Factor: 2.5-inch U.2 (SFF-8639)
- Z-Height: 15mm
- NAND Type: Samsung V6 128-layer TLC V-NAND
Performance
- Sequential Read: Up to 7,000 MB/s
- Sequential Write: Up to 3,800 MB/s
- Random Read (4KB): Up to 1,450,000 IOPS
- Random Write (4KB): Up to 135,000 IOPS
Endurance & Reliability
- Workload Type: Read Intensive (RI)
- Endurance: 1 DWPD (Drive Write Per Day for 5 years)
- Enterprise Features: Designed for 24/7 continuous operation
- Fail-in-Place (FIP): Maintains operation even with NAND cell failure
Power Consumption
- Active: ~20W
- Idle: ~8.5W
Key Features
-
Dual-Port NVMe Support:
Enables high-availability (HA) configurations—critical for enterprise storage arrays where redundancy is required -
SR-IOV Virtualization Support:
Supports up to 64 virtual functions for scalable cloud and multi-tenant environments -
High Throughput Gen4 Performance:
Significantly faster than previous-generation PCIe Gen3 SSDs -
Enterprise Data Integrity:
Advanced error correction and firmware-level protections
Compatibility
- Platform Type: Enterprise storage arrays and NVMe-enabled servers
- Interface Requirement: U.2 NVMe backplane or PCIe Gen4 NVMe support
- Use Case: NetApp storage systems and other enterprise infrastructures requiring dual-port NVMe drives
Important Notes
- This is a U.2 (SFF-8639) NVMe SSD, not compatible with SAS/SATA-only systems
- Dual-port functionality is typically utilized in enterprise storage arrays (e.g., NetApp systems)
- Ensure system firmware and backplane support NVMe Gen4 for full performance
Summary
The NetApp X4013A / Samsung PM1733 7.68TB NVMe SSD is a powerful enterprise storage solution offering ultra-fast PCIe Gen4 performance, dual-port reliability, and robust endurance. It is ideal for high-availability storage systems, cloud infrastructure, and data-intensive applications where performance and uptime are critical.
