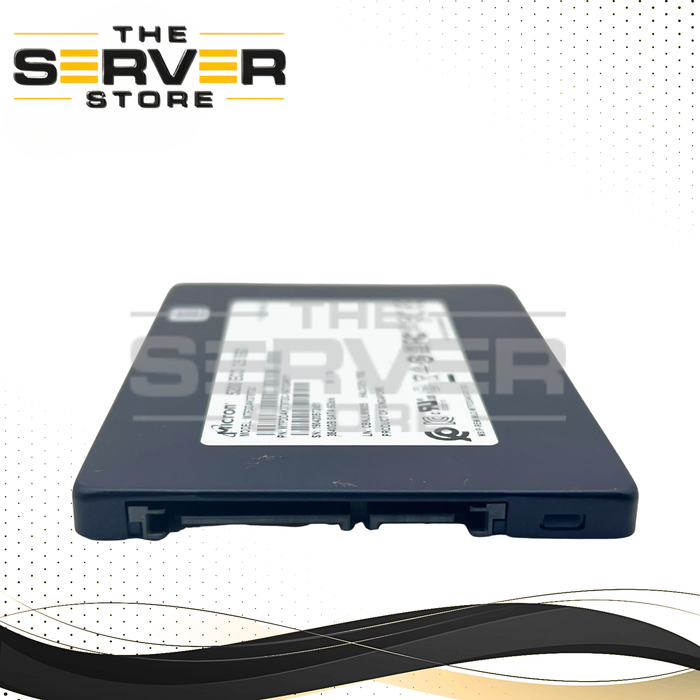

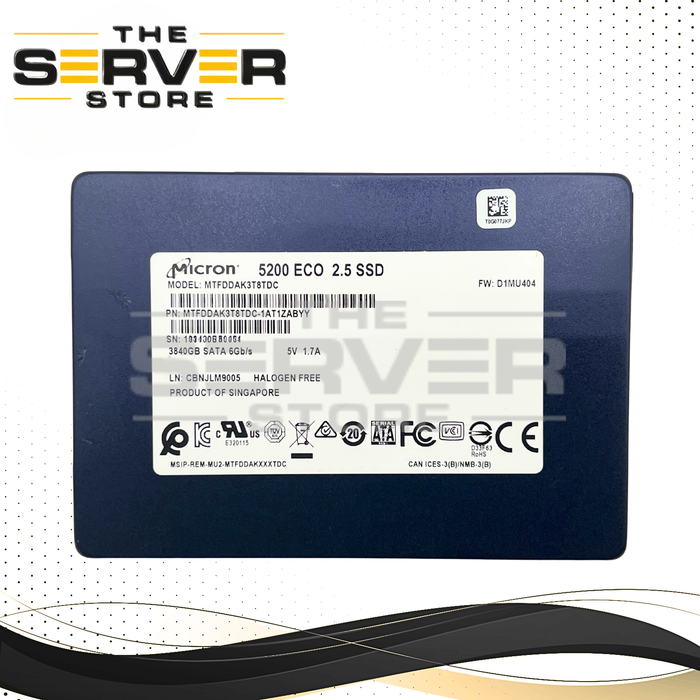

Micron 3.84TB SATA 6G RI SFF 2.5" SSD 5200 ECO Series MTFDDAK3T8TDC-1AT1ZABYY
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | MTFDDAK3T8TDC-1AT1ZABYY |
| Manufacturer | Micron |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Solid State DriveS (SSD) |
| Model | 5200 ECO (Standard) |
| Form Factor | 2.5-inch |
| Interface | SATA 6Gb/s |
| External Interfaces | |
| Storage Capacity | 3.84TB |
| Transfer Rate | 6 Gbps |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | SATA 6Gb/s |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Micron 3.84TB SATA 6G RI SFF 2.5" SSD 5200 ECO Series MTFDDAK3T8TDC-1AT1ZABYY
Other Related Part Number: MTFDDAK3T8TDC
Core Specifications & Performance
- Capacity: 3.84TB (3840GB)
- Form Factor: 2.5-inch SFF (7mm height)
- Interface: SATA III 6Gb/s
- NAND Type: Micron 64-layer 3D TLC NAND
- Workload Type: Read Intensive (RI)
Performance (Sustained):
- Sequential Read: Up to 540 MB/s
- Sequential Write: Up to 520 MB/s
- Random Read (4KB): Up to 95,000 IOPS
- Random Write (4KB): Up to 17,000 IOPS
- Latency: ~200 µs (Read) / ~500 µs (Write)
Reliability & Endurance
- Endurance (TBW): 7,700 TB (7.7 PB)
- Endurance (DWPD): 1.0 DWPD (5 years)
- MTBF: 3,000,000 hours
- UBER: <1 per 10¹⁷ bits read
Power & Environmental
- Active Power: 3.0W (Read) / 3.6W (Write)
- Idle Power: 1.5W
- Operating Temperature: 0°C to 70°C
- Shock Resistance: 1500G @ 0.5ms
Features
- Encryption: AES 256-bit hardware encryption
- Data Protection: Power Loss Protection (PLP) and end-to-end data path protection
- Compliance: TAA Compliant
Drive Tray / Carrier Compatibility (7mm SATA SSD)
This 3.84TB SATA SSD uses a standard 2.5″ SFF 7mm form factor and requires a manufacturer-specific tray/caddy depending on the server platform. It is designed for enterprise read-intensive workloads and broad compatibility across systems that support 2.5″ SATA drives.
Compatible Server Manufacturers & Models
Dell PowerEdge (12G / 13G / 14G / 15G)
R230, R240, R330, R340, R430, R440, R630, R640, R730, R730xd, R740, R740xd, R930, R940, T330, T340, T430, T440, T630, T640
HPE ProLiant (Gen8 / Gen9 / Gen10 / Gen10 Plus)
DL20, DL160, DL180, DL325, DL360, DL380, DL385, DL560, DL580, ML30, ML110, ML350
Lenovo ThinkSystem & System x
SR250, SR530, SR550, SR570, SR590, SR630, SR650, SR850, SR950, ST250, ST550, x3550 M4/M5, x3650 M4/M5
Cisco UCS Servers
C220 M4/M5, C240 M4/M5, C480 M5, B200 M4/M5
Supermicro Servers
SuperServer 1019, 1029, 2029, 5019, 6019 series, SYS-1029U, SYS-2029U, SYS-6029U, SYS-2029BT, SYS-6029TR
Fujitsu PRIMERGY
RX2530, RX2540 (M1–M5)
Important Compatibility Notes
- Supports any system with 2.5" 7mm SATA bays
- Requires manufacturer-specific tray/caddy (Dell, HPE, Cisco, etc.)
- Works with standard SATA 6Gb/s controllers (RAID or HBA)
- Fully compatible with enterprise RAID controllers such as:
- Dell PERC (H730 / H740 / H755)
- HPE Smart Array (P440 / P408i / P840)
- Broadcom / LSI MegaRAID (93xx / 94xx series)
