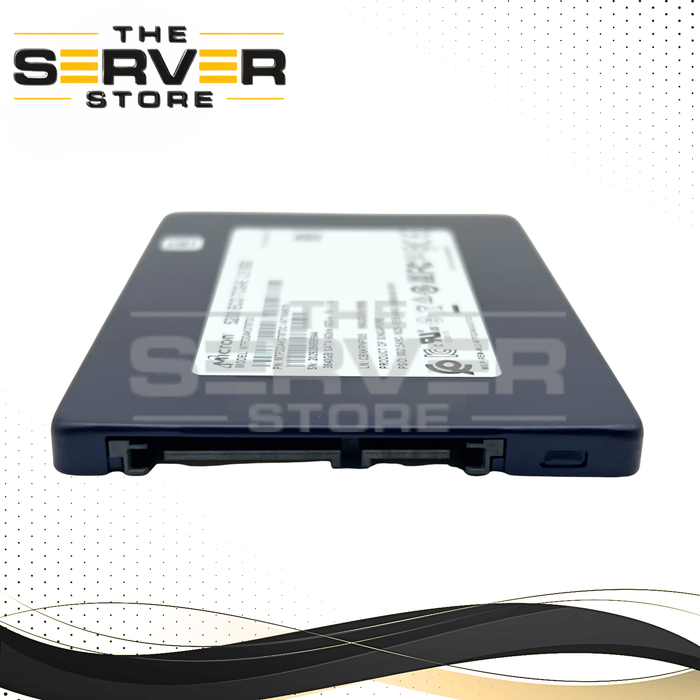

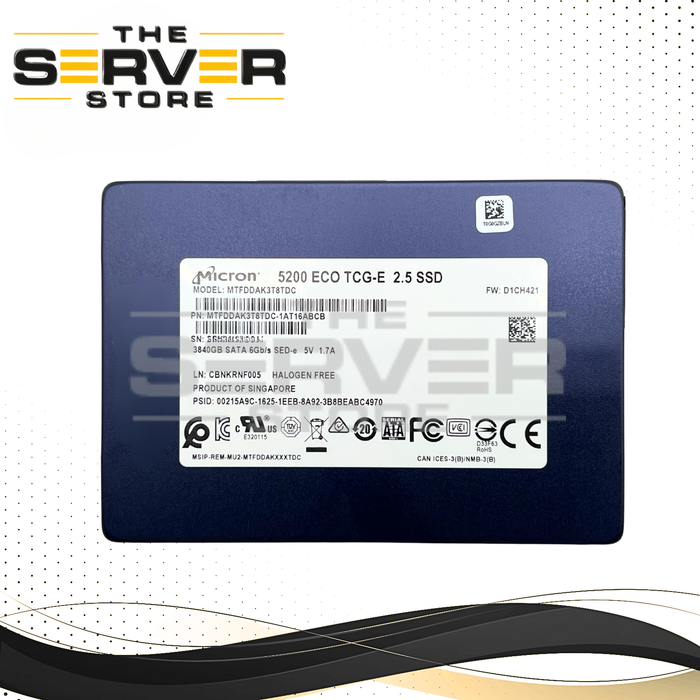

Micron 3.84TB SATA 6G RI 2.5" SED SSD 5200 ECO TCG-E Series MTFDDAK3T8TDC-1AT16ABCB
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | MTFDDAK3T8TDC-1AT16ABCB |
| Manufacturer | Micron |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Solid State Drives (SSD) |
| Model | 5200 ECO SED TCG-E Series |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Micron 3.84TB SATA 6G RI 2.5" SED SSD 5200 ECO TCG-E MTFDDAK3T8TDC-1AT16ABCB
Other Related Part Number: MTFDDAK3T8TDC
Core Specifications
- Capacity: 3.84TB (3840GB)
- Form Factor: 2.5-inch SFF (7mm height)
- Interface: SATA III 6Gb/s
- NAND Type: Micron 64-layer 3D TLC NAND
- Workload Type: Read Intensive (RI)
Performance (Sustained)
- Sequential Read: Up to 540 MB/s
- Sequential Write: Up to 520 MB/s
- Random Read (4KB): Up to 95,000 IOPS
- Random Write (4KB): Up to 17,000 IOPS
- Latency: ~200 µs (Read) / ~500 µs (Write)
Reliability & Endurance
- Endurance (TBW): 7,700 TB (7.7 PB)
- Endurance (DWPD): 1.0 DWPD (5 years)
- MTBF: 3,000,000 hours
- UBER: <1 per 10¹⁷ bits read
Power & Environmental
- Active Power: Up to 3.6W
- Idle Power: ~1.5W
- Operating Temperature: 0°C to 70°C
Security & Features (TCG-E SED)
- Security: Self-Encrypting Drive (SED) with full TCG Enterprise (TCG-E) support
- Encryption: AES 256-bit hardware-based encryption
- Advanced Key Management: Multiple encryption keys with enterprise control
- PSID Revert: Secure crypto-erase capability via PSID
- Data Protection: Power Loss Protection (PLP) and end-to-end data path protection
- Performance Impact: No performance loss with encryption enabled
Drive Tray / Carrier Compatibility (7mm SATA SSD)
This 3.84TB SATA SSD uses a standard 2.5″ SFF 7mm form factor and requires a manufacturer-specific tray/caddy depending on the server platform. It is designed for enterprise read-intensive workloads and secure environments requiring TCG Enterprise encryption.
Compatible Server Manufacturers & Models
Dell PowerEdge (13G / 14G / 15G)
R640, R740, R740xd, R940, T640
HPE ProLiant (Gen9 / Gen10 / Gen10 Plus)
DL360 Gen10, DL380 Gen10, ML350 Gen10
Lenovo ThinkSystem
SR630, SR650, ST550
Cisco UCS Servers
C220 M5, C240 M5
Supermicro Servers
All SuperServer systems with 2.5" SATA hot-swap bays
RAID Controller Compatibility (for TCG Enterprise Features)
- Dell PERC: H730P, H740P, H755
- HPE Smart Array: P408i-a, P440
- Broadcom / LSI MegaRAID: 9361-8i, 9460-8i (93xx / 94xx series)
Important Compatibility Notes
- Requires a 2.5" SATA (7mm or 15mm bay compatible)
- Must use server-specific tray/caddy (Dell, HPE, Cisco, etc.)
- TCG Enterprise features require controller/software support
- Backward compatible with SATA 3Gb/s systems
This model is part of the Micron 5200 ECO TCG-E Series, designed for enterprise environments that require high-capacity, read-intensive performance with advanced hardware-based encryption and security management.
