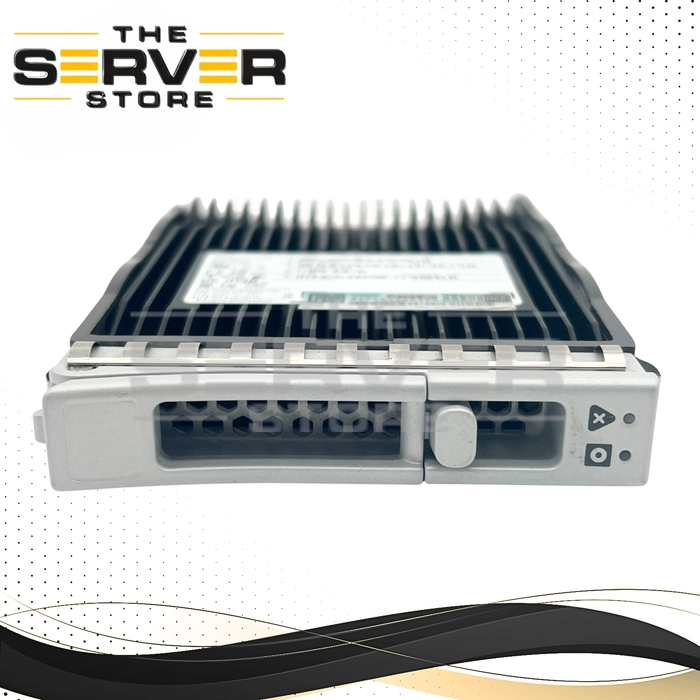

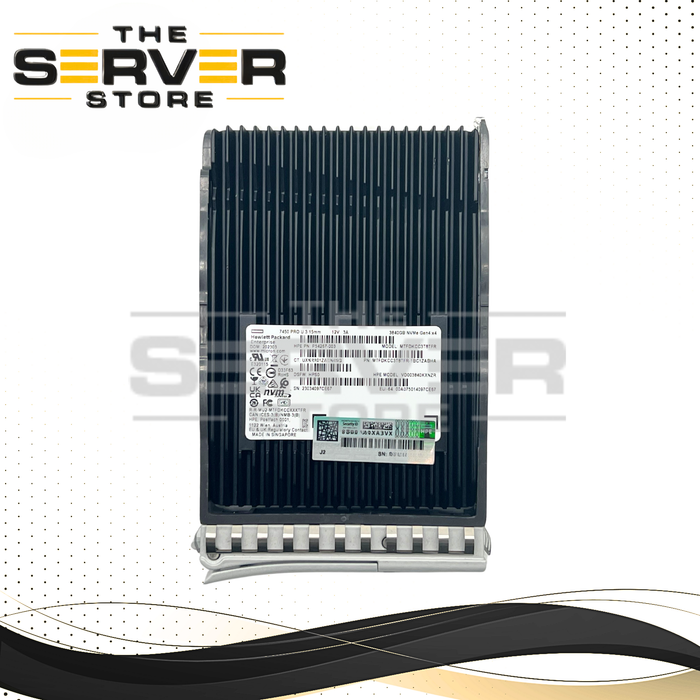

Micron 3.84TB NVMe U.3 G4 x4 RI 2.5" TCG Opal SSD 7450 Pro Series MTFDKCC3T8TFR for Cisco UCS C-Series Server
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | MTFDKCC3T8TFR (With Cisco UCS Tray) |
| Manufacturer | |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Solid State Drives (SSD) |
| Model | Micron 7450 Pro Series (Read Description) |
| Form Factor | with Cisco USC 2.5" Tray |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Micron 3.84TB NVMe U.3 PCIe Gen4 x4 RI SFF 2.5" 15mm TCG Opal SSD 7450 Pro Series MTFDKCC3T8TFR for Cisco UCS C-Series Server with Tray
The Micron 7450 Pro 3.84TB NVMe U.3 SSD (MTFDKCC3T8TFR) is an enterprise-grade, read-intensive (RI) solid-state drive engineered for high-performance data center and server environments. Built on PCIe Gen4 x4 NVMe architecture, it delivers low latency, high throughput, and strong endurance, making it ideal for cloud computing, virtualization, databases, and content delivery workloads.
Core Specifications
- Capacity: 3.84TB
- Interface: PCIe Gen4 x4, NVMe 1.4
- Form Factor: 2.5" SFF, 15mm height
- Connector: U.3 (backward compatible with U.2)
- NAND Type: 176-layer 3D TLC NAND
- Workload Type: Read Intensive (RI)
- Security: TCG Opal 2.01 Self-Encrypting Drive (SED)
Performance
- Sequential Read: Up to ~6,800 MB/s
- Sequential Write: Up to ~3,600 MB/s
- Random Read (4K): Up to ~1,000,000 IOPS
- Random Write (4K): Up to ~180,000 IOPS
- Latency: Ultra-low latency optimized for enterprise workloads
Endurance & Reliability
- Endurance: ~1 DWPD (Drive Writes Per Day)
- MTBF: 2.5 million hours
- Power Loss Protection: Yes
- Data Integrity: End-to-end data path protection
Cisco UCS Compatibility
This SSD is compatible with Cisco UCS C-Series servers that support NVMe U.2/U.3 drives when used with the appropriate Cisco 2.5" SFF tray:
- UCS M7 / M8 (Gen4/Gen5 full performance): C220 M7, C240 M7, C225 M7, C245 M7
- UCS M6 (Gen4 full performance): C220 M6, C240 M6, C225 M6, C245 M6
- UCS M5 (Gen3 – limited speed): C220 M5, C240 M5, C480 M5
Important Installation Notes
- Requires NVMe-enabled backplane for proper operation
- Must be installed in a Cisco-compatible 2.5" SFF drive tray
- Performance will be limited to PCIe Gen3 speeds in older M5 systems
- Cisco management tools may display the drive as non-Cisco firmware, but functionality remains unaffected
This Micron 7450 Pro SSD provides a strong balance of performance, endurance, and security, making it a reliable storage solution for modern Cisco UCS server infrastructures.
