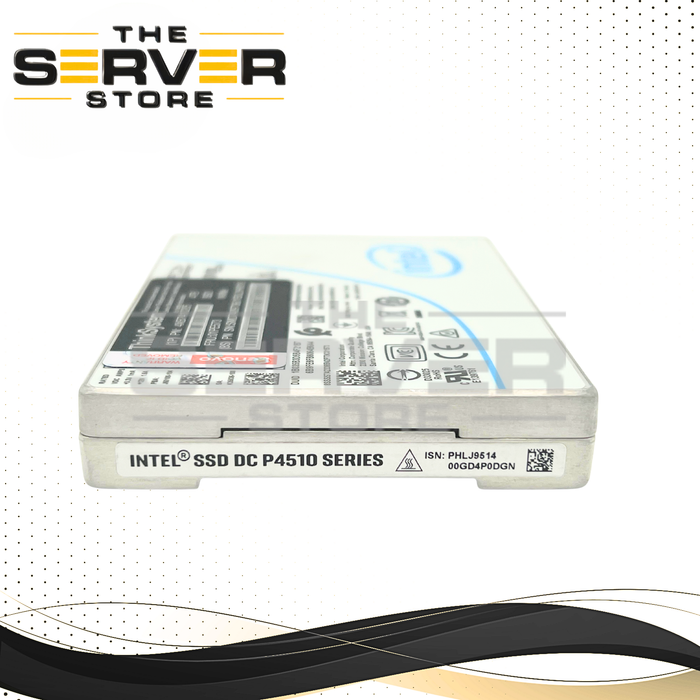

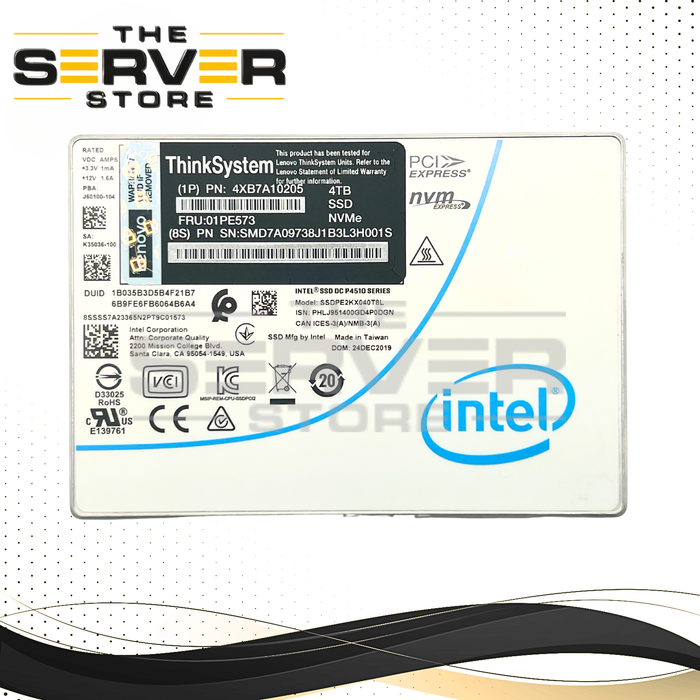

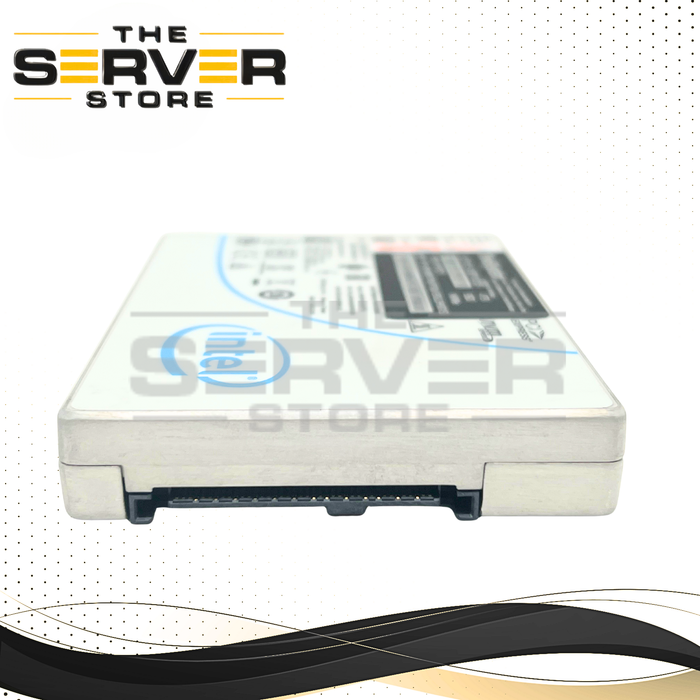

Lenovo 4TB NVMe U.2 PCIe Gen 3.0 x4 2.5" SSD Intel P4510 SSDPE2KX040T8L 01PE573 4XB7A10205
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | 01PE573 4XB7A10205 |
| Manufacturer | Lenovo Intel |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Solid State Drives (SSD) |
| Model | SSDPE2KX040T8L |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Lenovo 4TB NVMe U.2 G3 x4 2.5" SSD Intel P4510 SSDPE2KX040T8L 01PE573 4XB7A10205
The Lenovo ThinkSystem Intel P4510 4TB (Part Numbers: 01PE573 / 4XB7A10205 / SSDPE2KX040T8L) is a high-performance enterprise NVMe SSD designed for read-intensive data center workloads. Built with Intel 64-layer 3D TLC NAND technology and leveraging a PCIe 3.0 x4 interface, this drive delivers exceptional throughput, low latency, and enterprise-grade reliability for modern server environments.
Optimized for Lenovo ThinkSystem platforms, the P4510 4TB model provides a balance of strong sequential speeds, high random IOPS, and long-term endurance suitable for cloud infrastructure, virtualization, analytics, and content delivery applications.
Core Performance
-
Capacity: 4TB
-
Interface: PCIe 3.1 x4, NVMe 1.2
-
Form Factor: 2.5" U.2 (15mm height)
Performance Metrics
-
Sequential Read: Up to 3,000 MB/s
-
Sequential Write: Up to 2,900 MB/s
-
Random Read (4KB): Up to 636,500 IOPS
-
Random Write (4KB): Up to 111,500 IOPS
-
Typical Read Latency: 9–10 µs
-
Typical Write Latency: 11–13 µs
Reliability & Endurance
-
Endurance Rating: 0.85 Drive Writes Per Day (DWPD) for 5 years
-
Total Bytes Written (TBW): Approximately 6.3–6.45 PB
-
MTBF: 2,000,000 hours
-
Data Protection Features:
-
Enhanced Power Loss Data Protection (PLP)
-
End-to-End Data Path Protection
-
Designed for consistent enterprise reliability with safeguards against data corruption and unexpected power events.
Physical & Electrical Specifications
-
Form Factor: 2.5-inch U.2 (15mm Z-height)
-
Interface Protocol: NVMe over PCIe 3.0 x4
-
Idle Power Consumption: ~5W
-
Active Write Power: Up to 20.5W–21.5W
-
Security: 256-bit AES Hardware Encryption
-
TCG Opal 2.0: Supported on select variants
Related Part Numbers
-
SSDPE2KX040T8L
-
01PE573
-
4XB7A10205
The Lenovo ThinkSystem Intel P4510 4TB NVMe SSD delivers enterprise-class performance, low latency, and strong endurance, making it an excellent solution for high-throughput, read-optimized data center storage deployments.
