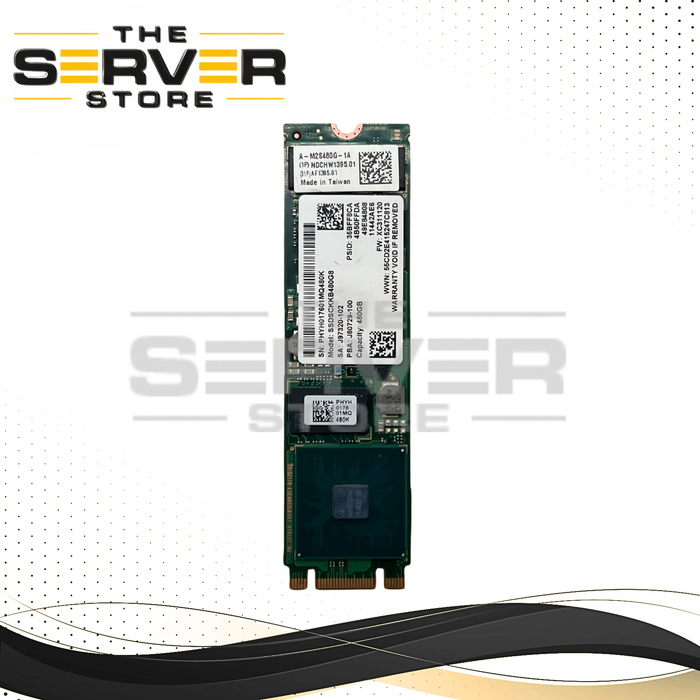

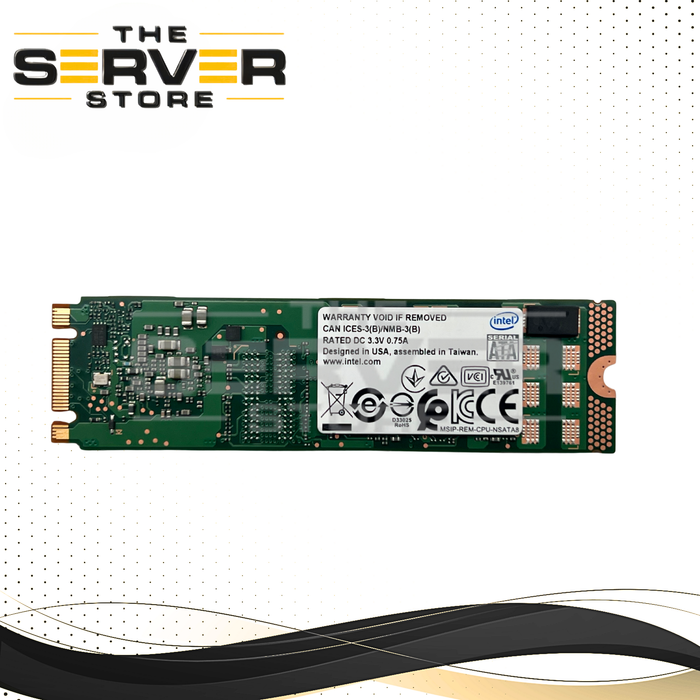

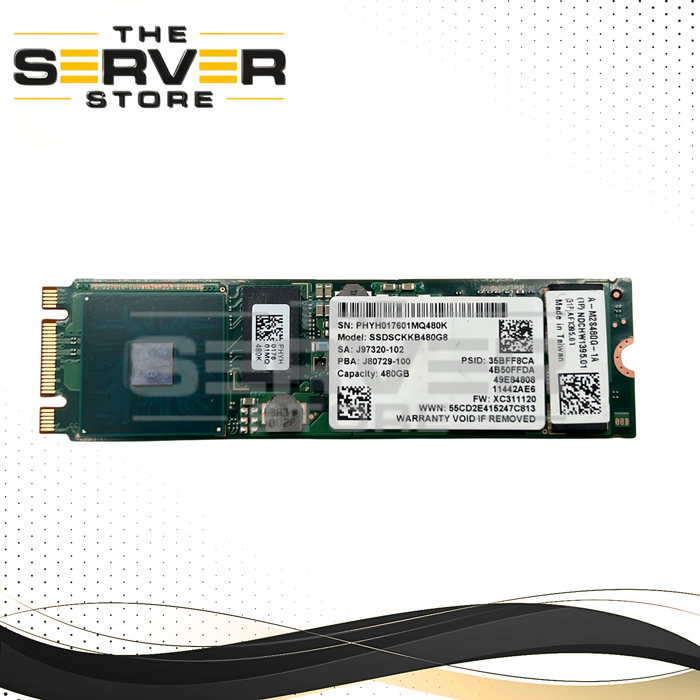

Intel 480GB SATA 6G 2280 M.2 SSD D3-S4510 Series SSDSCKKB480G8
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | SSDSCKKB480G8 |
| Manufacturer | Intel |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Solid State Drives (SSD) |
| Model | |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Intel 480GB SATA 6G 2280 M.2 SSD D3-S4510 Series – SSDSCKKB480G8
The Intel 480GB SATA 6G 2280 M.2 SSD D3-S4510 Series (SSDSCKKB480G8) is a read-intensive, enterprise-class solid-state drive built for server and workstation environments.
Designed with 3D TLC NAND flash memory and a SATA 6Gb/s interface, the D3-S4510 delivers consistent performance, strong endurance, and advanced data protection features ideal for business-critical applications.
Key Specifications
| Attribute | Detail |
|---|---|
| Capacity | 480GB |
| Form Factor | M.2 2280 (22mm x 80mm) |
| Interface | SATA 6Gb/s (SATA III) |
| NAND Flash Type | 3D Triple-Level Cell (TLC) |
| Sequential Read | Up to 555–560 MB/s |
| Sequential Write | Up to 275–480 MB/s |
| Random Read (4KB) | Up to 91,000 IOPS |
| Random Write (4KB) | Up to 18,000 IOPS |
| Endurance | Up to 2 DWPD or 1.5 PBW |
| MTBF | 2 Million Hours |
| Encryption | Hardware-based AES 256-bit |
| Active Power | Up to 3.0W |
| Idle Power | Up to 1.0W |
| Shock Rating | 1000G / 0.5ms (operating & non-operating) |
| Vibration (Non-Operating) | 3.13G |
Key Enterprise Features
-
Enhanced Power Loss Data Protection
-
End-to-End Data Protection
-
Temperature Monitoring & Logging
-
Optimized for read-intensive workloads
-
Enterprise reliability and firmware stability
Ideal For
-
Data center boot drives
-
Virtualization environments
-
Cloud infrastructure
-
Enterprise read-heavy applications
-
Workstations requiring consistent SATA performance
⚠ Please confirm your system supports M.2 SATA (not NVMe) before purchasing, as this drive uses the SATA interface despite the M.2 form factor.
