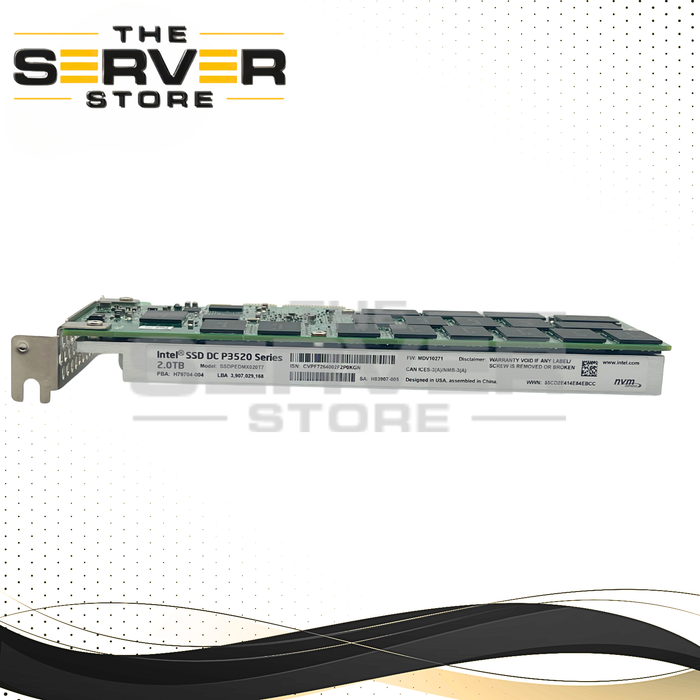

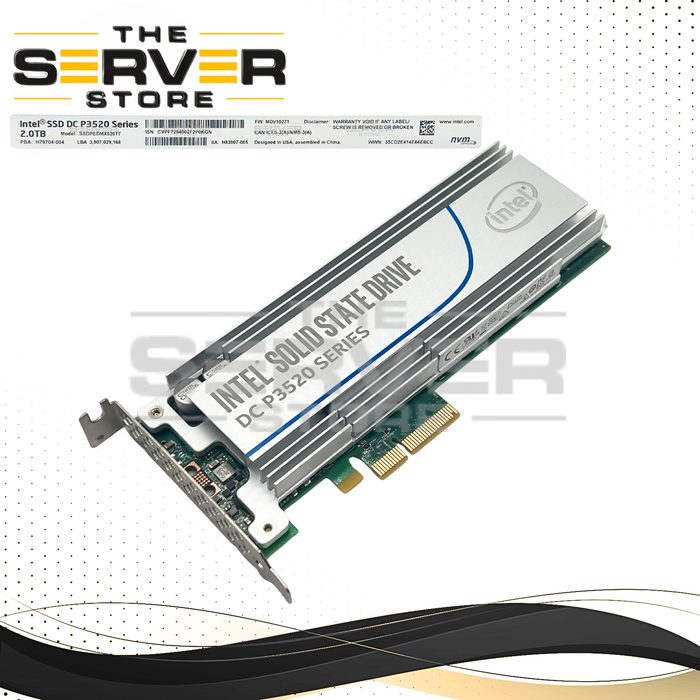

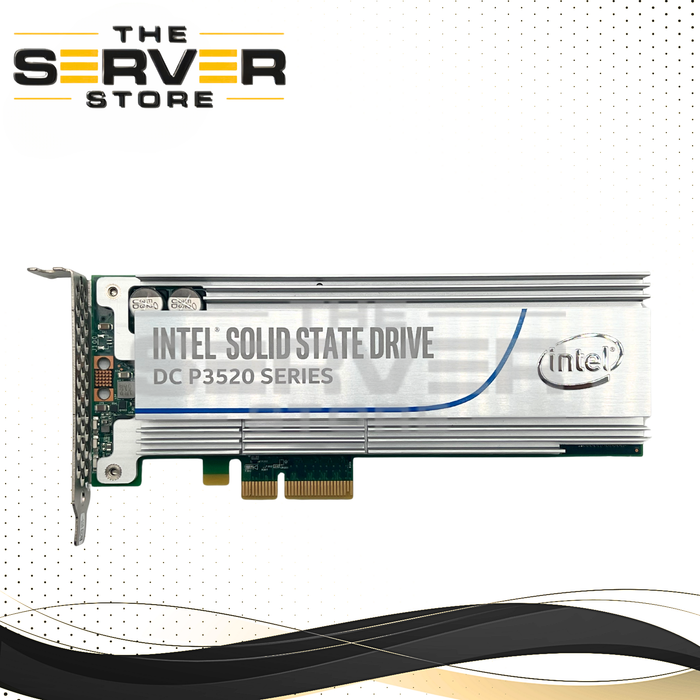

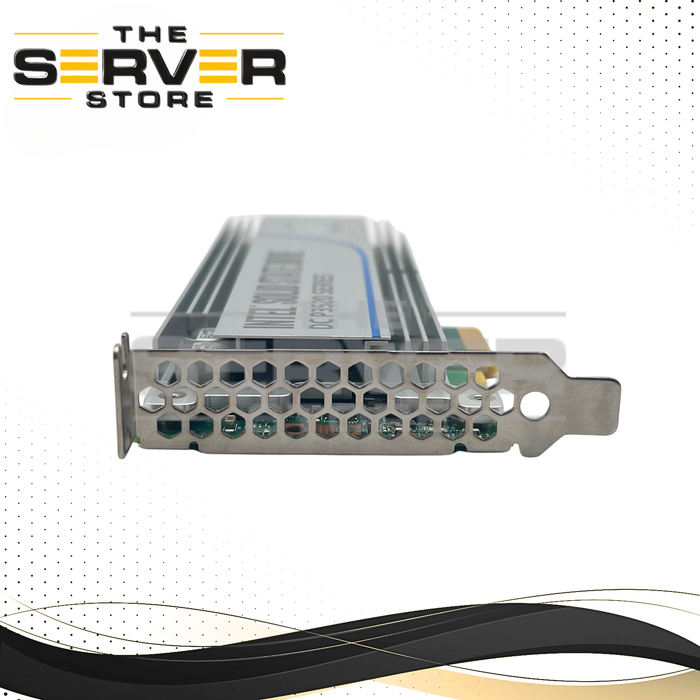

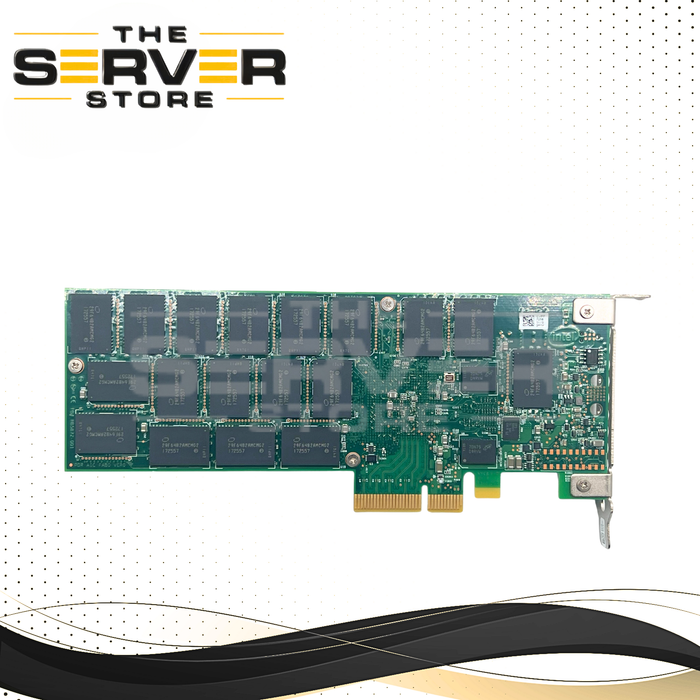

Intel 2TB NVMe HHHL PCIe Gen 3.0 x4 Add-in Card SSD DC P3520 Series SSDPEDMX020T7
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | SSDPEDMX020T7 |
| Manufacturer | Intel |
| Condition | (90%+ Health) Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Solid State Drives (SSD) |
| Model | DC P3520 Series (Read Description) |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Intel 2TB NVMe HHHL PCIe Gen3 x4 Add-in Card SSD DC P3520 Series SSDPEDMX020T7
The Intel DC P3520 Series (SSDPEDMX020T7) is a 2TB enterprise-grade NVMe solid-state drive designed in a Half-Height, Half-Length (HHHL) PCIe add-in card form factor. Built with Intel’s reliable 3D MLC NAND, it delivers consistent performance, low latency, and strong endurance for data center and read-intensive workloads.
Related Part Numbers
SSDPEDMX020T7, SSDPEDMX020T701, H79704-004
Core Specifications
- Capacity: 2TB
- Series: Intel DC P3520
- Form Factor: HHHL (Half-Height, Half-Length) Add-in Card
- Interface: PCIe Gen3 x4 (NVMe)
- NAND Type: 3D MLC NAND
Performance
- Sequential Read: Up to 1,700 MB/s
- Sequential Write: Up to 1,350 MB/s
- Random Read (4KB): Up to 375,000 IOPS
- Random Write (4KB): Up to 26,000 IOPS
- Latency: ~20µs Read / ~30µs Write
Reliability & Endurance
- Endurance (TBW): ~2,490 TBW
- MTBF: 2,000,000 hours
- UBER: Enterprise-grade data integrity
- Workload Type: Read Intensive / Mixed enterprise workloads
Advanced Features
- Hardware Encryption: 256-bit AES
- Power Loss Protection: Safeguards in-flight data during unexpected outages
- End-to-End Data Protection: Ensures data integrity across the entire data path
- Thermal Monitoring: Built-in temperature tracking and logging
Power & Environmental
-
Power Consumption:
- Idle: ~4W
- Active Read: ~10W
- Active Write: ~12W
- Operating Temperature: 0°C to 35°C
Compatibility
- Physical Requirement: PCIe x4, x8, or x16 slot (HHHL compatible bracket)
- Interface: PCIe Gen3 (backward/forward compatible with Gen4/Gen5 slots at Gen3 speeds)
- Protocol: NVMe
Enterprise Server Compatibility
- Dell PowerEdge (12th Gen and newer): R620, R720, R630, R730, R640, R740
- HPE ProLiant (Gen8 / Gen9 / Gen10): DL360, DL380
- Lenovo ThinkSystem: SR630, SR650
- Intel Server Boards: Validated on platforms like S2600 series
Desktop & Workstation Compatibility
- Works in most modern systems with NVMe support:
- Intel Chipsets: Z170 → Z790 / newer
- AMD Platforms: X370 → X670E / newer
- Workstations: Dell Precision, HP Z-series
Operating System Support
- Windows: Windows 10/11, Windows Server (2012 R2+)
- Linux: RHEL, Ubuntu, SLES, CentOS
- Virtualization: VMware ESXi (5.5+), XenServer
Important Notes
- Requires UEFI 2.3.1+ for boot support
- In some older servers (e.g., Dell R720), booting may require specific NVMe configurations
- Occupies a PCIe slot instead of a front drive bay
Summary
The Intel DC P3520 2TB HHHL NVMe SSD (SSDPEDMX020T7) is a dependable enterprise storage solution offering solid PCIe Gen3 performance, strong endurance, and broad compatibility. Its add-in card design makes it ideal for servers and workstations needing high-speed NVMe storage without relying on traditional drive bays.
