Intel 15.36TB NVMe U.2 PCIe Gen3.0 x4 RI 2.5" SSD D5-P4326 Series Lenovo ThinkSystem Server SSDPE2NV153T8
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | SSDPE2NV153T8 (With Lenovo ThinkSystem Server Tray) |
| Manufacturer | Intel |
| Condition | (90%+ Health), Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Solid State Drives (SSD) |
| Model | D5-P4326 Series (Read Description) |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |

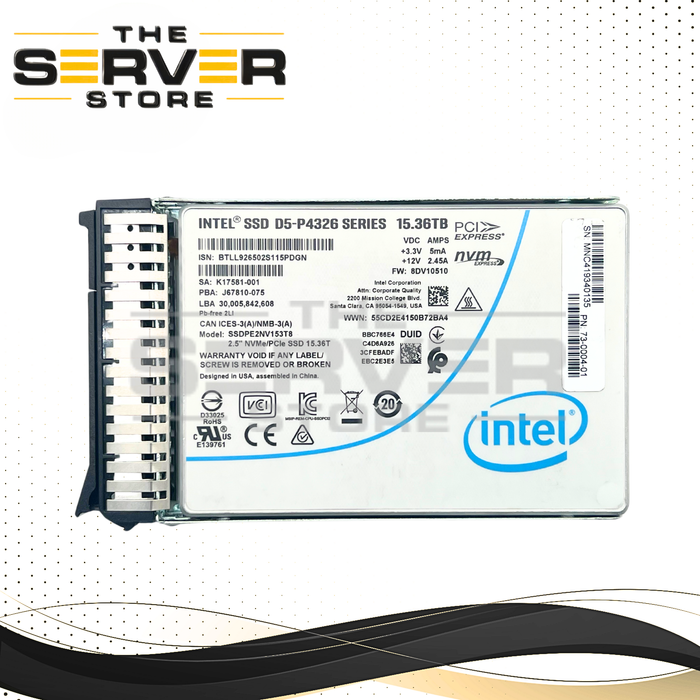

Intel 15.36TB NVMe U.2 PCIe Gen3.0 x4 Read Intensive (RI) 2.5" SSD D5-P4326 Series SSDPE2NV153T8 for Lenovo ThinkSystem Server
The Intel D5-P4326 Series (Model: SSDPE2NV153T8) is a high-capacity, enterprise-grade NVMe solid-state drive designed for read-intensive workloads. Built with 64-layer QLC 3D NAND, it provides excellent storage density and efficiency in a 2.5-inch U.2 (SFF-8639) form factor, making it a strong fit for Lenovo ThinkSystem and ThinkServer platforms with NVMe support.
Related Part Numbers
SSDPE2NV153T8, SSDPE2NV153T801, J67810-075, 73-0004-01
Lenovo Tray PN:
SM17A06246
Key Technical Specifications
- Capacity: 15.36TB
- Interface: PCIe 3.0 x4 (NVMe)
- Form Factor: 2.5" U.2 (SFF-8639), 15mm
- NAND Type: 64-Layer QLC 3D NAND
- Sequential Read: Up to 3,200 MB/s
- Sequential Write: Up to 1,600 MB/s
- Random Read (4KB): Up to 580,000 IOPS
- Random Write: Up to 15,000 IOPS
- Read Latency: 135 µs
- Write Latency: 60 µs
Reliability & Endurance
-
Endurance:
- Up to 24.6 PBW (Sequential)
- Up to 5 PBW (Random)
- MTBF: 2 million hours
- Power Loss Protection: Yes (Enhanced PLI)
- Data Protection: End-to-End Data Protection
Power & Environmental
- Active Power: ~20W
- Idle Power: ~5W
- Operating Temperature: 0°C to 70°C
Lenovo ThinkSystem Compatibility
This SSD is compatible with Lenovo systems that support U.2 NVMe drives over PCIe x4 and are configured with AnyBay or NVMe-enabled backplanes.
Rack Servers (Mainstream)
-
SR650 / SR650 V2 / SR650 V3
- Up to 24 NVMe drives in NVMe-rich configurations
-
SR630 / SR630 V2 / SR630 V3
- Multiple NVMe drives supported via NVMe backplanes
-
SR530, SR550, SR570, SR590
- Supported with 8-bay or 10-bay AnyBay/NVMe configurations
Mission-Critical & High-Density
-
SR850 / SR850 V2 / SR850 V3
- High-density 4-socket systems with NVMe front bays
-
SR950
- Supports up to 12 NVMe drives in storage-rich configurations
-
SD530 (D2 Enclosure)
- Modular nodes supporting NVMe configurations
Tower Servers
-
ST550 / ST650 V2 / ST650 V3
- Supports NVMe storage for enterprise and edge deployments
Blade & Edge Systems
-
SN550 / SN850
- Requires mezzanine storage modules for NVMe support

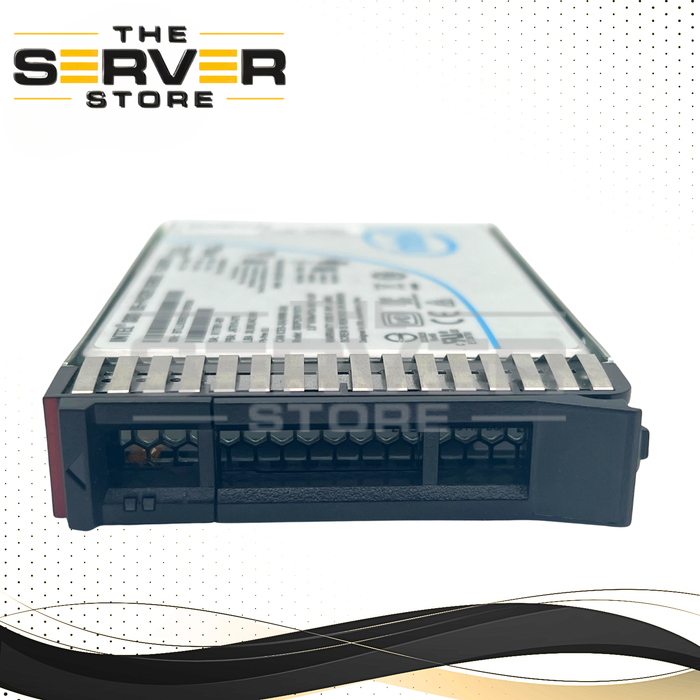

Supported NVMe Tray (Lenovo)
-
SM17A06246
- Standard 2.5-inch NVMe/SAS/SATA tray
- Compatible with most ThinkSystem platforms (SR650, SR630, etc.)
Important Notes
- Requires NVMe-enabled backplane or AnyBay configuration
- Standard SAS/SATA-only backplanes will NOT recognize this drive
- NVMe enablement kits or switch adapters may be required if not factory configured
- Compatible with PCIe Gen4/Gen5 systems (operates at Gen3 speeds)
Workload Suitability
Optimized for read-intensive applications, including:
- Data lakes and analytics
- Content delivery networks (CDN)
- Warm storage tiers
- Read-heavy databases
Summary
The Intel D5-P4326 15.36TB NVMe SSD (SSDPE2NV153T8) is a high-density, cost-effective storage solution for Lenovo ThinkSystem environments. When deployed with the proper NVMe backplane and SM17A06246 tray, it delivers reliable performance and scalability for enterprise read-heavy workloads.
