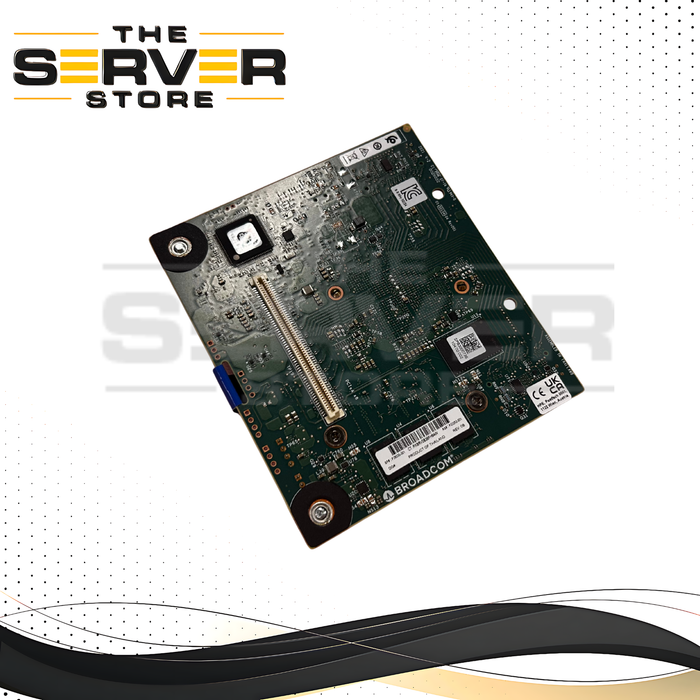

HPE MegaRAID MR416i-a Gen10 + x16 4GB Cache NVMe/SAS 12G Controller P28335-001
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | P28335-001 |
| Manufacturer | HP |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Storage Components |
| Model | |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
HPE MegaRAID MR416i-a Gen10 Plus x16 Lanes 4GB Cache NVMe/SAS 12G Controller
P26279-B21 | P28335-001 | P22252-001
The HPE MegaRAID MR416i-a Gen10 Plus RAID Controller is an enterprise-grade tri-mode storage adapter engineered for HPE ProLiant Gen10 Plus and Gen11 servers. Designed around Broadcom MegaRAID technology, this high-performance controller delivers exceptional flexibility by supporting NVMe, SAS, and SATA drives simultaneously within the same storage infrastructure.
Identified by HPE option part number P26279-B21 and spare part numbers P28335-001 and P22252-001, the MR416i-a features PCIe Gen4 connectivity, 16 internal tri-mode lanes, and 4GB Flash-Backed Write Cache (FBWC) for maximum throughput, low latency, and enterprise-class data protection.
Core Technical Specifications
-
Model: Broadcom MegaRAID MR416i-a Gen10 Plus
-
Device Type: Type-A Modular Tri-Mode RAID Controller
-
Host Interface: PCI Express Gen4 x8
-
Internal Lanes: 16 tri-mode lanes (NVMe / SAS / SATA)
-
Storage Interfaces:
-
12Gb/s SAS
-
6Gb/s SATA
-
PCIe Gen4 NVMe
-
-
Cache Memory: 4GB Flash-Backed Write Cache (FBWC)
-
RAID Levels Supported: 0, 1, 5, 6, 10, 50, 60
-
Drive Support: Up to 240 devices (platform-dependent; typically 16 direct-attached drives per modular bay)
Compatibility & Management
-
Compatible Servers:
HPE ProLiant Gen10 Plus & Gen11 systems, including DL20, DL325, DL345, DL360, DL380 -
Operating System Support:
Windows Server, VMware ESXi, RHEL, SLES, Ubuntu, CentOS -
Management Tools:
MegaRAID Storage Administrator, StorCLI, HII (UEFI), Redfish
Physical Characteristics
-
Form Factor: Type-A Modular Controller (motherboard-mounted)
-
Connectors: 2 × SlimSAS SFF-8654 (74-pin)
-
Dimensions: 4.405 in × 0.78 in × 5.91 in (11.2 × 1.98 × 15 cm)
-
Weight: ~0.284 lbs (0.129 kg)
Advanced Features & Benefits
-
Tri-Mode SerDes – Seamlessly mix NVMe, SAS, and SATA drives in the same backplane
-
FastPath Acceleration – Reduced I/O latency for SSD-based workloads
-
Enterprise Data Protection – Hardware RAID with write-back cache protection
-
PCIe Gen4 Performance – Optimized for high-bandwidth NVMe storage
-
OEM HPE Firmware – Fully integrated with HPE server management tools
Ideal Use Cases
-
Virtualized environments and private clouds
-
NVMe-accelerated databases
-
Software-defined storage (SDS)
-
High-availability enterprise workloads
-
HPE ProLiant Gen10 Plus & Gen11 servers
The HPE MegaRAID MR416i-a Gen10 Plus RAID Controller (P26279-B21 / P28335-001 / P22252-001) delivers maximum storage flexibility, enterprise-level reliability, and cutting-edge NVMe performance, making it an ideal choice for modern HPE data center deployments.
