HPE 480GB SATA 6G 2280 M.2 RI SSD Micron 5300 PRO Series P19890-B21 P27212-001 P20608-002
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | P19890-B21 / P27212-001 / P20608-002 |
| Manufacturer | HPE |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Solid State Drives (SSD) |
| Model | MR000480GXBGH / MTFDDAV480TDS |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |

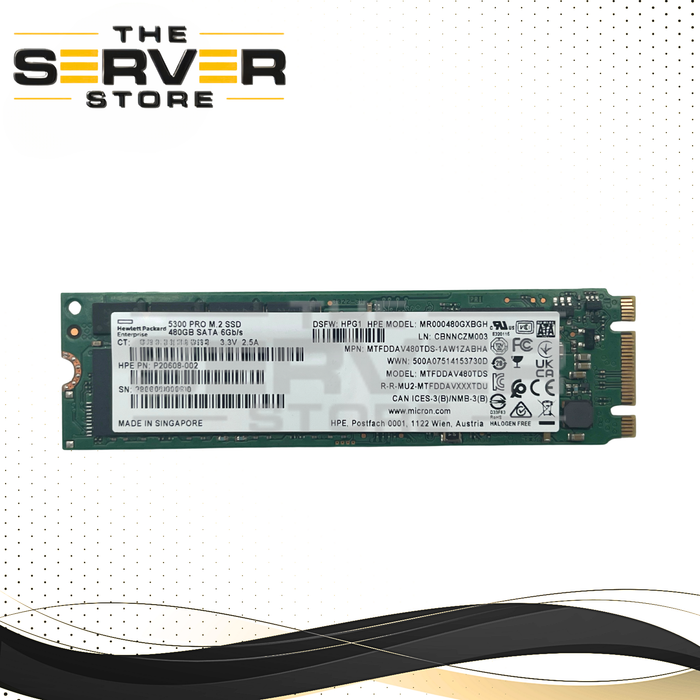

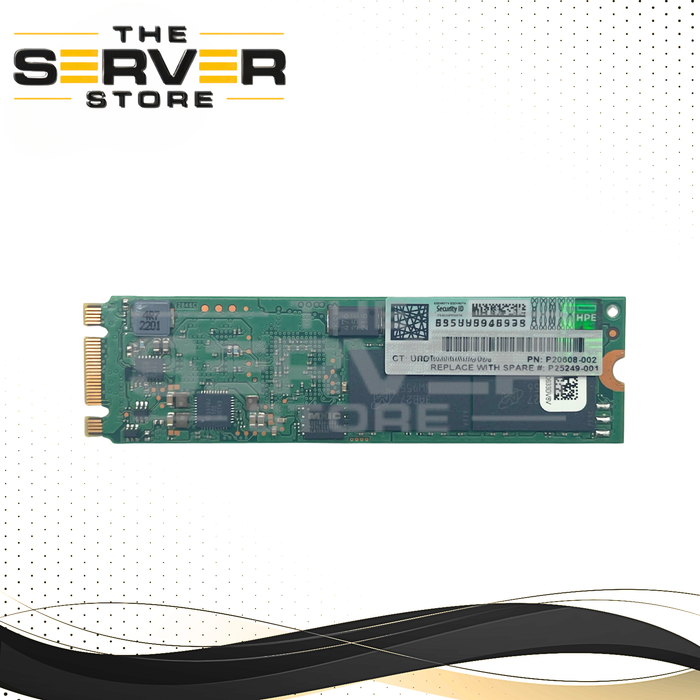

HPE 480GB SATA 6G 2280 M.2 RI SSD Micron 5300 PRO Series P19890-B21 P27212-001
The HPE 480GB SATA 6G Read Intensive M.2 2280 SSD (Option Part: P19890-B21, Spare Part: P27212-001) is an enterprise-class solid-state drive designed for read-heavy workloads such as boot drives, web hosting, and caching. Built on the Micron 5300 PRO series architecture, this SSD delivers reliability, efficiency, and consistent performance in HPE ProLiant environments.
Core Specifications
Capacity: 480GB
Form Factor: M.2 2280
Interface: SATA 6Gb/s
NAND Type: 96-layer 3D TLC (Triple-Level Cell)
Workload Type: Read Intensive (RI)
Plug Type: Hot-pluggable (when used with supported carriers)
Performance Metrics
Sequential Read: Up to 510 MB/s
Sequential Write: Up to 400 MB/s
Random Read (4KiB, Q16): 65,000 IOPS
Random Write (4KiB, Q16): 38,000 IOPS
Max Random Read: Up to 76,000 IOPS
Max Random Write: Up to 39,500 IOPS
Latency: ~125 µs (Read) / ~37 µs (Write)
Reliability & Endurance
Endurance: ~1.5 DWPD
Lifetime Writes: ~1,324 TBW
MTBF: 3,000,000 hours
Security: Digitally Signed Firmware (DS) for data protection and integrity
Physical & Power
Power Consumption:
Idle: ~1.03W
Read: ~1.89W
Write: ~2.50W
Operating Temperature: 0°C to 70°C
Dimensions (with carrier): 10.8 x 15.88 x 3.76 cm
Weight: ~0.5 kg (with carrier)
Compatibility
This SSD is primarily designed for HPE ProLiant Gen10 servers and enterprise platforms:
ProLiant DL Series (Rack Servers):
DL20, DL160, DL180, DL325, DL360, DL380, DL385, DL388, DL560, DL580
ProLiant ML Series (Tower Servers):
ML350 Gen10
HPE Synergy:
Synergy 480 Gen10 Compute Module
Carrier / Tray Compatibility:
This SSD can be installed using the following HPE carriers:
P25249-001
P19896-B21 (SFF SCM tray)
Direct & Related Part Numbers
Primary HPE Parts:
P19890-B21 (Option Part Number)
P27212-001 (Spare Part Number)
Assembly / Model Numbers:
MR000480GXBGH
MTFDDAV480TDS
MTFDDAK480TDS-1AW1ZABHA
Functional Equivalent Parts:
P48123-001
P47818-B21
The HPE 480GB M.2 SATA RI SSD delivers dependable enterprise performance, strong endurance, and seamless integration with HPE Gen10 server platforms, making it an excellent solution for boot optimization and read-intensive workloads.
