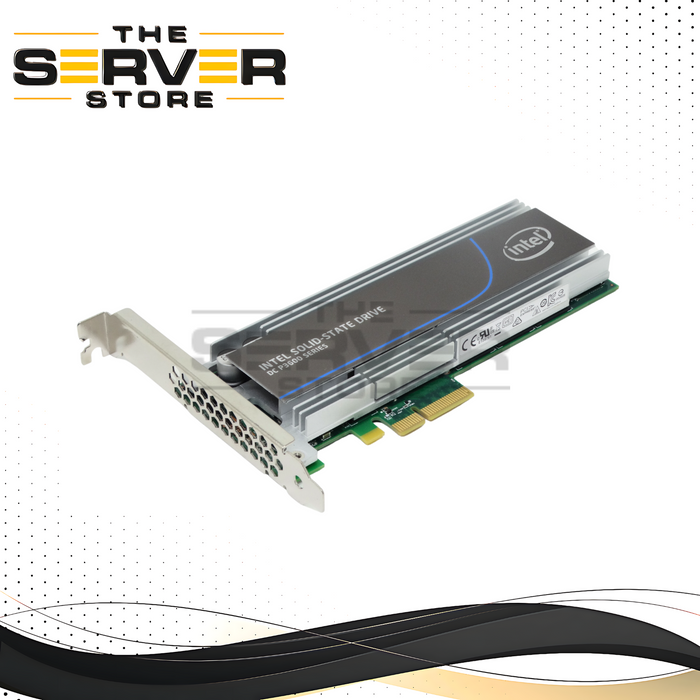

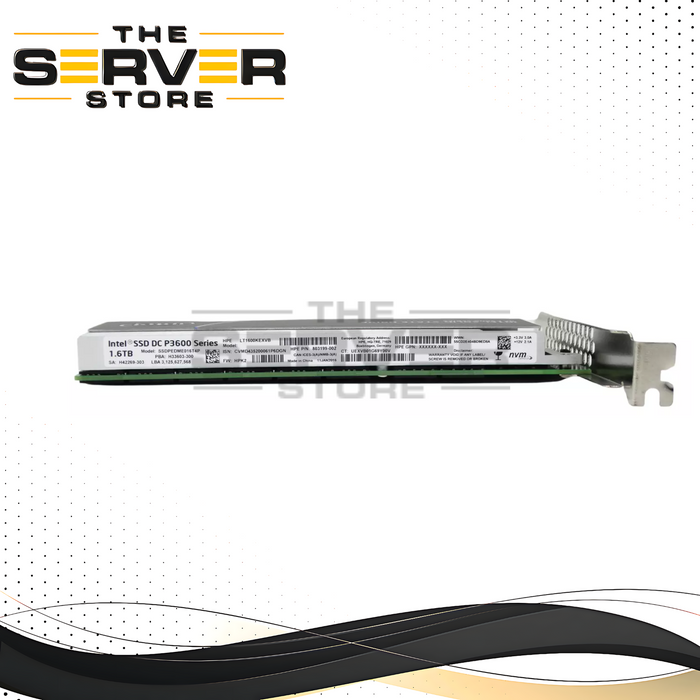

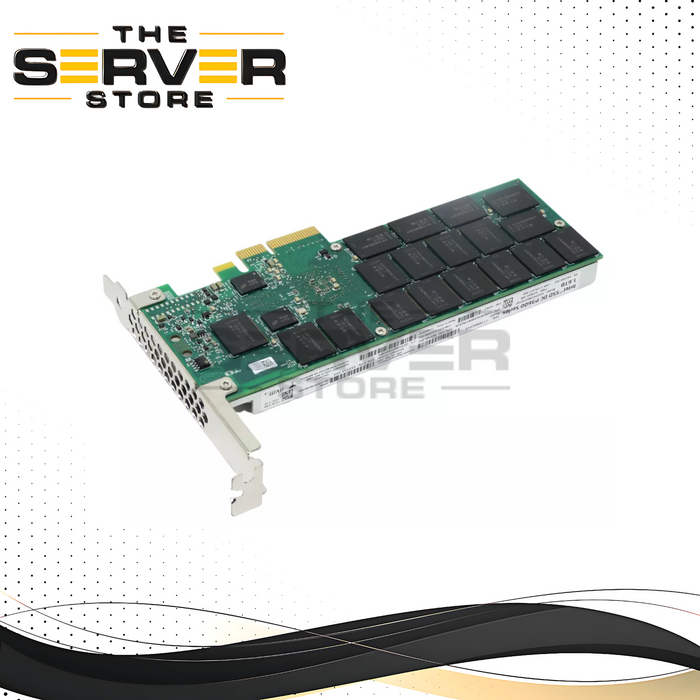

HPE 1.6TB NVMe MU PCIe Gen 3.0 x4 HHHL AIC SSD Intel DC P3600 Series 803202-B21 804569-001
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | 803202-B21 / 804569-001 |
| Manufacturer | HPE |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Solid State Drives |
| Model | |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
HPE 1.6TB NVMe MU PCIe Gen3 x4 HHHL AIC SSD Intel DC P3600 Series (803202-B21 / 804569-001)
The HPE 1.6TB NVMe x4 Mixed Use (MU) PCIe HHHL SSD (Option Part: 803202-B21, Spare Part: 804569-001) is a high-performance enterprise workload accelerator based on the Intel DC P3600 Series. It is designed for balanced read/write workloads such as virtualization, big data analytics, and database applications, delivering low latency and high throughput in enterprise server environments.
Core Specifications
- Capacity: 1.6TB
- Form Factor: Half-Height / Half-Length (HHHL) Add-In Card (AIC)
- Interface: PCI Express 3.0 x4 (NVMe)
- Workload Type: Mixed Use (MU)
- Endurance: ~3–4 DWPD (Drive Writes Per Day, 5 years)
- Controller: Intel NVMe Controller (DC P3600 Series)
Performance Metrics
- Sequential Read: Up to 2,500 MB/s
- Sequential Write: Up to 1,400 MB/s
- Random Read (4KiB): Up to 135,000 IOPS
- Random Write (4KiB): Up to 66,000 IOPS
Reliability & Power
- Power Loss Protection (PLP): Yes
- Firmware Security: Digitally Signed Firmware (DS)
- Operating Power: ~25W under load
- Enterprise Endurance: Optimized for mixed read/write workloads
Server Compatibility
This SSD is designed for HPE ProLiant enterprise servers and is validated for Gen9 and Gen10 platforms.
HPE ProLiant Gen10
Rack Servers:
- DL360 Gen10
- DL380 Gen10
- DL560 Gen10
- DL580 Gen10
HPE ProLiant Gen9
Rack Servers:
- DL360 Gen9
- DL380 Gen9
- DL560 Gen9
- DL580 Gen9
Compatibility Notes
- Requires available PCIe 3.0 x4 (or higher) slot
- Designed as a direct-to-PCIe storage device (no SAS/SATA backplane required)
- Compatible with NVMe-enabled operating systems and hypervisors
- Ideal for caching tiers, high-speed storage, or application acceleration
Related Part Numbers
- 803202-B21 (Option Part Number)
- 804569-001 (Spare Part Number)
- 803199-002
- LT1600KEXVB
- SSDPEDME016T4P
The HPE 1.6TB NVMe PCIe Gen3 x4 HHHL SSD (Intel DC P3600 Series) provides enterprise-grade performance, strong endurance, and low-latency acceleration, making it an excellent solution for mixed-use workloads in HPE ProLiant server environments.
