EMC 3.84TB SAS 12G RI SFF 2.5" 15mm SSD Samsung PM1633a Series MZ-ILS3T8N 118000519 for Lenovo ThinkSystem Server (Lenovo Tray Included)
Product Description
Upgrade your enterprise storage environment with this EMC 3.84TB SAS 12Gb/s Read Intensive (RI) Solid State Drive, based on the highly reliable Samsung PM1633a Series platform. Designed for virtualization, cloud computing, databases, software-defined storage, and enterprise server workloads, this SSD delivers consistent performance, low latency, and enterprise-grade reliability.
Built with 48-Layer Samsung TLC V-NAND flash technology, the PM1633a offers excellent endurance and efficiency for read-intensive applications. Its 12Gb/s Dual-Port SAS interface provides high-speed connectivity and redundancy for mission-critical environments, while integrated Power Loss Protection (PLP) helps protect valuable data during unexpected power interruptions.

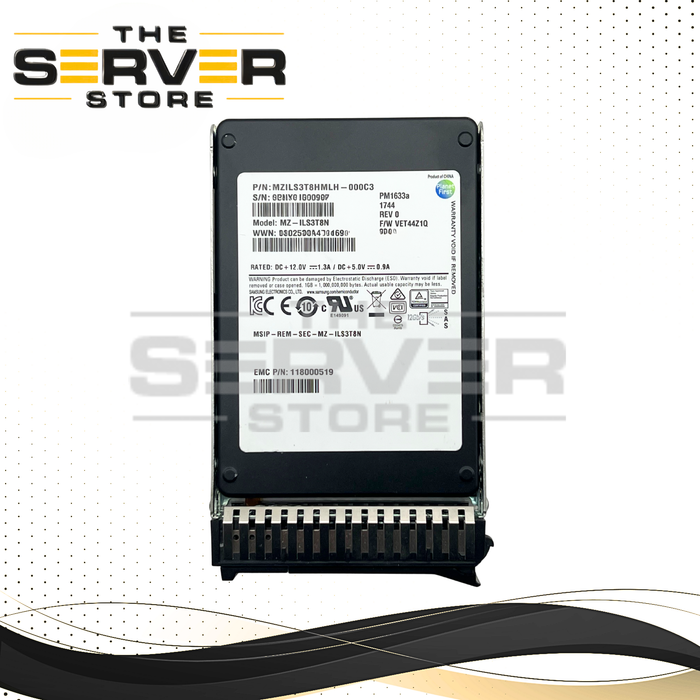

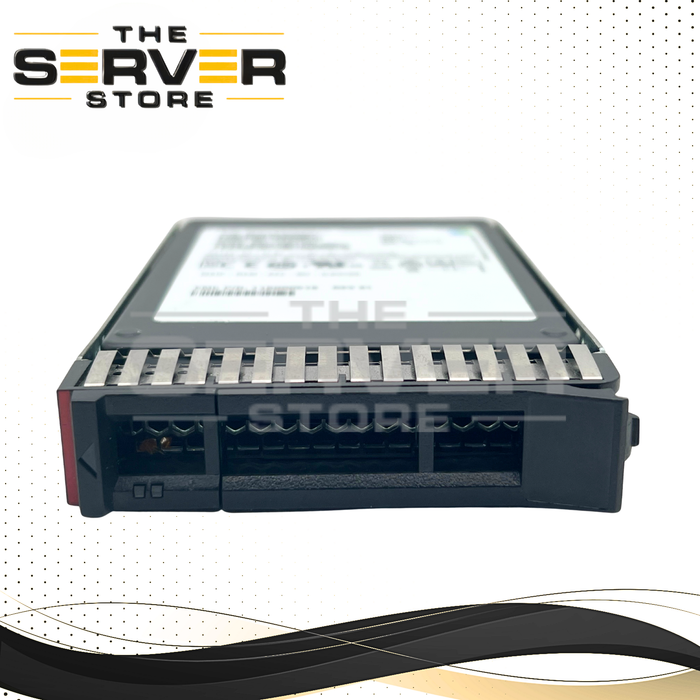

This drive is installed in a Lenovo ThinkSystem 2.5-inch hot-swap tray/caddy, making it ready for deployment in compatible Lenovo ThinkSystem and IBM server platforms supporting 2.5-inch SAS drives.
Key Features
- Capacity: 3.84TB
- Interface: 12Gb/s SAS-3 Dual Port
- Form Factor: 2.5" SFF
- Drive Height: 15mm
- Series: Samsung PM1633a
- Model: MZ-ILS3T8N
- EMC Part Number: 118000519
- Enterprise Read Intensive (RI) SSD
- 48-Layer Samsung TLC V-NAND Flash
- Power Loss Protection (PLP)
- Enterprise-Class Reliability
- Hot-Swap Compatible
- MTBF: 2 Million Hours
- Endurance Rating: 1 DWPD
- Includes Lenovo ThinkSystem SFF Hot-Swap Tray/Caddy
Part Numbers
- EMC P/N: 118000519
- Alternate EMC P/N: 005052110
- Samsung Model: MZ-ILS3T8N
- Samsung Base Model: MZILS3T8HMLH
- Samsung P/N: MZILS3T8HMLH-000C3
- Alternate Samsung P/N: MZILS3T8HMLH-000C4
- Series: PM1633a
Performance Specifications
- Sequential Read: Up to 1,250 MB/s
- Sequential Write: Up to 1,100 MB/s - 1,250 MB/s
- Random Read: Up to 200,000 IOPS
- Random Write: Up to 35,000 IOPS
- Interface Speed: 12Gb/s SAS
Reliability & Endurance
- Endurance Rating: 1 DWPD
- Total Bytes Written (TBW): 7,008 TB
- MTBF: 2,000,000 Hours
- Enterprise Error Correction
- Uncorrectable Bit Error Rate (UBER): 1 in 10¹⁷ bits read
- Power Loss Protection with Onboard Capacitors
Power Consumption
- Active Read/Write: Up to 11W
- Idle Power: Approximately 4.5W
Compatible Lenovo ThinkSystem & IBM Servers
Compatible with many Lenovo ThinkSystem and IBM server platforms supporting 2.5-inch SAS 12Gb/s hot-swap drives, including:
- Lenovo ThinkSystem SR550
- Lenovo ThinkSystem SR630
- Lenovo ThinkSystem SR650
- Lenovo ThinkSystem ST550
- Lenovo ThinkSystem SR570
- Lenovo ThinkSystem SR590
- Lenovo ThinkSystem SR650 V2
- IBM System x3550 M5
- IBM System x3650 M5
Enterprise Storage Compatibility
Commonly deployed in:
- Dell EMC Unity Series
- Dell EMC Unity XT Series
- Dell EMC VNX Systems
- Dell EMC PowerVault Systems
- Dell EMC VMAX Arrays
- Dell EMC PowerMax Arrays
- Select Isilon Systems
- Select PowerScale Systems
Condition
Professionally tested and verified for full functionality. Drive health, firmware version, sector size configuration, and cosmetic condition may vary slightly from unit to unit.
What's Included
- EMC 3.84TB SAS 12G RI 2.5" SSD
- Lenovo ThinkSystem 2.5" SFF Hot-Swap Tray/Caddy
Important Notes
- Enterprise-grade Read Intensive (RI) SSD designed for servers and storage arrays.
- Non-SED (Non Self-Encrypting Drive).
- EMC firmware may be formatted with 520-byte sectors. Some operating systems, RAID controllers, and server environments may require reformatting to 512-byte sectors before deployment.
- Please verify compatibility with your server, RAID controller, storage system, firmware version, and operating environment before purchasing.
- Listing includes the Lenovo ThinkSystem tray/caddy shown in the product photos.
