EMC 3.84TB SAS 12G RI SFF 2.5" 15mm SSD Samsung PM1633a Series MZ-ILS3T8N 118000519 for Supermicro Server (Supermicro Tray Included)

EMC 3.84TB SAS 12G RI SFF 2.5" 15mm SSD Samsung PM1633a Series MZ-ILS3T8N 118000519 for Supermicro Server (Supermicro Tray Included)

Product Description

Upgrade your server storage infrastructure with this EMC 3.84TB SAS 12Gb/s Read Intensive (RI) Solid State Drive, powered by the enterprise-proven Samsung PM1633a Series platform. Designed for virtualization, cloud computing, enterprise databases, software-defined storage, and data center applications, this SSD delivers outstanding reliability, low latency, and consistent performance for read-intensive workloads.

Built with 48-Layer Samsung TLC V-NAND flash technology, the PM1633a provides excellent endurance and performance while maintaining power efficiency. The 12Gb/s Dual-Port SAS interface supports enterprise environments requiring high availability and redundant data paths. Integrated Power Loss Protection (PLP) helps safeguard critical data in the event of an unexpected power interruption.

This drive is installed in a Supermicro 2.5-inch hot-swap tray/caddy, making it ready for deployment in compatible Supermicro servers and storage systems that support 2.5-inch SAS drives.

Key Features

• Capacity: 3.84TB
• Interface: 12Gb/s SAS-3 Dual Port
• Form Factor: 2.5" SFF
• Drive Height: 15mm
• Series: Samsung PM1633a
• Model: MZ-ILS3T8N
• EMC Part Number: 118000519
• Read Intensive (RI) Enterprise SSD
• 48-Layer Samsung TLC V-NAND
• Power Loss Protection (PLP)
• Enterprise-Class Reliability
• Hot-Swap Compatible
• MTBF: 2 Million Hours
• Endurance Rating: 1 DWPD
• Includes Supermicro SFF Hot-Swap Tray/Caddy

Part Numbers

• EMC P/N: 118000519
• Alternate EMC P/N: 005052110
• Samsung Model: MZ-ILS3T8N
• Samsung Base Model: MZILS3T8HMLH
• Samsung P/N: MZILS3T8HMLH-000C3
• Alternate Samsung P/N: MZILS3T8HMLH-000C4
• Series: PM1633a

Performance Specifications

• Sequential Read: Up to 1,250 MB/s
• Sequential Write: Up to 1,100 MB/s - 1,250 MB/s
• Random Read: Up to 200,000 IOPS
• Random Write: Up to 35,000 IOPS
• Interface Speed: 12Gb/s SAS

Reliability & Endurance

• Endurance Rating: 1 DWPD
• Total Bytes Written (TBW): 7,008 TB
• MTBF: 2,000,000 Hours
• Enterprise Error Correction
• Uncorrectable Bit Error Rate (UBER): 1 in 10¹⁷ bits read
• Power Loss Protection with Onboard Capacitors

Power Consumption

• Active Read/Write: Up to 11W
• Idle Power: Approximately 4.5W

Compatible Supermicro Platforms

Compatible with many Supermicro servers and storage systems supporting 2.5-inch SAS 12Gb/s hot-swap drives, including:

• SuperServer SYS-1029 Series
• SuperServer SYS-2029 Series
• SuperServer SYS-6029 Series
• SuperStorage Platforms
• BigTwin Platforms
• Ultra Platforms
• Hyper Platforms
• TwinPro Platforms
• Additional Supermicro systems supporting 2.5" SAS SSDs

Enterprise Storage Compatibility

Commonly deployed in:

• Dell EMC Unity Series
• Dell EMC Unity XT Series
• Dell EMC VNX Series
• Dell EMC PowerVault Systems
• Dell EMC VMAX Arrays
• Dell EMC PowerMax Arrays
• Select Isilon Systems
• Select PowerScale Systems

Condition

Professionally tested and verified for full functionality. Drive health, firmware version, sector size configuration, and cosmetic condition may vary slightly from unit to unit.

What's Included

• EMC 3.84TB SAS 12G RI 2.5" SSD
• Supermicro 2.5" SFF Hot-Swap Tray/Caddy

Important Notes

• Enterprise-grade Read Intensive (RI) SSD designed for server and storage applications.
• Non-SED (Non Self-Encrypting Drive).
• EMC firmware may be configured with 520-byte sectors. Certain operating systems or RAID controllers may require reformatting to 512-byte sectors before deployment.
• Please verify compatibility with your server, storage system, controller, firmware version, and operating environment before purchasing.

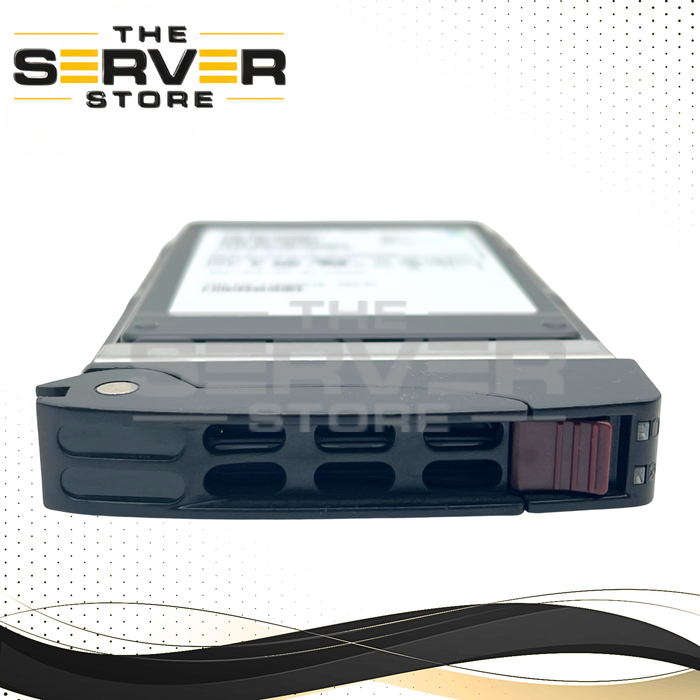

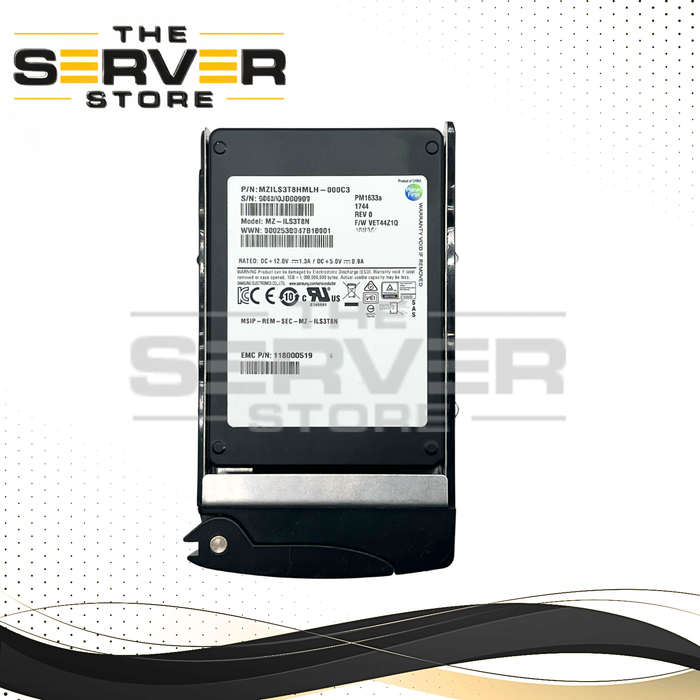

• Listing includes the Supermicro tray/caddy shown in the product photos.
