EMC 3.84TB SAS 12G RI SFF 2.5" 15mm SSD Samsung PM1633a Series MZ-ILS3T8N 118000519 for Cisco UCS Server (Cisco UCS Tray Included)
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | |
| Manufacturer | |
| Condition | |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | |
| Model | |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |

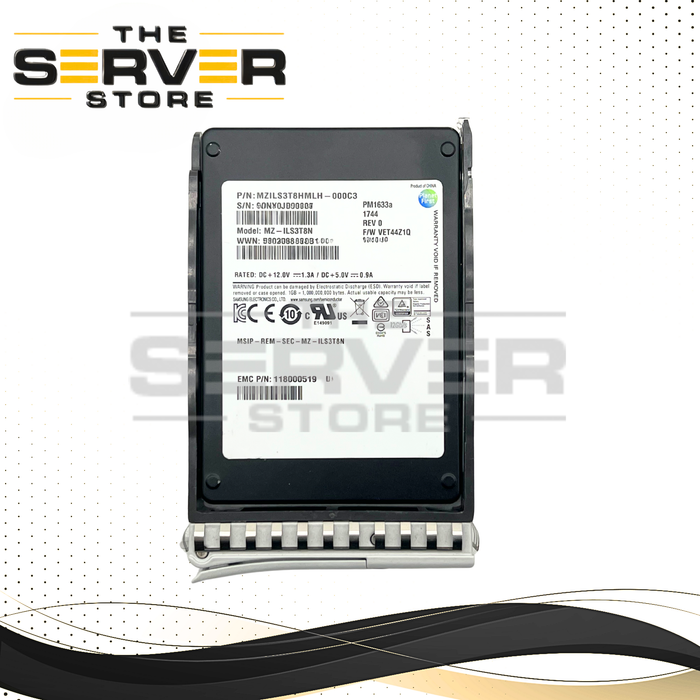

EMC 3.84TB SAS 12G RI SFF 2.5" 15mm SSD Samsung PM1633a Series MZ-ILS3T8N 118000519 for Cisco UCS Server (Cisco UCS Tray Included)
Product Description
Upgrade your enterprise storage infrastructure with this EMC 3.84TB SAS 12Gb/s Read Intensive (RI) Solid State Drive, powered by the reliable Samsung PM1633a Series platform. Engineered for data centers, virtualization environments, cloud computing, enterprise databases, and high-availability storage systems, this SSD delivers consistent performance, exceptional reliability, and enterprise-class endurance.
Built using 48-Layer Samsung TLC V-NAND technology, the PM1633a offers improved efficiency and dependable performance for read-intensive workloads. The 12Gb/s Dual-Port SAS interface provides high-speed connectivity and path redundancy, while integrated Power Loss Protection (PLP) helps protect critical data during unexpected power interruptions.
This drive is installed in a Cisco UCS 2.5-inch hot-swap tray/caddy, making it ideal for deployment in compatible Cisco UCS rack and blade servers supporting 2.5-inch SAS drives.
Key Features
- Capacity: 3.84TB
- Interface: 12Gb/s SAS-3 Dual Port
- Form Factor: 2.5" Small Form Factor (SFF)
- Drive Height: 15mm
- Series: Samsung PM1633a
- Model: MZ-ILS3T8N
- EMC Part Number: 118000519
- Enterprise Read Intensive (RI) SSD
- 48-Layer Samsung TLC V-NAND Flash Technology
- Power Loss Protection (PLP)
- Enterprise-Class Reliability
- Hot-Swap Compatible
- MTBF: 2 Million Hours
- Endurance Rating: 1 DWPD
- Includes Cisco UCS SFF Hot-Swap Tray/Caddy
Part Numbers
- EMC P/N: 118000519
- Alternate EMC P/N: 005052110
- Samsung Model: MZ-ILS3T8N
- Samsung Base Model: MZILS3T8HMLH
- Samsung P/N: MZILS3T8HMLH-000C3
- Alternate Samsung P/N: MZILS3T8HMLH-000C4
- Series: PM1633a
Performance Specifications
- Sequential Read: Up to 1,250 MB/s
- Sequential Write: Up to 1,100 MB/s - 1,250 MB/s
- Random Read: Up to 200,000 IOPS
- Random Write: Up to 35,000 IOPS
- Interface Speed: 12Gb/s SAS
Reliability & Endurance
- Endurance Rating: 1 DWPD
- Total Bytes Written (TBW): 7,008 TB
- MTBF: 2,000,000 Hours
- Enterprise Error Correction
- Uncorrectable Bit Error Rate (UBER): 1 in 10¹⁷ bits read
- Power Loss Protection with Onboard Capacitors
Power Consumption
- Active Read/Write: Up to 11W
- Idle Power: Approximately 4.5W
Compatible Cisco UCS Platforms
Compatible with many Cisco UCS rack and blade servers that support 2.5-inch SAS 12Gb/s hot-swap drives, including:
- Cisco UCS C220 M4
- Cisco UCS C240 M4
- Cisco UCS C220 M5
- Cisco UCS C240 M5
- Cisco UCS C220 M6
- Cisco UCS C240 M6
- Cisco UCS B200 M4
- Cisco UCS B200 M5
- Cisco UCS B200 M6
- Cisco UCS S3260 Storage Server
Enterprise Storage Compatibility
Commonly deployed in:
- Dell EMC Unity Series
- Dell EMC Unity XT Series
- Dell EMC VNX Series
- Dell EMC PowerVault Systems
- Dell EMC VMAX Arrays
- Dell EMC PowerMax Arrays
- Select Isilon Systems
- Select PowerScale Systems
Condition
Professionally tested and verified for full functionality. Drive health, firmware version, sector size configuration, and cosmetic condition may vary slightly from unit to unit.
What's Included
- EMC 3.84TB SAS 12G RI 2.5" SSD
- Cisco UCS 2.5" SFF Hot-Swap Tray/Caddy
Important Notes
- Enterprise-grade Read Intensive (RI) SSD designed for server and storage applications.
- Non-SED (Non Self-Encrypting Drive).
- EMC firmware may be configured with 520-byte sectors. Some operating systems, RAID controllers, and storage environments may require reformatting to 512-byte sectors before deployment.
- Please verify compatibility with your Cisco UCS server, storage controller, firmware version, and operating environment before purchasing.

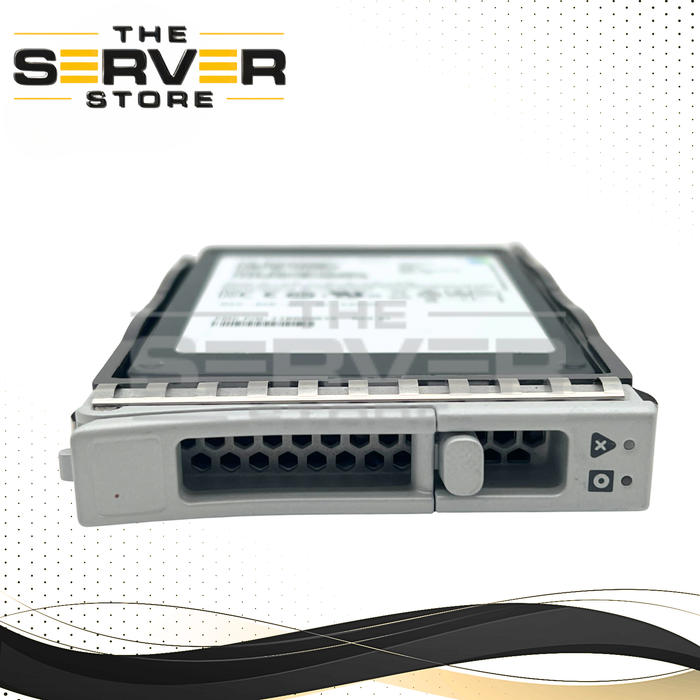

- Listing includes the Cisco UCS tray/caddy shown in the product photos.
