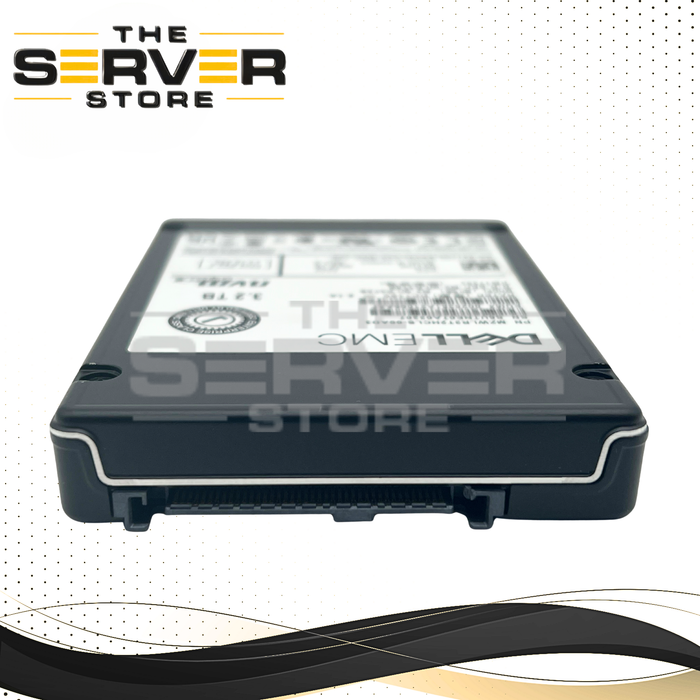

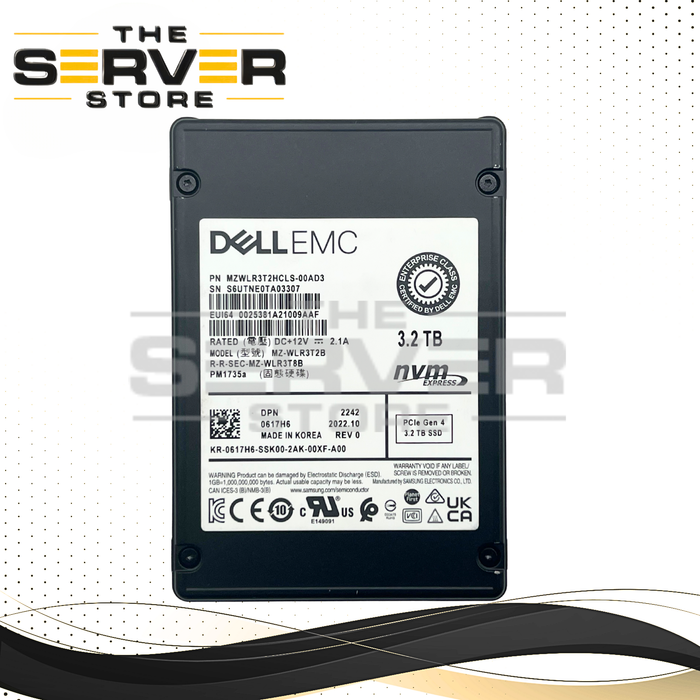

Dell EMC 3.2TB NVMe U.3 G4 x8 MU 2.5 SSD Samsung PM1735a MZ-WLR3T2B 0617H6 617H6

Dell EMC 3.2TB NVMe U.3 G4 x8 MU 2.5 SSD Samsung PM1735a MZ-WLR3T2B 0617H6 617H6

$0.00 - $0.00
$0.00
$949.05
$949.05 - $949.05
$949.05
SKU 617H6
Availability:
Only 2 left!

In-store Pickup

Local Pickup in Dallas, TX Available

Shopify Product Page with Tabs
  • Specifications
  • Description
Manufacturer Part Number 0617H6 617H6
Manufacturer Dell EMC
Condition Refurbished (90%+ Health)
Standard Warranty 90 Day Replacement Warranty
Item Category Solid State Drives (SSD)
Model Samsung PM1735a MZ-WLR3T2B
Form Factor
Interface
External Interfaces
Storage Capacity
Transfer Rate
Network Management Type
Processor Type
Clock Speed
Number of Cores
Cache
Socket Type
TDP
Compatible Port
Number of Ports
CPU Type
HDD Form Factor
HDD Interface
HDD Rotation Speed
HDD Storage Capacity
HDD Transfer Rate
Memory Bus Speed
Memory Capacity Per Module
Memory Features
Memory Form Factor
Memory Kit Brand
Memory Kit Breakdown
Memory Kit Speed
Memory Kit Technology
Memory Kit Total Capacity
Memory Kit Voltage
Memory Number of Modules
Memory Number of Pins
Memory Total Capacity
Memory Type
Network Ports
Processor Model
SSD Capacity
SSD Interface
SSD Storage Capacity
SSD Transfer Rate
SSD Type

Dell 617H6

Dell EMC 3.2TB NVMe U.3 Gen4 x8 Mixed Use 2.5" SSD
Samsung PM1735a | MZ-WLR3T2B | 0617H6

The Dell 617H6 (0617H6) is a high-performance, enterprise-class 3.2TB NVMe SSD manufactured by Samsung under the Samsung PM1735a platform. Designed for data-intensive workloads such as high-performance computing (HPC), virtualization, AI, and database environments, this drive delivers ultra-fast PCIe Gen4 performance with enterprise-grade endurance and reliability.

Built on PCIe 4.0 x8 NVMe architecture, it provides exceptional throughput and IOPS while supporting hot-swap capability and dual-port redundancy for mission-critical environments.

🔹 Technical Performance

  • Capacity: 3.2TB

  • Interface: PCIe 4.0 x8 (NVMe Gen4)

  • Form Factor: 2.5-inch SFF U.2 / U.3

  • Sequential Read: Up to 8,000 MB/s

  • Sequential Write: Up to 3,800 MB/s

  • Random Read: Up to 1,500,000 IOPS

  • Random Write: Up to 250,000 IOPS

  • Endurance: 3 DWPD (Mixed Use)

  • NAND Type: TLC (Triple-Level Cell)

  • OEM Manufacturer: Samsung

  • OEM Model: MZ-WLR3T2B

🔹 Enterprise Features

  • Mixed Use workload rating (3 DWPD)

  • Dual-port failover for high availability

  • Hot-swappable design

  • Available in SED variants (TCG/FIPS encryption depending on configuration)

  • Optimized for Dell PowerEdge NVMe backplanes

🔹 System Compatibility

Compatible with Dell PowerEdge servers supporting 2.5-inch NVMe drives from 14th through 17th Generation. For full PCIe Gen4 performance, pairing with 15G or newer servers is recommended.

Compatible Rack Servers (R-Series)

  • Dell PowerEdge R650

  • Dell PowerEdge R650xs

  • Dell PowerEdge R6515

  • Dell PowerEdge R6525

  • Dell PowerEdge R660

  • Dell PowerEdge R660xs

  • Dell PowerEdge R750

  • Dell PowerEdge R750xa

  • Dell PowerEdge R750xs

  • Dell PowerEdge R7515

  • Dell PowerEdge R760

  • Dell PowerEdge R760xa

  • Dell PowerEdge R760xd2

  • Dell PowerEdge R760xs

  • Dell PowerEdge R860

  • Dell PowerEdge R960

  • Dell PowerEdge R740xd (14G)

Tower Servers (T-Series)

  • Dell PowerEdge T550

Modular / Node Servers

  • Dell PowerEdge C6520

  • Dell PowerEdge C6525

  • Dell PowerEdge C6615

  • Dell PowerEdge C6620

  • Dell PowerEdge MX750c

  • Dell PowerEdge MX760c

🔹 Compatible Storage Controllers

To enable RAID or optimized NVMe functionality, Dell recommends:

  • Dell PERC H965i Front (PERC 12 – NVMe Gen4 up to 16 GT/s)

  • Dell PERC H755 Front

  • Dell BOSS-N1 3YGWT

🔹 Caddy & Backplane Requirements

  • Requires 2.5" SFF NVMe-compatible hot-plug tray

  • Server must have an NVMe-ready backplane (Universal or NVMe-only slots)

  • Example: R740xd can support up to 24 NVMe drives depending on configuration

🔹 Cross-Platform Compatibility

Although Dell-branded, this SSD is OEM Samsung PM1735a hardware:

  • Compatible with certain HPE ProLiant Gen10 Plus / Gen11 models (may require HPE firmware or tray)

  • Validated for select Lenovo ThinkSystem servers such as SR650 v2

🔹 Other Related / Equivalent Part Numbers

  • 0617H6

  • 617H6

  • MZ-WLR3T2B

  • MZWLR3T2HCLS-00AD3

These part numbers may represent Dell OEM identifiers or Samsung manufacturer references. All correspond to the same 3.2TB PCIe Gen4 x8 NVMe Mixed Use enterprise SSD when specifications match.
