Dell 2x M.2 NVMe Slot BOSS-N1 G3 Raid Controller Monolithic Module 0WW56V WW56V
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | 0WW56V WW56V (Read description) |
| Manufacturer | Dell |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | RAID, HBA, & Storage Controllers |
| Model | BOSS-N1 G3 |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |

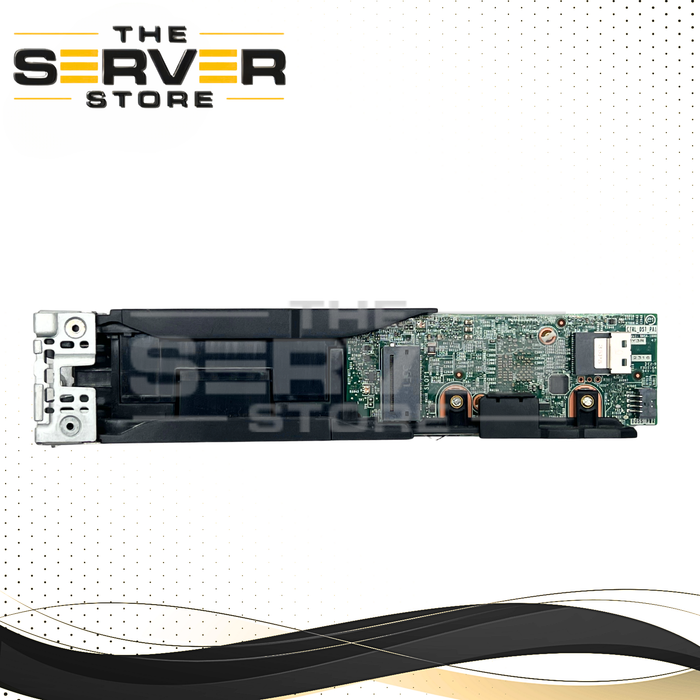

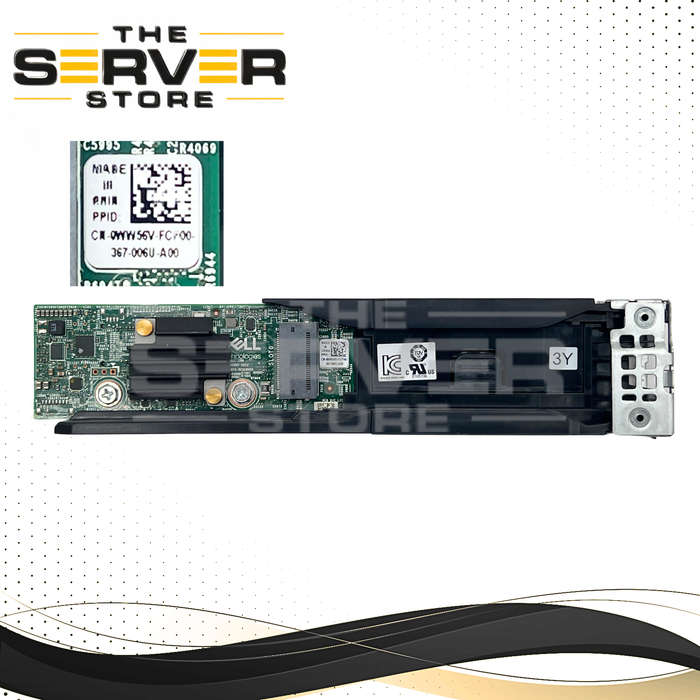

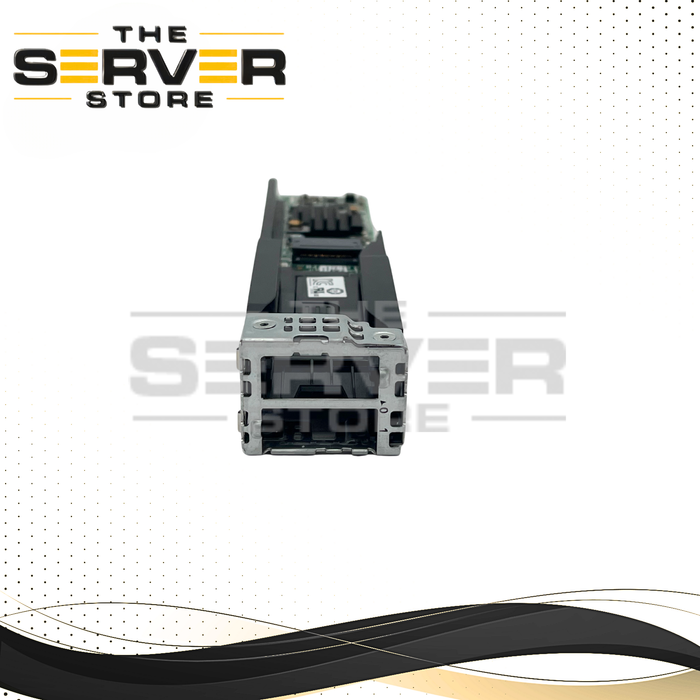

Dell 2x M.2 NVMe Slot BOSS-N1 PCIe Gen 3.0 x4 RAID Controller Monolithic Module – 0WW56V / WW56V
The Dell BOSS-N1 Monolithic Module (WW56V / 0WW56V) is a dedicated hardware RAID solution engineered for Dell PowerEdge 16th Generation servers. Designed as a Boot Optimized Storage Solution (BOSS), it provides a reliable, hot-pluggable OS boot option using enterprise-class M.2 NVMe SSDs—freeing up primary drive bays for application and data storage.
This monolithic (rear-facing) version integrates seamlessly into supported Gen 16 systems and is fully manageable through Dell’s server management tools.
Key Specifications
| Feature | Detail |
|---|---|
| Type | Boot Optimized Storage Solution (BOSS-N1) Monolithic Module |
| Part Numbers | WW56V, 0WW56V |
| Host Interface | PCIe Gen 3.0 x4 |
| Drive Interface | Dual NVMe Gen 3.0 x2 device interfaces |
| Drive Support | Up to two 80mm M.2 NVMe SSDs (Enterprise Class only) |
| Supported Capacities | 480GB, 960GB (1 DWPD RI), 1.92TB |
| RAID Levels | Hardware RAID 1 (mirroring) or single-drive RAID 0 |
| Hot-Plug Support | Yes (monolithic version) |
| Management | iDRAC, OpenManage Server Administrator (OMSA), CLI |
| Stripe Size | Default 128K |
| Primary Use Case | Dedicated OS boot device |
Required Cables and Card
The kit uses the following two cables and card (NOT INCLUDED IN THIS AD):
-
N8Y2T / 0N8Y2T
-
JFVR1 / 0JFVR1
-
03YGWT / 3YGWT (card P/Ns)
Compatible Dell PowerEdge Servers (16th Generation Only)
The BOSS-N1 is designed exclusively for Dell PowerEdge 16th Gen platforms. It is not compatible with 14th or 15th Generation servers.
-
Dell PowerEdge R360
-
Dell PowerEdge R660
-
Dell PowerEdge R6615
-
Dell PowerEdge R760
-
Dell PowerEdge R760xa
-
Dell PowerEdge R7625
-
Dell PowerEdge R860
Ideal For
-
Virtualized environments
-
Hypervisor boot volumes (VMware, Hyper-V, Linux)
-
Enterprise OS redundancy with RAID 1
-
Preserving front drive bays for production storage
Please verify server generation and backplane configuration before purchasing to ensure proper compatibility.
