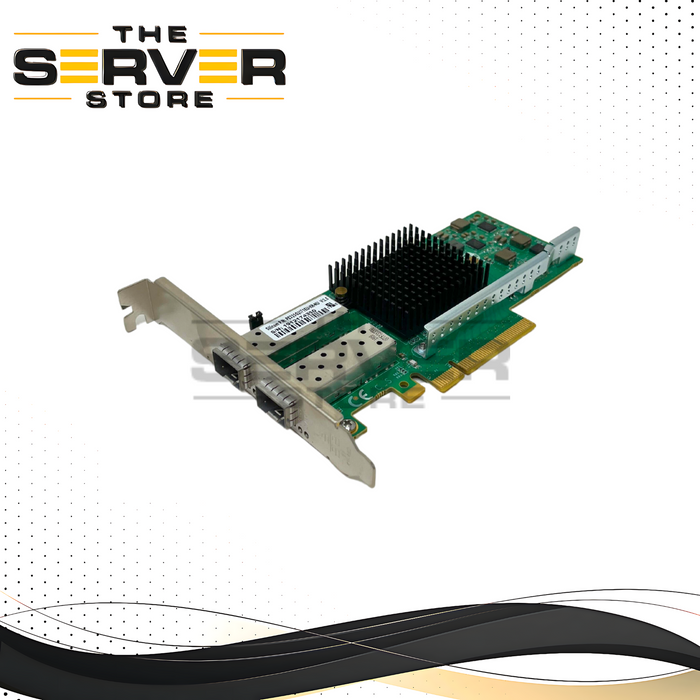

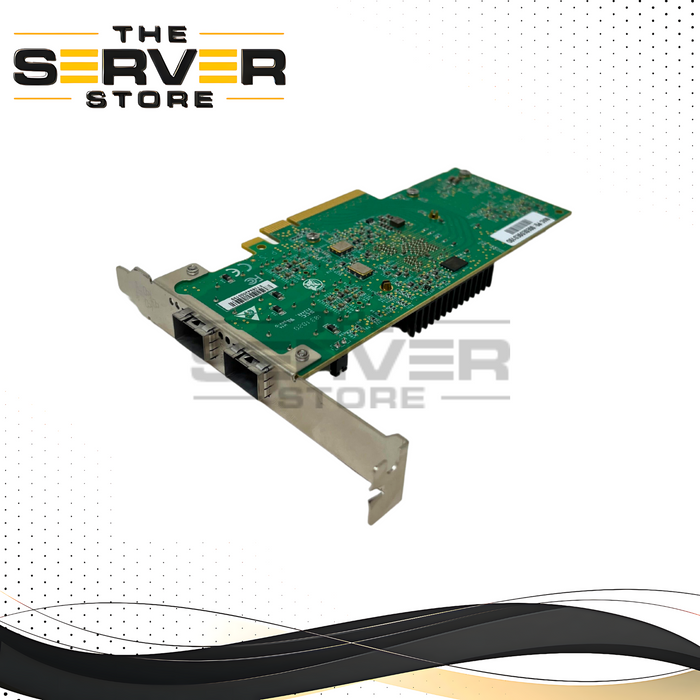

Silicom Intel XXV710-DA2 Dual Port 25GbE Network Adapter (NIC) PE325G2I71EU-XR

Silicom Intel XXV710-DA2 Dual Port 25GbE Network Adapter (NIC) PE325G2I71EU-XR

Save 47% Save 47%
$143.75
$143.75 - $143.75
$143.75
$75.99
$75.99 - $75.99
$75.99
SKU PE325G2I71EU-XR
Availability:
Only 8 left!

In-store Pickup

Local Pickup in Dallas, TX Available

Shopify Product Page with Tabs
  • Specifications
  • Description
Manufacturer Part Number PE325G2I71EU-XR
Manufacturer Silicom Ltd.
Condition Refurbished
Standard Warranty 90 Day Replacement Warranty
Item Category Network Interface Cards (NICs)
Model
Form Factor
Interface
External Interfaces
Storage Capacity
Transfer Rate
Network Management Type
Processor Type
Clock Speed
Number of Cores
Cache
Socket Type
TDP
Compatible Port
Number of Ports
CPU Type
HDD Form Factor
HDD Interface
HDD Rotation Speed
HDD Storage Capacity
HDD Transfer Rate
Memory Bus Speed
Memory Capacity Per Module
Memory Features
Memory Form Factor
Memory Kit Brand
Memory Kit Breakdown
Memory Kit Speed
Memory Kit Technology
Memory Kit Total Capacity
Memory Kit Voltage
Memory Number of Modules
Memory Number of Pins
Memory Total Capacity
Memory Type
Network Ports
Processor Model
SSD Capacity
SSD Interface
SSD Storage Capacity
SSD Transfer Rate
SSD Type

Intel XXV710-DA2 Dual Port 25GbE Network Adapter NIC PE325G2I71EU-XR

The Intel XXV710-DA2 Dual Port 25GbE Network Adapter (P/N PE325G2I71EU-XR) is a high-performance, low-latency network interface designed for modern data centers, cloud platforms, virtualization hosts, and high-bandwidth enterprise applications. Built on the Intel XXV710-AM2 controller, this dual-port SFP28 adapter delivers exceptional throughput with support for 1GbE, 10GbE, and 25GbE auto-negotiation, making it ideal for scalable next-generation network infrastructure.

Featuring a PCI Express 3.0 x8 interface, the adapter ensures fast and reliable data transfer with full compatibility across Windows Server, Linux, VMware, and FreeBSD environments. The low-profile form factor provides flexible installation in both compact and standard server chassis.

This NIC supports SFP28 direct-attach copper (DAC) cables, as well as optical SR/LR transceivers for maximum deployment versatility. With efficient hardware offloads and advanced virtualization features, the XXV710-DA2 significantly reduces CPU utilization while optimizing network performance for heavy workloads such as cloud computing, storage networking, virtualization, and NFV.

Key Specifications

  • Controller: Intel XXV710-AM2

  • Ports: 2 × SFP28 cages

  • Speed Support: 1GbE / 10GbE / 25GbE

  • Interface: PCI Express 3.0 x8

  • Form Factor: Low-profile short add-in card

  • Included Accessories: Full-height bracket availability varies by kit

  • Dimensions: 145.542 mm × 64.389 mm (5.730 in × 2.535 in)

  • Power Consumption: Approximately 9.84 W at 25GbE SR

  • Cabling Support:

    • SFP28 DAC

    • SFP28 SR/LR optical modules

  • Jumbo Frame Support: Up to 9.5 KB

  • Operating Systems: Windows Server 64-bit, Linux, FreeBSD, VMware

  • Network Offloads:

    • iSCSI, NFS, TCP/UDP/IP checksum

    • Large Send Offload (LSO)

    • Intelligent hardware offloads

  • Virtualization Technologies:

    • Intel Virtualization Technology for Connectivity (VT-c)

    • VMDq

    • SR-IOV

Compatible Part Numbers (cleaned)

  • PE325G2I71EU-XR

  • PE325G2I71EU-XR-NU

  • XXV710-DA2-Silicom

  • HN7J7-3rdparty

  • 00M95-3rdparty

  • 870825-B21-3rdparty

  • 870823-001-3rdparty

  • 879666-001-3rdparty

Ideal Applications

  • Virtualized data centers

  • Cloud service providers

  • High-bandwidth storage networks

  • Hyperconverged infrastructure

  • Network function virtualization (NFV)

  • High-performance computing clusters
