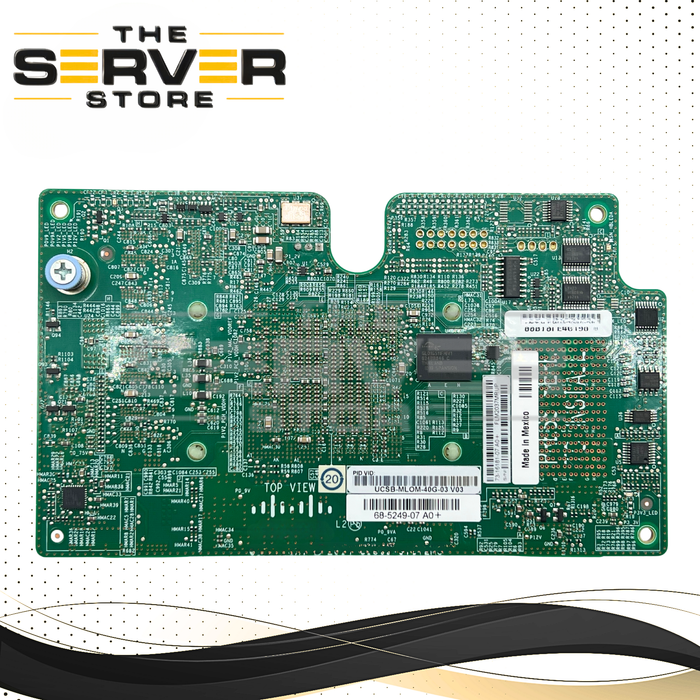

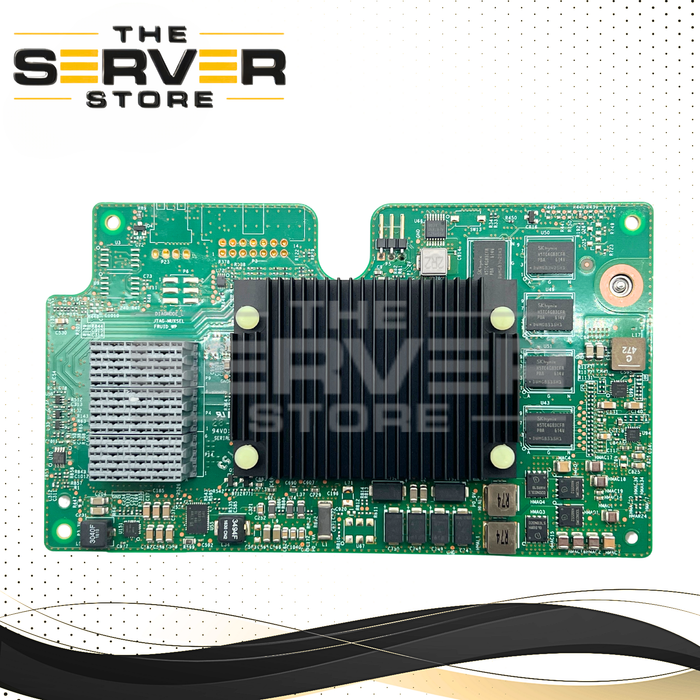

Cisco UCS VIC 1340 2P 40Gb mLOM Mezzanine Adapter M3/M4 Blade UCSB-MLOM-40G-03
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | UCSB-MLOM-40G-03 V01 |
| Manufacturer | Cisco |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Other Server Parts |
| Model | |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Cisco UCS VIC 1340 2P 40Gb mLOM Adapter M3/M4 Blade
73-16181-05 / UCSB-MLOM-40G-03 ( Network Card )
The Cisco UCS Virtual Interface Card (VIC) 1340 is a dual-port 40 Gigabit Ethernet (40GbE) and Fibre Channel over Ethernet (FCoE) modular LAN-on-Motherboard (mLOM) adapter designed specifically for Cisco UCS B-Series M3 and M4 blade servers. It provides high-bandwidth, low-latency connectivity and flexible virtualized networking for enterprise data center environments.
Part Number Identification
The following part numbers refer to this Cisco UCS VIC 1340 adapter:
-
UCSB-MLOM-40G-03 – Base Cisco model number
-
73-16181-05 – Cisco assembly part number
-
68-5249-05 C0+ – Cisco board revision number
-
UCSB-MLOM-40G-03 V01 – Hardware revision
General Specifications
-
Model Name: Cisco UCS Virtual Interface Card 1340
-
Form Factor: Modular LOM (mLOM) mezzanine adapter
-
Host Interface: PCI Express (PCIe) x16
-
Designed For: Cisco UCS B-Series Blade Servers (M3 / M4 generations)
Networking Specifications
-
Ports: 2 × QSFP+
-
Port Type: 40Gb Ethernet / FCoE
-
Maximum Throughput:
-
Up to 40 Gbps per port
-
Full duplex operation
-
-
Aggregate Bandwidth: 40 Gbps per direction
Power & Environmental
-
Typical Power Consumption: 12W
-
With Optional Port Expander: Up to 15W
-
Operating Temperature: 50°F to 95°F (10°C to 35°C)
Physical Dimensions
-
Length: Approx. 7.25 in (18.4 cm)
-
Width: Approx. 3.65 in (9.3 cm)
Key Features
-
Unified fabric support (Ethernet + FCoE)
-
High-bandwidth connectivity for virtualized workloads
-
Designed for Cisco UCS Manager integration
-
Optimized for data center blade server deployments
Ideal Applications
-
Cisco UCS B-Series M3 / M4 blade environments
-
Virtualized enterprise workloads
-
High-density data center networking
-
Converged infrastructure deployments
