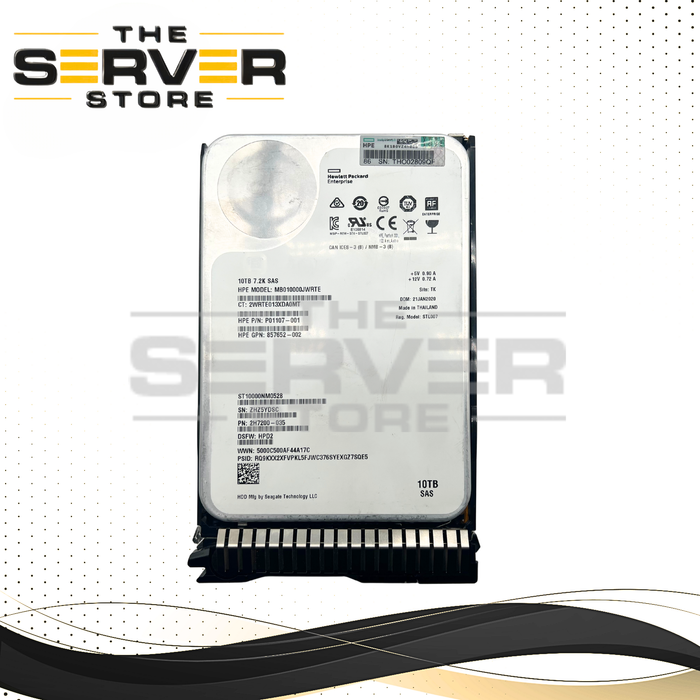

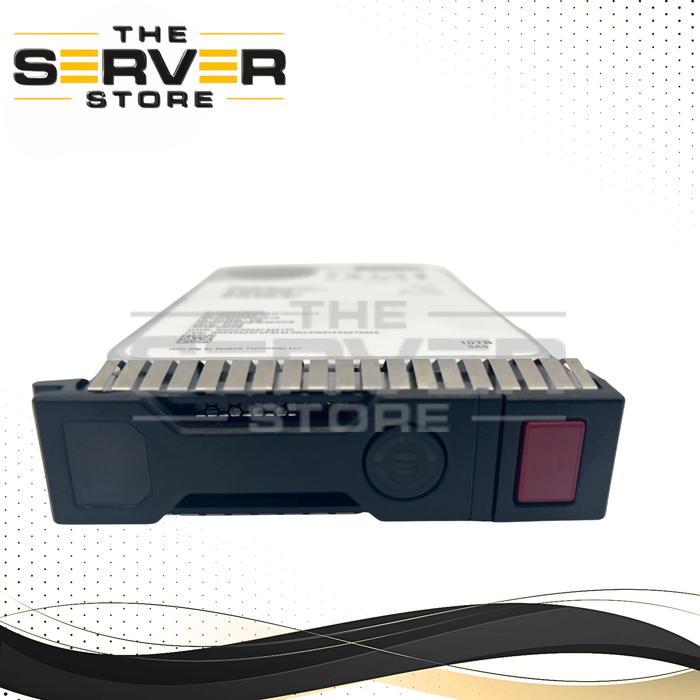

HPE 10TB SAS 12G 7.2K RPM with LFF SCC Tray 3.5" HDD Seagate Exos X14 Series ST10000NM0528 P01107-001
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | P01107-001 / MB010000JWRTE / 857652-002 |
| Manufacturer | Seagate |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Hard Disk Drive (HDD) |
| Model | ST10000NM0528 |
| Form Factor | 3.5-inch LFF |
| Interface | SAS |
| External Interfaces | |
| Storage Capacity | 10 TB |
| Transfer Rate | 12 Gb/s |
| Network Management Type | |
| Processor Type | |
| Clock Speed | 7200 RPM |
| Number of Cores | |
| Cache | 256 MB |
| Socket Type | SAS |
| TDP | ~11 W |
| Compatible Port | |
| Number of Ports | 1 |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
HPE 10TB SAS 12G 7.2K RPM with LFF SCC Tray 3.5" HDD Seagate Exos X14 Series ST10000NM0528 P01107-001
The HPE P01107-001 is a high-capacity, enterprise-grade 3.5-inch (LFF) HDD built on the Seagate Exos X14 series (ST10000NM0528) platform. This drive is configured with an HPE Smart Carrier Converter (SCC), making it ideal for deployment in HPE ProLiant servers.
Designed for Midline (MDL) workloads, this helium-sealed HDD delivers reliable, cost-effective storage for bulk data, backup, and archival applications in modern data centers.
Core Specifications
- Capacity: 10TB
- Interface: SAS 12Gb/s (Serial Attached SCSI)
- Spindle Speed: 7,200 RPM
- Form Factor: 3.5-inch LFF HDD (via SCC adapter)
- Cache: 256MB multi-segmented
- Sector Format: 512e (with optional 4Kn via FastFormat)
- Technology: Helium-sealed design for improved efficiency and reliability
Performance Specifications
- Sustained Transfer Rate: Up to 261 MB/s
- Workload Rating: Up to 550 TB/year
- MTBF: 2.5 million hours
Power & Environmental
- Idle Power Consumption: ~5.0W
- Max Operating Power: ~10.2W
Key Features
High-Capacity Enterprise Storage:
Optimized for large-scale data storage, backup, and archival environments
Helium-Sealed Design:
Improves power efficiency, reduces friction, and enhances drive longevity
Smart Carrier Converter (SCC):
Enables compatibility with supported HPE Smart Carrier (SC) systems
Digitally Signed Firmware:
Ensures secure firmware validation and protection against unauthorized modifications
24/7 Reliability:
Designed for continuous enterprise workloads with high durability
Server Compatibility
This drive is designed for HPE ProLiant Gen8, Gen9, and Gen10 servers that support Smart Carrier (SC) or SCC configurations.
ProLiant DL Series (Rack Servers)
DL325 Gen10
DL360 Gen10 Plus
DL380 Gen10
DL385 Gen10 Plus
ProLiant ML Series (Tower Servers)
ML30 Gen10
ML350 Gen10
HPE Apollo Systems
Apollo 4200 Gen9 (select configurations)
HPE Nimble Storage (dHCI)
Compatible with Gen10 Plus-based deployments
Compatibility Notes
-
Interface Requirement:
Requires a SAS controller (not compatible with SATA-only systems) -
Carrier Compatibility:
Designed for Smart Carrier (SC) / SCC systems (Gen8–Gen10) -
Generation Limitation:
May not be compatible with Gen10 Plus or Gen11 systems using newer Basic Carrier (BC) trays
Related Part Numbers
- P01107-001 (Primary HPE Part Number)
- MB010000JWRTE
- 857652-002
- ST10000NM0528 (Seagate Model Number)
- 2H7200-035
The HPE 10TB SAS 12G 7.2K LFF SCC 3.5" HDD (Exos X14 series) provides a powerful combination of high capacity, enterprise reliability, and flexible deployment, making it an excellent choice for data centers requiring scalable and cost-efficient storage solutions.
