Dell 300GB SAS 6G 10K RPM 2.5" HDD WD XE Series WD3001BKHG-18D22V1 0CWHNN CWHNN

Dell 300GB SAS 6G 10K RPM 2.5" HDD WD XE Series WD3001BKHG-18D22V1 0CWHNN CWHNN

Sold out
$0.00 - $0.00
$0.00
$32.99
$32.99 - $32.99
$32.99
SKU CWHNN
Availability:
Out of stock

In-store Pickup

Local Pickup in Dallas, TX Available

Shopify Product Page with Tabs
  • Specifications
  • Description
Manufacturer Part Number 0CWHNN CWHNN
Manufacturer Western Digital
Condition Refurbished
Standard Warranty 90 Day Replacement Warranty
Item Category SAS Hard Drives
Model Western Digital XE Series
Form Factor
Interface
External Interfaces
Storage Capacity
Transfer Rate
Network Management Type
Processor Type
Clock Speed
Number of Cores
Cache
Socket Type
TDP
Compatible Port
Number of Ports
CPU Type
HDD Form Factor
HDD Interface
HDD Rotation Speed
HDD Storage Capacity
HDD Transfer Rate
Memory Bus Speed
Memory Capacity Per Module
Memory Features
Memory Form Factor
Memory Kit Brand
Memory Kit Breakdown
Memory Kit Speed
Memory Kit Technology
Memory Kit Total Capacity
Memory Kit Voltage
Memory Number of Modules
Memory Number of Pins
Memory Total Capacity
Memory Type
Network Ports
Processor Model
SSD Capacity
SSD Interface
SSD Storage Capacity
SSD Transfer Rate
SSD Type

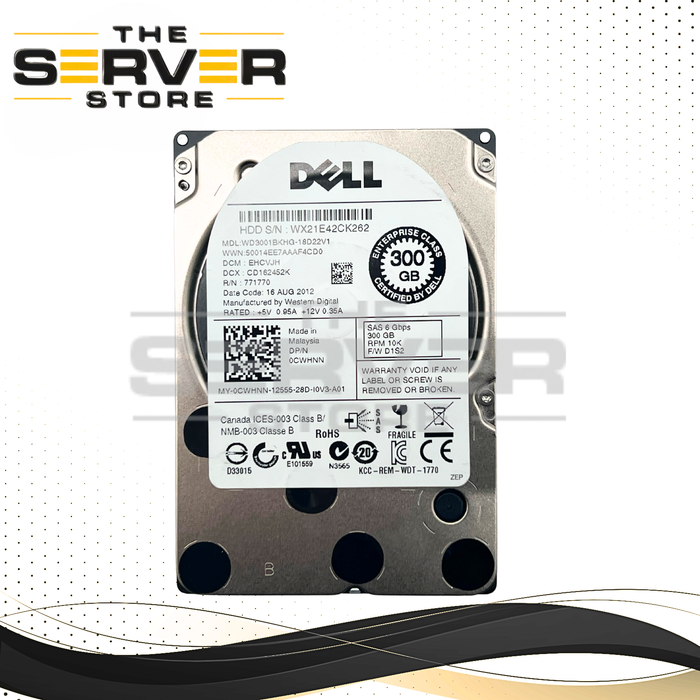

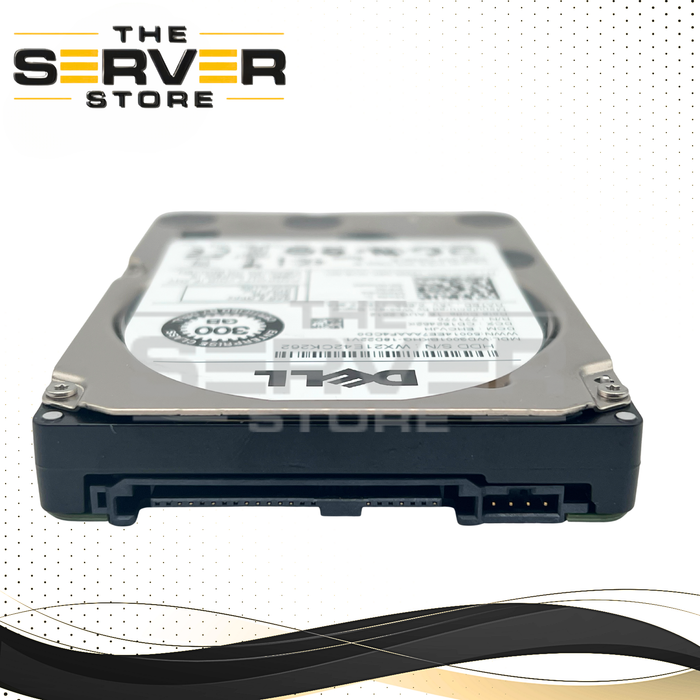

Dell 300GB SAS 6G 10K RPM 2.5" HDD – WD XE Series

WD3001BKHG-18D22V1 / 0CWHNN / CWHNN

The Dell 300GB SAS 6Gb/s 10K RPM 2.5-inch HDD from the Western Digital XE Enterprise Series is a high-performance, enterprise-class hard drive designed for mission-critical server and storage environments. With 10,000 RPM rotational speed, dual-port SAS connectivity, and enterprise reliability features, this drive is well suited for transactional workloads and performance-focused applications.

Part Number Identification

All part numbers below refer to the same base Western Digital XE Series drive, differentiated by OEM or inventory classification:

  • Western Digital Models:

    • WD3001BKHG

    • WD3001BKHG-18D22V1

  • Dell OEM Part Numbers:

    • 0CWHNN

    • CWHNN

Core Technical Specifications

  • Capacity: 300 GB

  • Interface: SAS 6Gb/s (Serial Attached SCSI)

  • Form Factor: 2.5-inch Small Form Factor (SFF)

  • Rotational Speed: 10,000 RPM

  • Cache Buffer: 32 MB

  • Hot-Swappable: Yes

Performance

  • Sustained Data Transfer Rate: Up to 204 MB/s (host to/from drive)

Reliability & Enterprise Features

  • MTBF: 1.75 to 2.0 million hours (BKHG models)

  • Dual-Port SAS: Yes (for high availability and failover)

  • RAFF Technology: Rotary Acceleration Feed Forward for vibration compensation

  • NoTouch™ Ramp Load Technology: Prevents media contact during spin-up/down

Power & Physical Characteristics

  • Power Consumption (Idle): ~5.2 W

  • Dimensions (Max):

    • Length: 100 mm

    • Width: 69.85 mm

    • Height: 15 mm

Workload & Use Case

This drive is optimized for performance-sensitive enterprise workloads, including:

  • Databases and transactional systems

  • Virtualized server environments

  • Enterprise applications requiring low latency

  • Tier-1 storage in legacy SAS infrastructures
