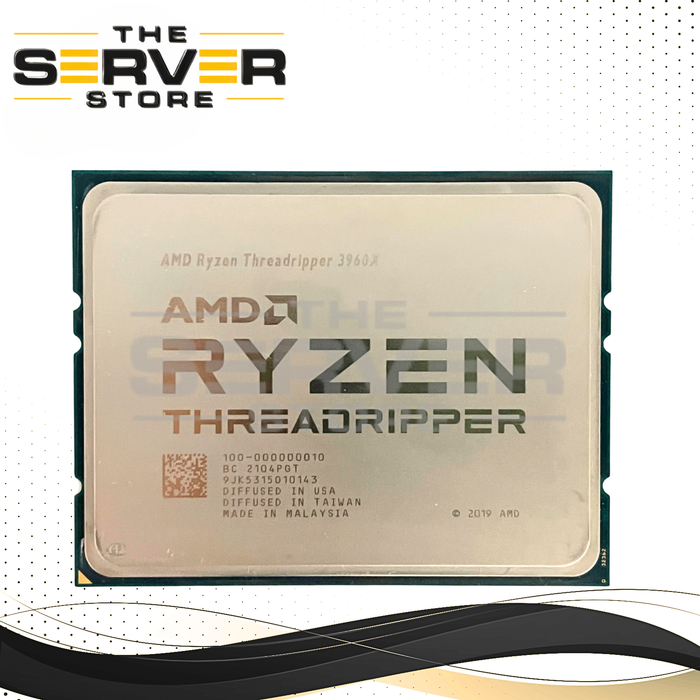

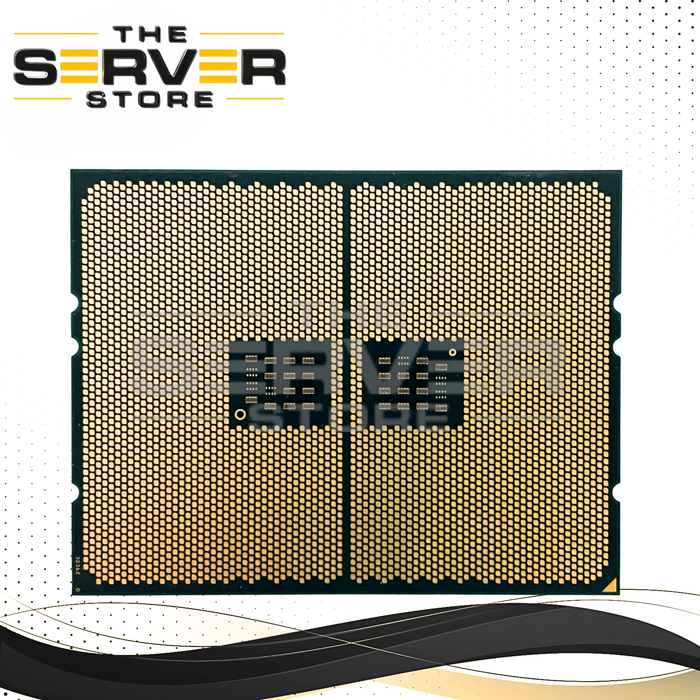

(UNLOCKED) AMD Ryzen Threadripper 3960X 3.8GHz 24C 128MB sTRX4 CPU 100-000000010
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | 100-000000010 (UNLOCKED) |
| Manufacturer | AMD |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Processors |
| Model | Ryzen Threadripper 3960X |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
AMD Ryzen Threadripper 3960X – 24-Core 48-Thread Processor
Part Number: 100-000000010
Base Clock: 3.8 GHz | Boost Clock: 4.5 GHz | Cache: 128 MB | Memory: Quad-Channel DDR4
Perfect for 3D rendering, video editing, CAD, multitasking, and high-performance workstations.
🧾 Product Specifications
| Feature | Specification |
|---|---|
| Model | AMD Ryzen Threadripper 3960X |
| Part Number | 100-000000010 |
| Architecture | Zen 2 (7nm) |
| Cores / Threads | 24 Cores / 48 Threads |
| Base Clock | 3.8 GHz |
| Max Boost Clock | Up to 4.5 GHz |
| Total L3 Cache | 128 MB |
| Total L2 Cache | 12 MB |
| Socket | sTRX4 |
| Memory Support | Quad-Channel DDR4 |
| Max Memory Speed | DDR4-3200 MHz |
| PCIe Version | PCIe 4.0 (88 total lanes) |
| TDP | 280 W |
| Unlocked Multiplier | Yes |
| Manufacturing Process | TSMC 7nm FinFET |
| Cooling Solution | Not included (requires liquid or high-end air cooler) |
| Launch Date | November 2019 |
Equipment Compatibility
1. Motherboards
-
Socket: sTRX4
-
Chipset: TRX40
Compatible Motherboards:
-
ASUS ROG Zenith II Extreme / Alpha
-
MSI Creator TRX40
-
GIGABYTE TRX40 AORUS Master
-
ASRock TRX40 Taichi
⚠️ Only TRX40 motherboards are supported. Not compatible with older X399 boards.
2. Cooling Solutions
-
TDP: 280W (high-performance cooling required)
Recommended:
-
AIO liquid coolers (360mm or larger)
-
Custom water cooling
-
High-end air coolers (sTRX4 support)
Examples:
-
Cooler Master MasterLiquid ML360 RGB TR4 Edition
-
Noctua NH-U14S TR4-SP3
-
Corsair H150i Pro (sTRX4 bracket)
⚠️ Stock cooler not included.
3. Memory (RAM)
-
Type: DDR4 (Quad Channel)
-
Max Speed: DDR4-3200 (OC supported)
Recommended:
-
Quad-channel kits (4x or 8x DIMMs)
-
ECC or non-ECC UDIMM
-
Min: 32 GB | Ideal: 64–128 GB
Quad-channel configuration delivers the best performance.
4. Storage
-
Interface: PCIe 4.0 (88 total lanes)
Compatible Storage:
-
NVMe Gen 4 SSDs (Samsung 980 PRO, WD Black SN850X)
-
SATA SSDs & HDDs
-
RAID configurations supported.
5. Graphics Cards (GPU)
-
Interface: PCIe 4.0
Examples:
-
NVIDIA GeForce RTX 30 / 40 Series
-
AMD Radeon RX 6000 / 7000 Series
-
NVIDIA Quadro / RTX A Series (workstation)
Multiple GPU support thanks to 88 PCIe lanes.
6. Power Supply (PSU)
-
Recommended Wattage: 850W+
Features:
-
80+ Gold or Platinum efficiency
-
EPS 12V connectors
-
Modular design
7. PC Cases
-
Form Factor: E-ATX or larger
Case Examples:
-
Lian Li PC-O11 Dynamic XL
-
Fractal Design Define 7 XL
-
Corsair 7000D Airflow
🛠️ Ensure proper airflow for optimal performance.
Quick Compatibility Checklist
-
TRX40 motherboard (sTRX4 socket)
-
High-performance CPU cooler
-
Quad-channel DDR4 RAM
-
PCIe 4.0 SSDs / GPUs
-
Strong PSU (850W+)
-
E-ATX case with good airflow
Conclusion – AMD Ryzen Threadripper 3960X Performance
The AMD Ryzen™ Threadripper™ 3960X is built for professionals, creators, and power users who demand the highest multi-core performance. With 24 cores, 48 threads, 128MB cache, and 88 PCIe 4.0 lanes, it’s ideal for 3D rendering, video editing, simulations, and heavy workloads.
Key Takeaways:
-
Requires TRX40 motherboard (sTRX4 socket)
-
High-performance cooling & PSU are essential
-
Best paired with quad-channel DDR4 and fast PCIe 4.0 SSDs
-
Perfect for workstation builds, content creation, and advanced multitasking.
Related Part Numbers
CPU
| Description | Part Number |
|---|---|
| AMD Ryzen Threadripper 3960X (Tray) | 100-000000010 |
| AMD Ryzen Threadripper 3960X (Retail) | 100-100000010WOF |
