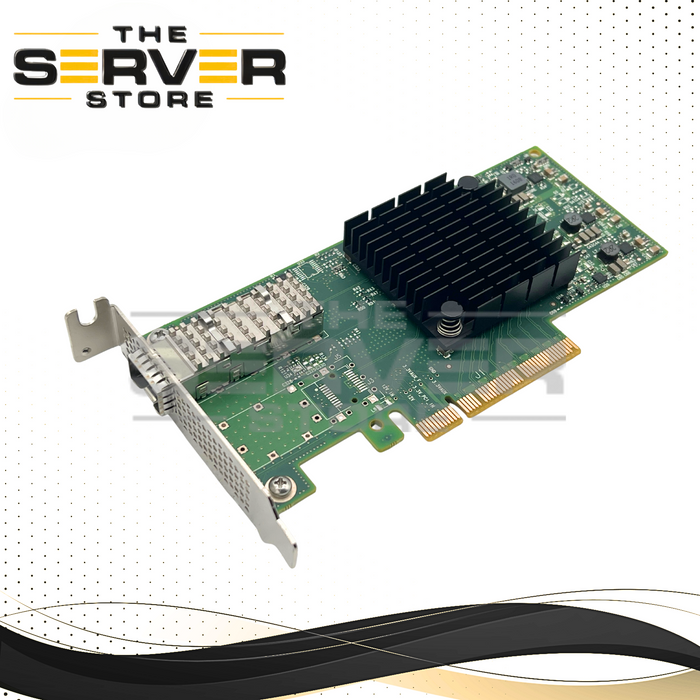

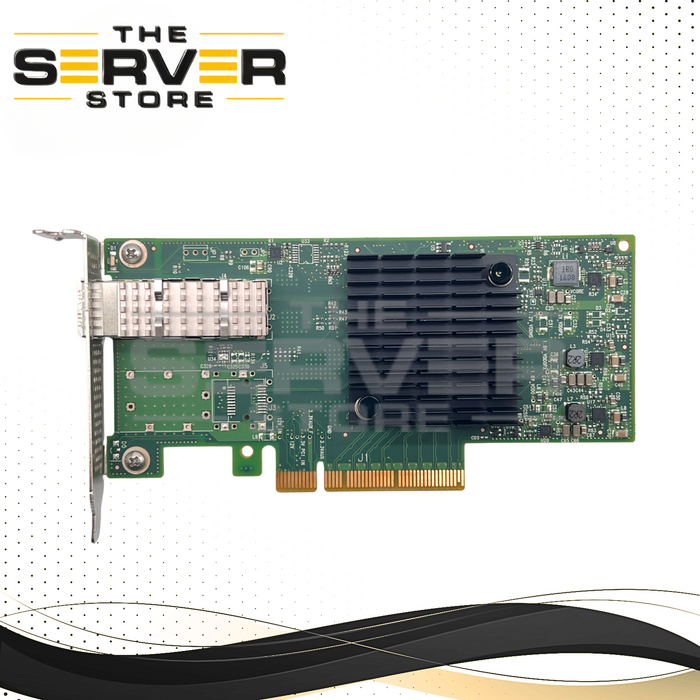

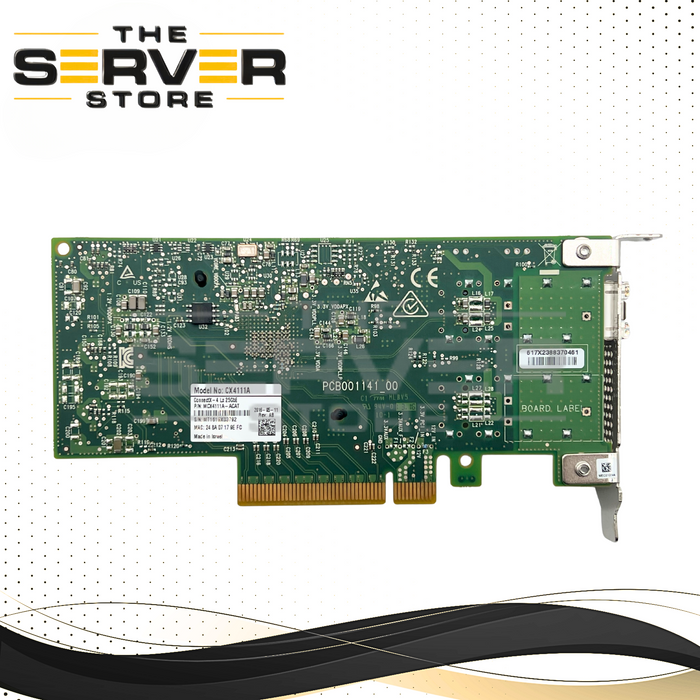

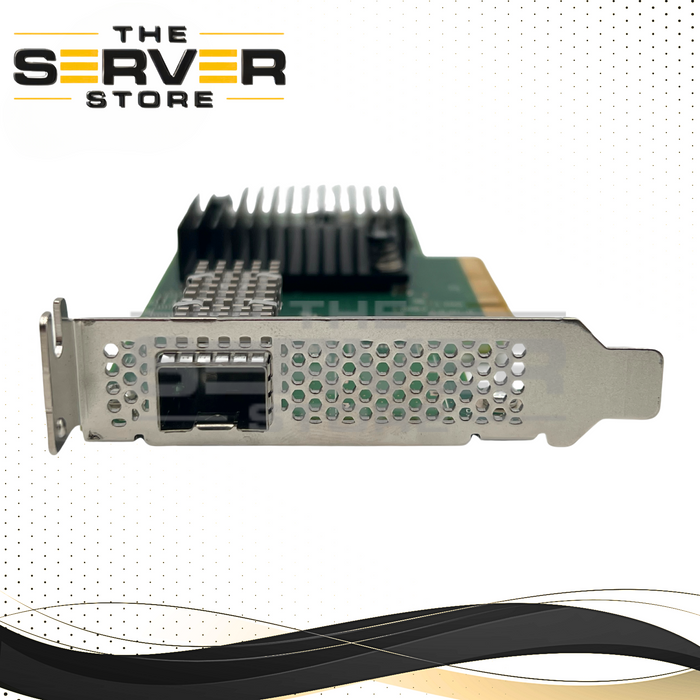

Mellanox ConnectX-4 Lx Single-Port 25GbE SFP28 PCIe 3.0 NIC MCX4111A-ACAT
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | MCX4111A-ACAT |
| Manufacturer | Mellanox (an NVIDIA company) |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Server Network Card |
| Model | ConnectX-4 Lx |
| Form Factor | Low Profile |
| Interface | PCIe |
| External Interfaces | 1x SFP28 Cage |
| Storage Capacity | |
| Transfer Rate | 25 Gbps |
| Network Management Type | |
| Processor Type | Mellanox ConnectX-4 Lx |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | ~9 W |
| Compatible Port | PCIe 3.0 x8 |
| Number of Ports | 1 |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
This is a Mellanox ConnectX-4 Lx EN Single-Port 25GbE SFP28 Network Adapter (P/N: MCX4111A-ACAT). This PCIe 3.0 card is an efficient and high-performance solution for providing 25-gigabit Ethernet connectivity to enterprise servers. It is engineered to deliver high bandwidth and low latency for demanding data center, cloud, and storage applications, with advanced offload engines to reduce CPU overhead.
Key Features
-
High-Speed 25GbE Connectivity: Features a single 25GbE SFP28 port, providing a significant performance upgrade over 10GbE for modern enterprise and cloud workloads.
- RDMA over Converged Ethernet (RoCE): Supports RoCE for direct memory access between servers, bypassing the CPU to deliver low-latency and high-efficiency data transfers, ideal for storage and HPC applications.
- Advanced Offloads: The ConnectX-4 Lx chipset provides numerous hardware offloads for TCP/IP, iSCSI, and FCoE protocols, freeing up CPU cycles for application processing.
-
Mellanox Performance: Built on the proven and widely-supported Mellanox ConnectX-4 Lx architecture, known for its robust performance and stability.
