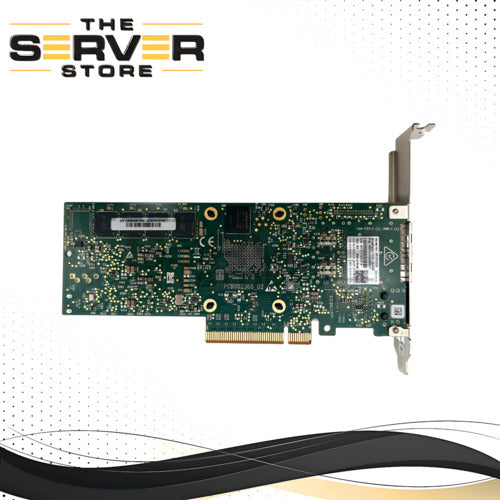

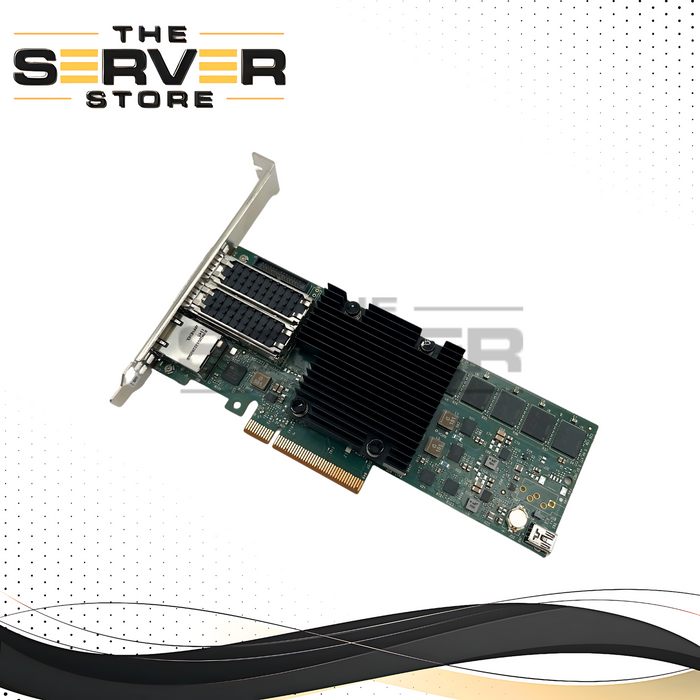

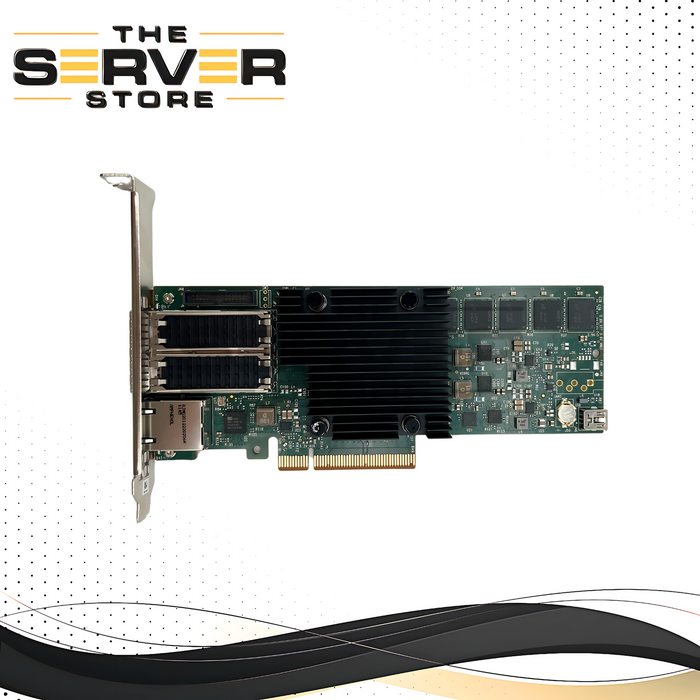

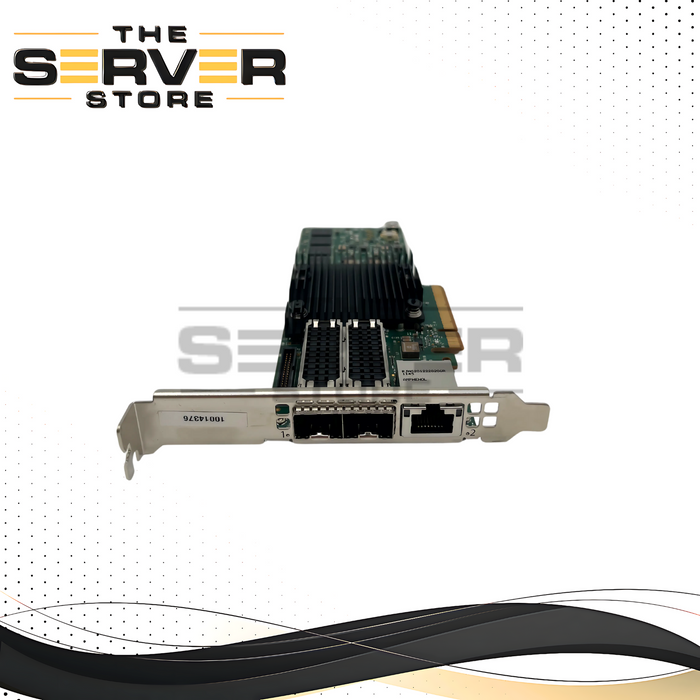

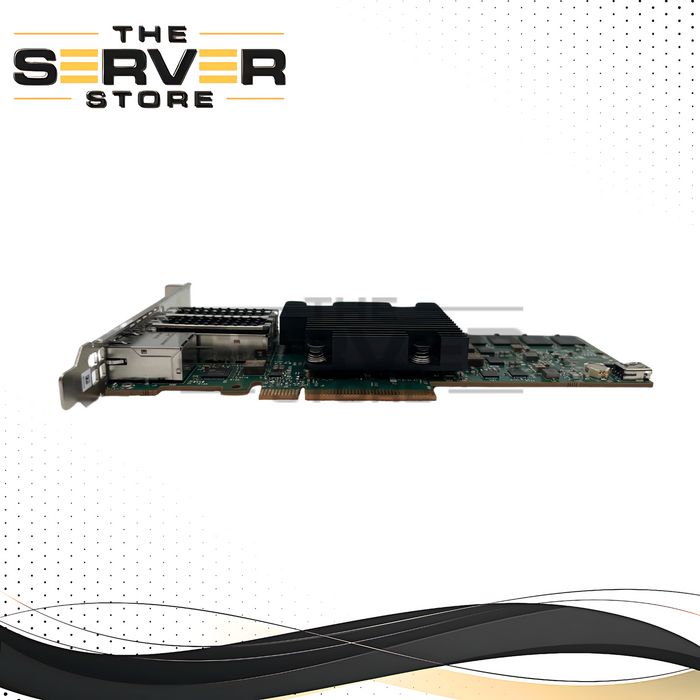

Mellanox BlueField-2 DPU 25GbE 2P SFP56 BF2H332A PCIe 4.0 x8 MBF2H332A-AECOT ( High Profile)
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | MBF2H332A-AECOT |
| Manufacturer | Mellanox |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Network Interface Cards (NICs) |
| Model | BF2H332A |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Mellanox BlueField-2 DPU 25GbE 2-Port SFP56 PCIe 4.0 x8
MBF2H332A-AECOT / BF2H332A
The Mellanox BlueField-2 Data Processing Unit (DPU), model MBF2H332A-AECOT, is a high-performance, Arm-based SmartNIC/DPU designed to offload, accelerate, and isolate infrastructure services such as networking, storage, and security. Combining an 8-core Arm CPU with dual 25GbE SFP56 connectivity, BlueField-2 enables advanced software-defined data center architectures using the NVIDIA DOCA framework.
Part Number Identification
The following part numbers refer to the same BlueField-2 DPU platform:
-
MBF2H332A-AECOT – Mellanox / NVIDIA Model (P-Series)
-
BF2H332A – Series / Chipset Identifier
Device Type & Classification
-
Device Type: Data Processing Unit (DPU) / SmartNIC
-
Series: Mellanox BlueField-2 (P-Series)
-
Primary Use: Infrastructure offload, SDN, SDS, and zero-trust security
Network & Host Interface
| Attribute | Specification |
|---|---|
| Network Ports | 2 × 25GbE SFP56 |
| Supported Speeds | 1GbE / 10GbE / 25GbE |
| Host Interface | PCI Express 4.0 x8 (backward compatible with PCIe 3.0 / 2.0 / 1.1) |
| Form Factor | Half-Height, Half-Length (HHHL) |
| Bracket | Full-height (tall) bracket included |
Compute & Memory
| Component | Specification |
|---|---|
| Processor | 8-core Armv8-A72, 64-bit, 2.5 GHz |
| System Memory | 16 GB DDR4 ECC (3200 MT/s) |
| On-Board Storage | 64 GB eMMC |
Offload & Acceleration Features
-
NVMe-over-Fabrics (NVMe-oF) offloads
-
RoCE (RDMA over Converged Ethernet)
-
ASAP² accelerated switching and packet processing
-
TCP/IP & UDP/IP offloading
-
VLAN and SR-IOV support
Security Capabilities
-
Crypto-enabled DPU
-
IPsec / TLS data-in-motion encryption
-
Secure Boot & Hardware Root of Trust
-
AES-GCM, AES-XTS, SHA hardware acceleration
Management & Power
-
Out-of-Band Management: 1 × 1GbE OOB port
-
Power Source: PCIe slot (12V)
-
Operating Temperature: 0°C to 55°C (32°F to 131°F)
Software & Ecosystem
-
Supported via: NVIDIA DOCA software framework
-
Compatible with Linux-based Arm ecosystems for custom application development, infrastructure services, and cloud-native workloads
