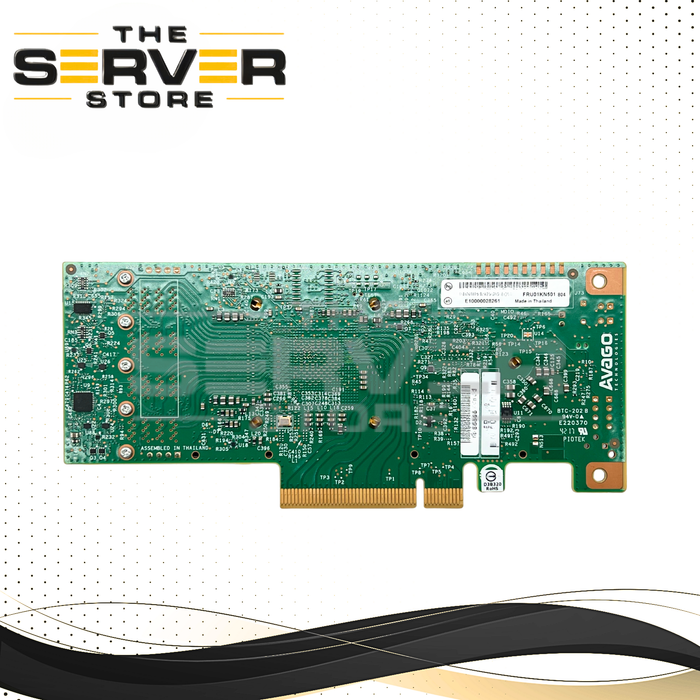

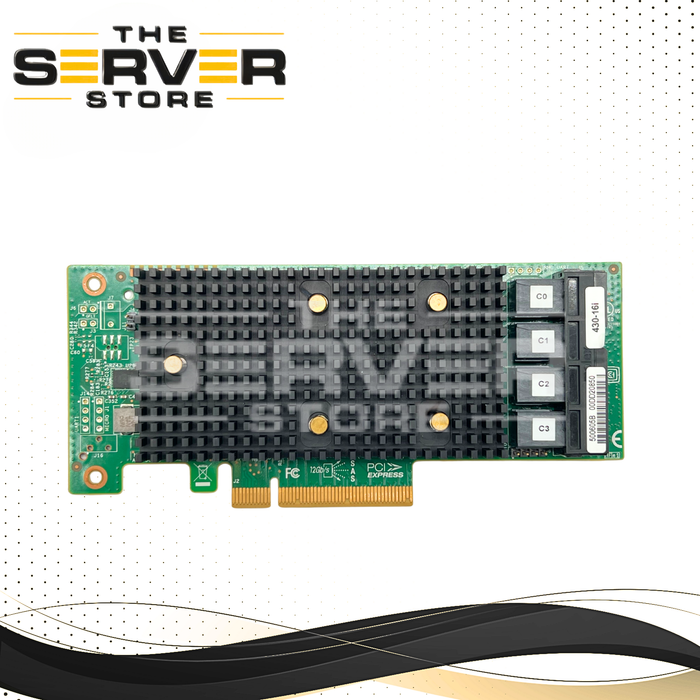

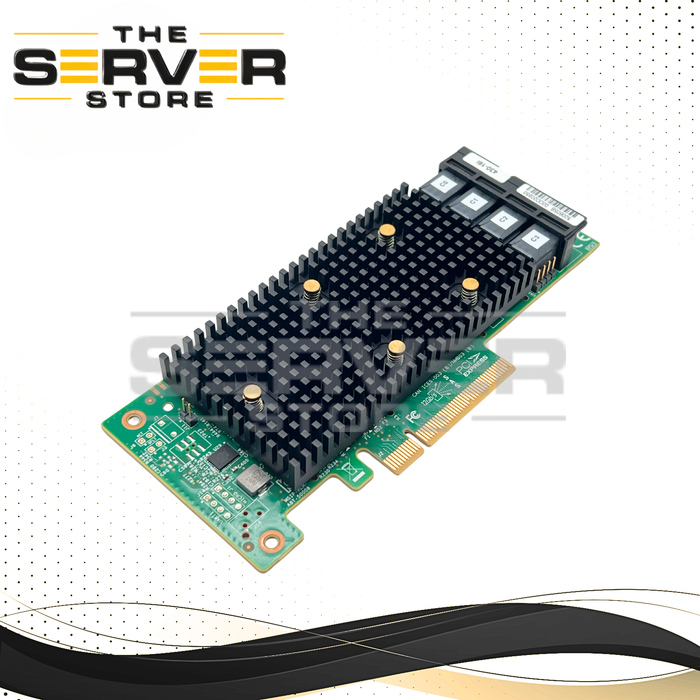

Lenovo SAS 430-16i SATA/SAS 12Gb PCIe Controller for ThinkSystem 01KN501
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | 01KN501 |
| Manufacturer | Lenovo |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Raid Controller Cards |
| Model | |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Lenovo SAS 430-16i SATA/SAS 12Gb PCIe Controller for ThinkSystem | 01KN501 — High-Performance HBA for Enterprise Storage
The Lenovo SAS 430-16i (Part Number 01KN501) is a high-performance Host Bus Adapter (HBA) designed to deliver direct, reliable SAS and SATA connectivity for Lenovo ThinkSystem servers. Optimized for SSD performance and high-density storage, this low-profile, half-length PCIe 3.0 x8 HBA enables seamless connection of up to 16 internal drives via four Mini-SAS HD (SFF-8643) connectors, offering blazing-fast 12Gbps per port data transfer speeds.
Unlike traditional RAID controllers, the SAS 430-16i operates in JBOD/pass-through mode, providing direct access to connected drives for maximum performance, ideal for enterprise environments requiring robust, low-latency storage without RAID overhead.
Key Specifications
| Feature | Specification |
|---|---|
| Part Number | 01KN501 |
| Device Type | High-performance HBA (non-RAID) |
| Form Factor | Low-profile, half-length plug-in card |
| Controller | Broadcom/LSI SAS3416 IOC |
| Ports | 16 internal SAS/SATA ports |

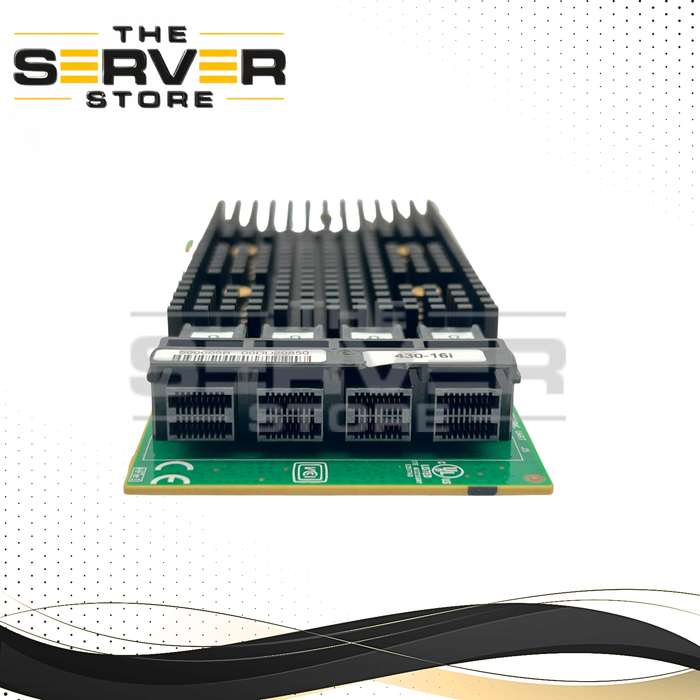

| Connectors | 4 × Mini-SAS HD (SFF-8643) internal x4 |
| Host Interface | PCIe 3.0 x8 |
| Data Transfer Rate | Up to 12Gbps per port (SAS 12/6/3Gbps, SATA 6/3Gbps) |
| Drive Types Supported | SAS, SATA, SSD, HDD, SED (with server software) |
| Cache | None |
| RAID Support | None (JBOD/pass-through only) |
| Included Accessories | Full-height / low-profile brackets |
| Management Interfaces | XClarity Provisioning Manager (UEFI), XClarity Controller (Web), LSI Storage Authority GUI |
Compatibility & OS Support
-
Lenovo ThinkSystem Servers: SR550, SR570, SR590, SR630, SR650, SR850, SR860, SR950, ST550
-
Supported Operating Systems:
-
Microsoft Windows Server 2012 R2 / 2016
-
Red Hat Enterprise Linux 7
-
SUSE Linux Enterprise Server 11 / 12
-
VMware vSphere ESXi 6.0 / 6.5
-
Enterprise Features & Benefits
-
High-speed 12Gb SAS/SATA connectivity for optimal SSD and HDD performance
-
Supports 16 internal drives via four x4 Mini-SAS HD connectors
-
Non-RAID design ensures raw drive access with minimal latency
-
Fully compatible with Lenovo ThinkSystem servers for plug-and-play deployment
-
Robust management options via XClarity and LSI Storage Authority interfaces
The Lenovo SAS 430-16i (01KN501) is the ideal HBA solution for enterprise storage applications, delivering high-speed, low-latency connectivity for SSDs and HDDs in high-density server environments, providing reliable raw storage access without RAID overhead.
