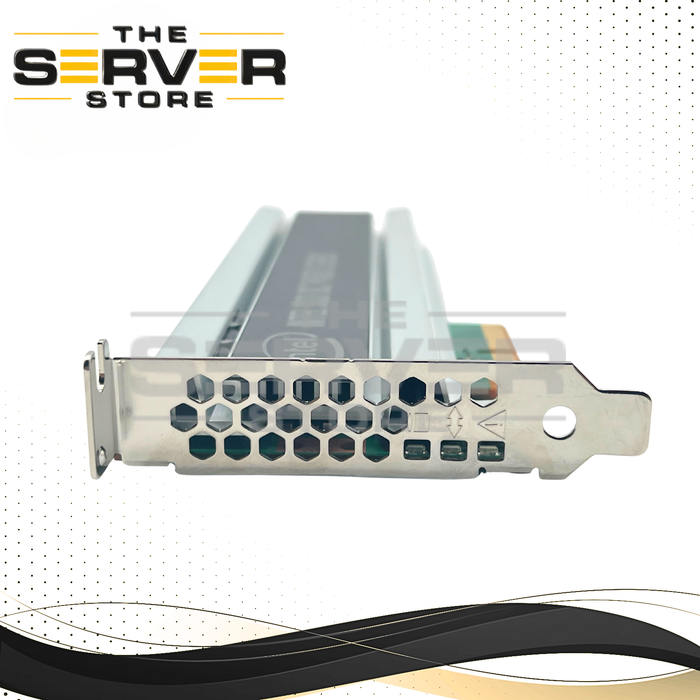

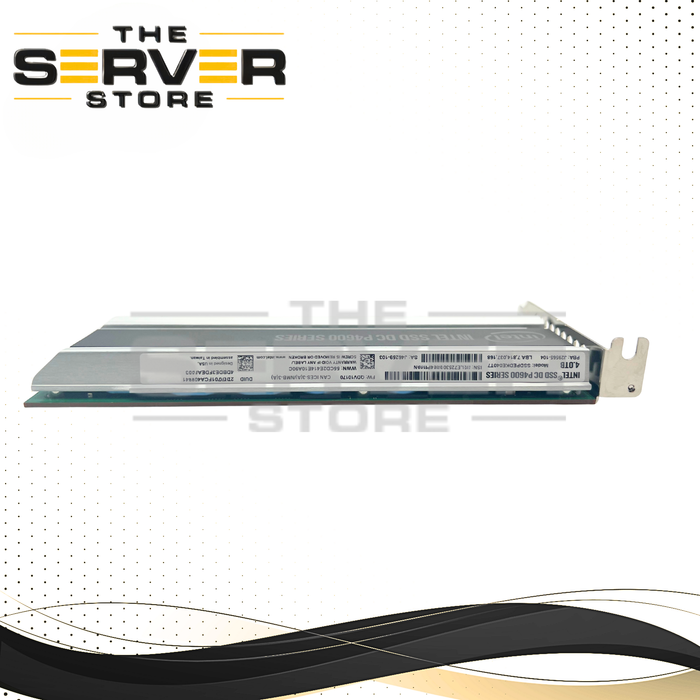

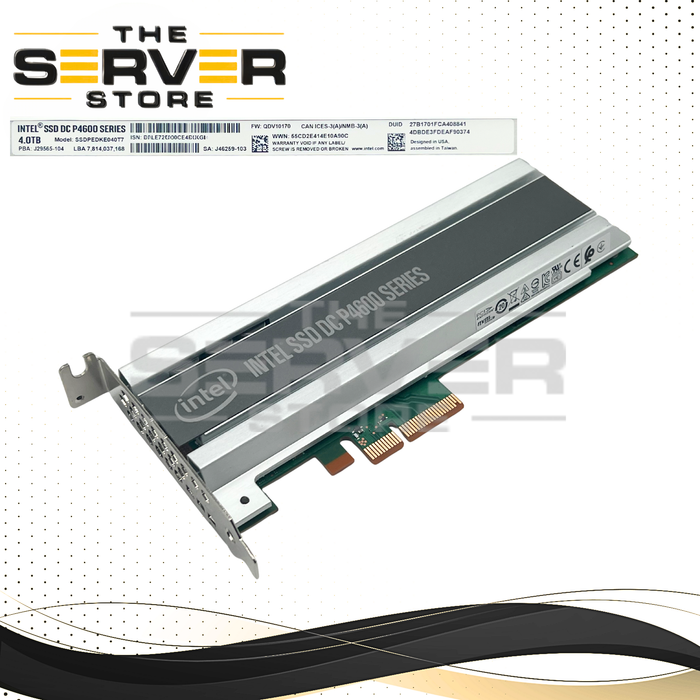

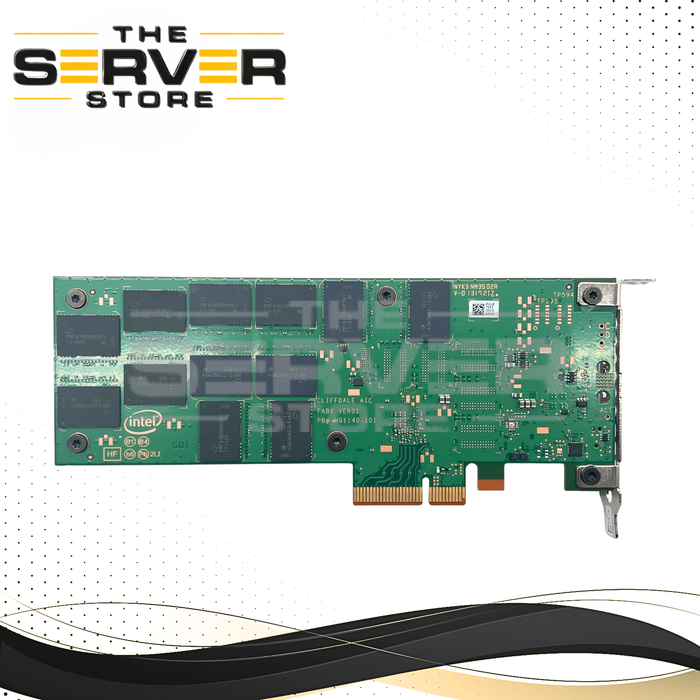

Intel 4TB NVMe MU PCIe Gen 3.0 x4 HHHL Add-in Card (AIC) SSD DC P4600 Series SSDPEDKE040T7

Intel 4TB NVMe MU PCIe Gen 3.0 x4 HHHL Add-in Card (AIC) SSD DC P4600 Series SSDPEDKE040T7

$0.00 - $0.00
$0.00
$759.99
$759.99 - $759.99
$759.99
SKU SSDPEDKE040T7
Availability:
50+ in stock

In-store Pickup

Local Pickup in Dallas, TX Available

Shopify Product Page with Tabs
  • Specifications
  • Description
Manufacturer Part Number SSDPEDKE040T7
Manufacturer Intel
Condition Refurbished
Standard Warranty 90 Day Replacement Warranty
Item Category Solid State Drives (SSD)
Model DC P4600 Series (Read Description)
Form Factor
Interface
External Interfaces
Storage Capacity
Transfer Rate
Network Management Type
Processor Type
Clock Speed
Number of Cores
Cache
Socket Type
TDP
Compatible Port
Number of Ports
CPU Type
HDD Form Factor
HDD Interface
HDD Rotation Speed
HDD Storage Capacity
HDD Transfer Rate
Memory Bus Speed
Memory Capacity Per Module
Memory Features
Memory Form Factor
Memory Kit Brand
Memory Kit Breakdown
Memory Kit Speed
Memory Kit Technology
Memory Kit Total Capacity
Memory Kit Voltage
Memory Number of Modules
Memory Number of Pins
Memory Total Capacity
Memory Type
Network Ports
Processor Model
SSD Capacity
SSD Interface
SSD Storage Capacity
SSD Transfer Rate
SSD Type

Intel 4TB NVMe MU PCIe Gen3 x4 HHHL AIC SSD DC P4600 Series SSDPEDKE040T7
Other Related Part Number: SSDPEDKE040T7

Overview

The Intel DC P4600 Series (SSDPEDKE040T7) is a high-performance Mixed Use (MU) enterprise NVMe SSD designed for data-intensive workloads such as databases, virtualization, AI training, and cloud infrastructure. Built in a Half-Height Half-Length (HHHL) Add-In Card (AIC) form factor, it installs directly into a PCIe slot, delivering ultra-low latency and high throughput.

Core Specifications

  • Capacity: 4TB
  • Interface: PCIe 3.1 x4, NVMe 1.2
  • Form Factor: HHHL Add-In Card (AIC)
  • NAND Type: Intel 3D TLC NAND
  • Workload Type: Mixed Use (MU)

Performance

  • Sequential Read: Up to 3,290 MB/s
  • Sequential Write: Up to 2,100 MB/s
  • Random Read (4KB): Up to 700,000 IOPS
  • Random Write (4KB): Up to 220,000 IOPS
  • Latency: ~79 µs (Read) / ~34 µs (Write)

Reliability & Endurance

  • Endurance: ~21.7 PBW (~3 DWPD for 5 years)
  • MTBF: 2,000,000 hours
  • UBER: < 1 per 10¹⁷ bits read

Features & Security

  • AES 256-bit hardware encryption
  • Power Loss Data Protection
  • End-to-End Data Protection
  • Thermal monitoring & logging

Power & Environmental

  • Active Power: ~20.7W (write) / ~9.8W (read)
  • Idle Power: <5W
  • Operating Temperature: 0°C to 55°C
  • Shock: 1000G / Vibration: 2.17 GRMS

Server Compatibility by Manufacturer & Generation

Dell PowerEdge

  • 13G (Limited NVMe Support): R630, R730 (PCIe usage only, no native front NVMe)
  • 14G: R640, R740, R740xd, R940, T440, T640
  • 15G: R650, R750, C6525
  • 16G: R660, R760, T560
  • 17G: R670, R770

HPE ProLiant

  • Gen9: DL360 Gen9, DL380 Gen9 (requires NVMe enablement kits)
  • Gen10: DL360 Gen10, DL380 Gen10, ML350 Gen10
  • Gen10 Plus: DL360 Gen10+, DL380 Gen10+
  • Gen11: DL320 Gen11, DL360 Gen11, DL380 Gen11, ML110 Gen11

Lenovo ThinkSystem

  • System x (Pre-ThinkSystem): x3550 M5, x3650 M5, x3850 X6
  • ThinkSystem Gen1: SR630, SR650, SR850, SR950, ST550
  • ThinkSystem V2 / V3: SR630 V2, SR650 V2, SR650 V3, ST650 V3

Cisco UCS

  • M4: C220 M4, C240 M4
  • M5: C220 M5, C240 M5, C480 M5
  • M6: C220 M6, C240 M6
  • M7 / M8: C220 M7, C240 M7

Supermicro

  • X10: Limited NVMe (boot not always supported)
  • X11: Full PCIe NVMe support (e.g., SYS-1029U, SYS-2029U)
  • X12: Optimized NVMe performance (Ice Lake platforms)
  • X13: Latest generation with PCIe Gen4/Gen5 backward compatibility

ASUS / Other Server Boards

  • Compatible with PCIe-enabled server/workstation boards such as:
    • ASUS Z10 / Z11 / Z12 server platforms
    • Gigabyte server boards with PCIe Gen3+
    • Tyan EPYC/Xeon platforms

Compatibility Notes

  • Requires available PCIe x4/x8/x16 slot (HHHL clearance).
  • Not compatible with 2.5" drive bays (AIC form factor only).
  • NVMe boot requires UEFI BIOS support.
  • OEM servers may show “non-certified” warnings, but functionality is unaffected.
  • Not managed by traditional RAID controllers (uses OS or NVMe RAID like Intel VROC).

Summary

The Intel DC P4600 SSDPEDKE040T7 is a Mixed Use (MU) enterprise NVMe AIC SSD offering high endurance (~3 DWPD), extreme IOPS, and broad cross-platform compatibility. It is ideal for high-performance enterprise workloads where both read and write performance are critical.
