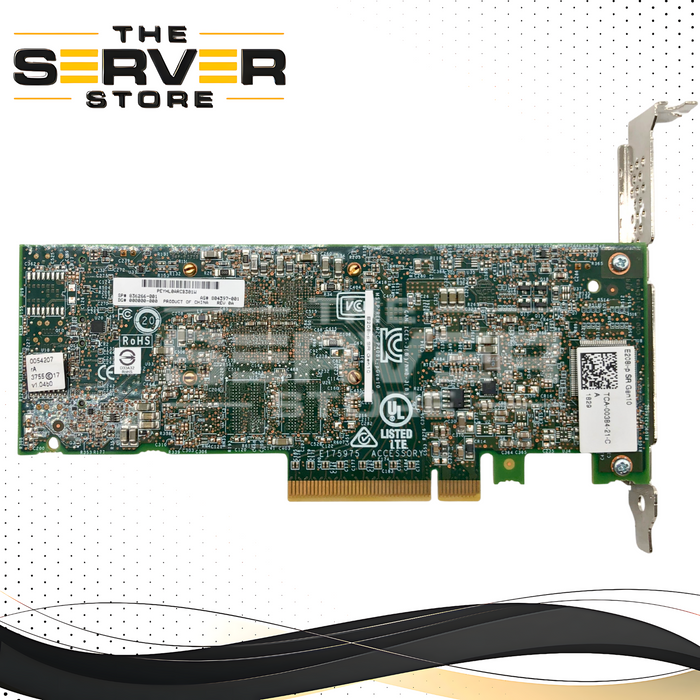

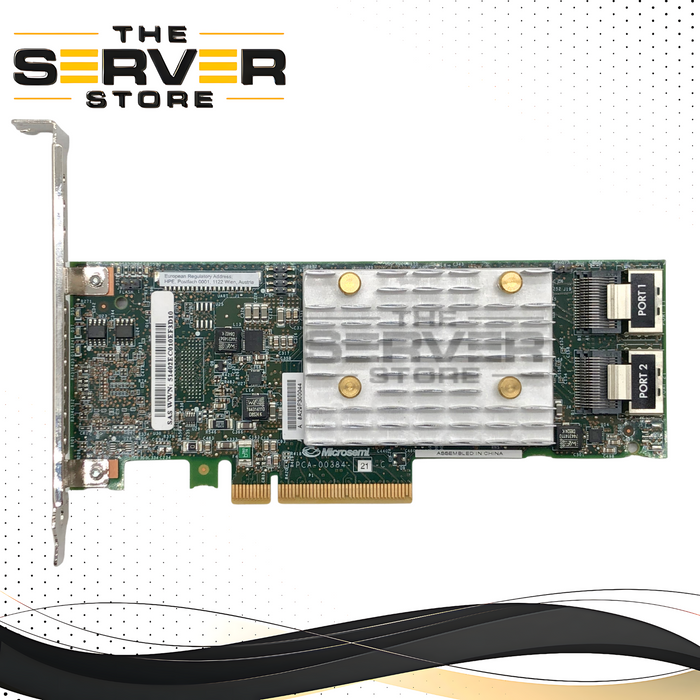

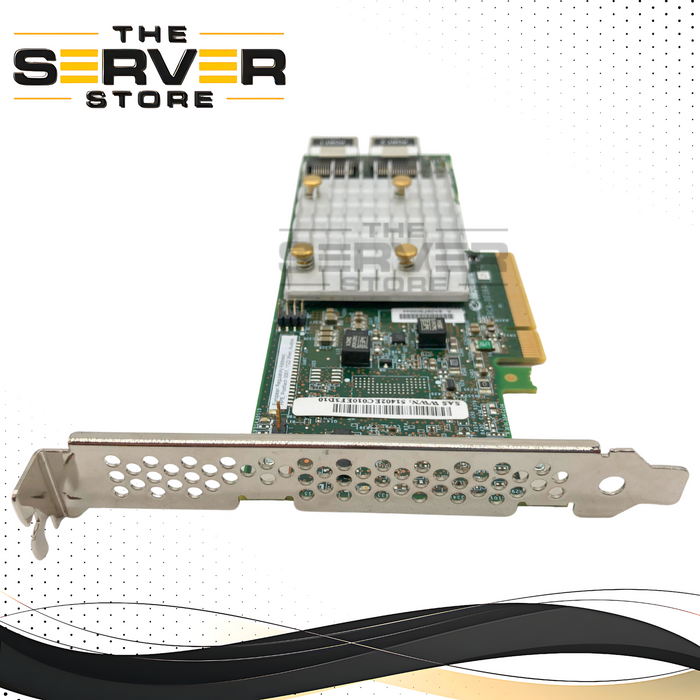

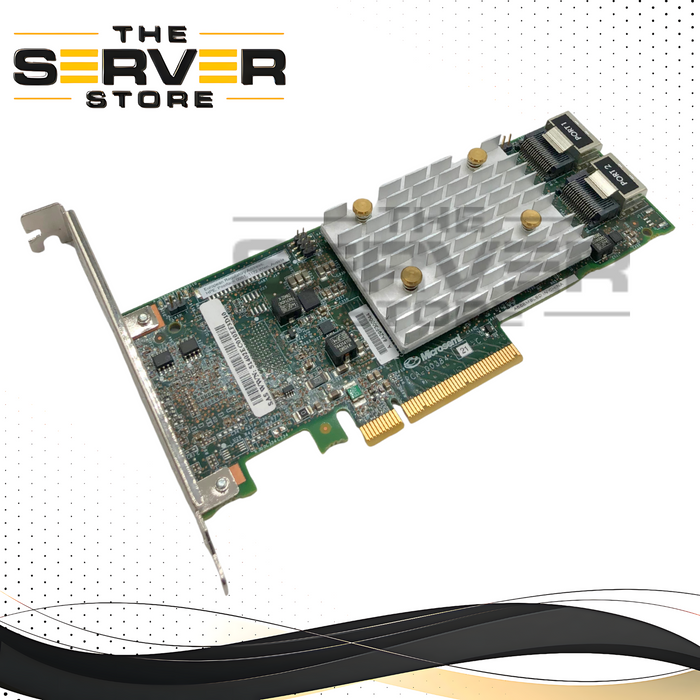

HPE Smart Array E208i-p SR 8-Port 12Gb/s SAS/SATA PCIe RAID Controller for ProLiant Gen10 Servers. RAID 0, 1, 5, 10. P/N: 836266-001.
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | 836266-001, 804397-001 |
| Manufacturer | HPE |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | RAID Controller |
| Model | Smart Array E208i-p SR Gen10 |
| Form Factor | PCIe Add-in Card |
| Interface | SAS, SATA |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | 12 Gb/s (SAS), 6 Gb/s (SATA) |
| Network Management Type | HPE Smart Storage Administrator (SSA) |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | ~9W |
| Compatible Port | PCIe 3.0 x8 |
| Number of Ports | 2 (x4 internal Mini-SAS) |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
This is an HPE Smart Array E208i-p SR 12Gb/s SAS/SATA PCIe RAID Controller (P/N: 836266-001). This adapter is designed to provide reliable and efficient storage management for internal drives in HPE ProLiant Gen10 servers. The E208i-p is a cost-effective, entry-level controller that supports essential RAID levels (0, 1, 5, 10) and is ideal for workloads that require solid performance and data protection without the need for a cache module.
Key Features
- 12Gb/s SAS/SATA Interface: Supports high-speed 12Gb/s SAS and 6Gb/s SATA drives, ensuring compatibility with a wide range of modern server storage.

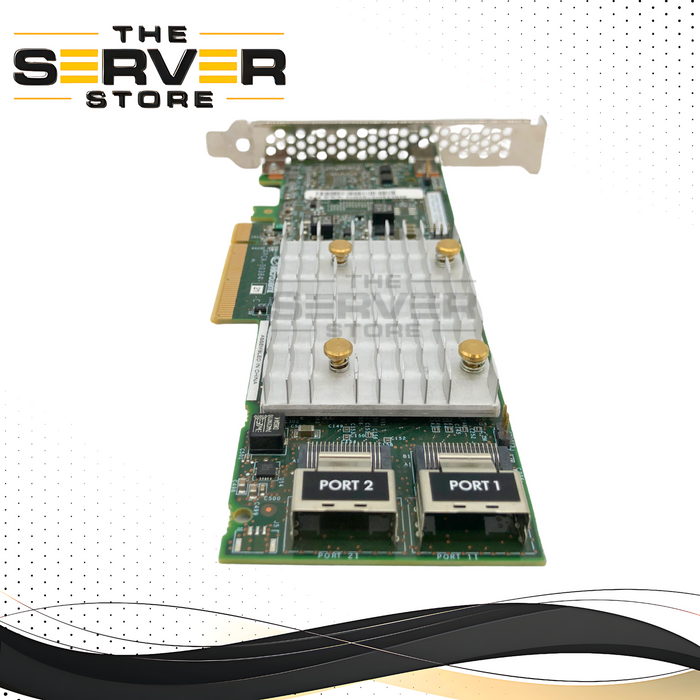

- 8 Internal SAS Lanes: Features eight internal SAS lanes across two x4 Mini-SAS ports, allowing connection of up to 8 internal drives.
- PCIe 3.0 x8 Link: Utilizes a PCI Express 3.0 x8 interface for high-bandwidth connectivity to the server's motherboard.
-
Standard PCIe Form Factor: This "i-p" (internal PCIe) model is a standard full-height, half-length PCIe add-in card, making it suitable for a wide array of ProLiant Gen10 servers with available PCIe slots.
- RAID Levels 0, 1, 5, 10: Provides essential RAID capabilities for data protection and performance enhancement for various applications.
-
No Cache for Cost-Effectiveness: This controller is designed without a flash-backed write cache, making it a more economical choice for workloads where high write performance is not the primary requirement.
