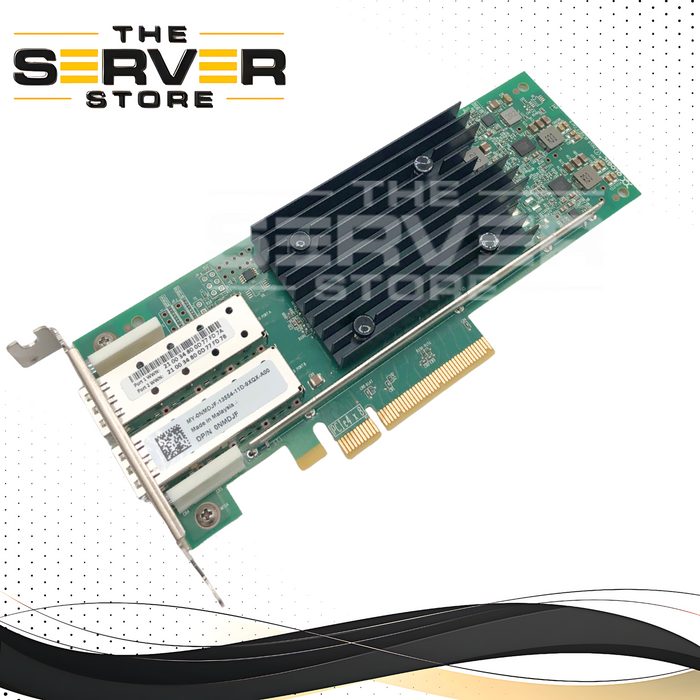

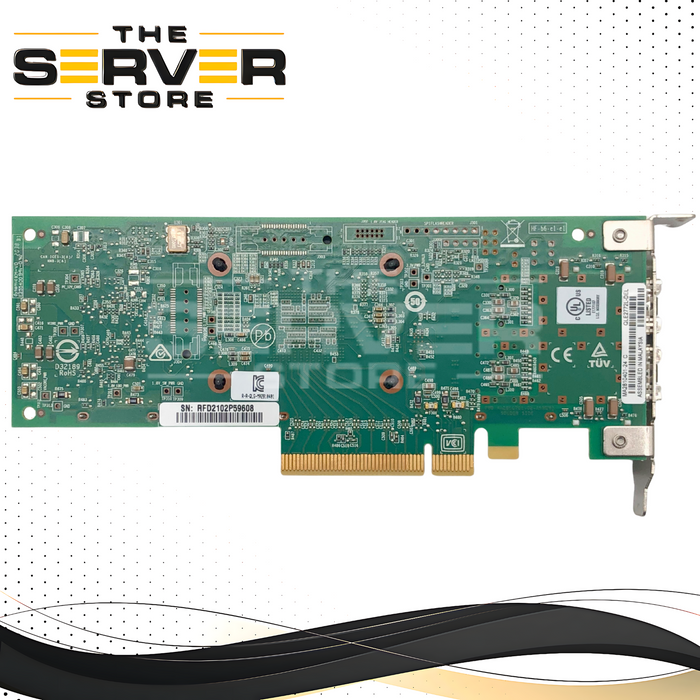

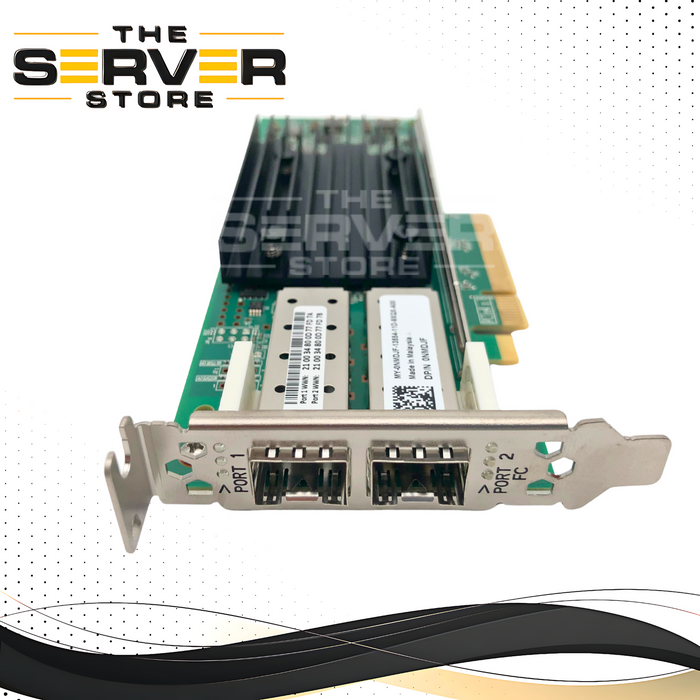

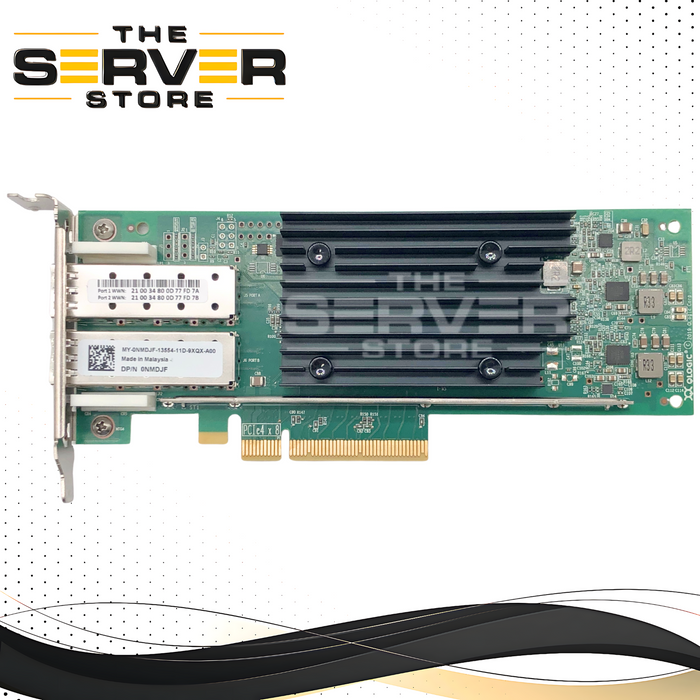

Dell QLogic QLE2772L 32Gb Dual Port Fibre Channel (FC) SFP+ Host Bus Adapter (HBA) PCIe 4.0 x8 MA2810401-24 0NMDJF NMDJF
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | QLE2772L-DEL, MA2810401-24, 0NMDJF, NMDJF |
| Manufacturer | QLogic |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Fibre Channel HBA |
| Model | QLE2772L |
| Form Factor | Low Profile PCI-E Card |
| Interface | 32Gb Fibre Channel |
| External Interfaces | 2x SFP+ Ports |
| Storage Capacity | |
| Transfer Rate | 32 Gb/s (per port) |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | PCI Express 4.0 (x8) |
| TDP | |
| Compatible Port | PCI Express Slot |
| Number of Ports | 2 |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |
Dell QLogic QLE2772L 32Gb Dual Port Fibre Channel (FC) SFP+ HBA PCIe 4.0 x8 MA2810401-24 0NMDJF NMDJF
The Dell QLogic QLE2772L (0NMDJF / NMDJF) is a high-performance dual-port 32Gb Fibre Channel Host Bus Adapter (HBA) built on the Marvell QLogic 2770 series architecture. Designed for enterprise storage environments, it delivers ultra-fast throughput, low latency, and advanced NVMe over Fibre Channel support for modern data centers.
Related Part Numbers
QLE2772L-DEL, 0NMDJF, NMDJF, MA2810401-24
Core Technical Specifications
- Ports: Dual-Port 32Gb Fibre Channel (SFP+)
- Data Rate: 32Gbps per port (auto-negotiates to 16Gb / 8Gb)
- Host Interface: PCIe Gen4 x8
- Form Factor: Low-profile PCIe card
- Dimensions: Approx. 6.6" x 2.73"
Performance
- Throughput: Up to 25.6 Gbps full duplex
- IOPS: Up to 4 million IOPS (aggregate)
- Low Latency: Optimized for high-speed SAN environments
Key Features
-
NVMe over Fibre Channel (FC-NVMe):
Supports both traditional FCP (SCSI) and NVMe, enabling seamless transition to next-gen storage -
Port Isolation Architecture:
Each port operates independently with its own CPU, DMA channels, and firmware to prevent cross-port failures -
High Scalability:
- Up to 2,048 concurrent logins per port
- Up to 2,048 active exchanges per port
-
Marvell StorFusion™ Technology:
Simplifies deployment, enhances diagnostics, and improves SAN performance -
Energy Efficiency:
Up to 3x better IOPS per watt compared to previous-generation HBAs
Compatibility
- Designed for Dell PowerEdge servers and other enterprise systems with PCIe Gen4/Gen3 x8 slots
- Compatible with Fibre Channel SAN environments
- Supports major operating systems:
- Windows Server
- Linux (RHEL, SLES, Ubuntu)
- VMware ESXi
Important Notes
- Requires SFP+ Fibre Channel transceivers and fiber cables (sold separately)
- Backward compatible with 16Gb and 8Gb FC infrastructure
- Ensure SAN switch compatibility for full 32Gb performance
Summary
The Dell QLogic QLE2772L 32Gb FC HBA is an enterprise-grade solution for high-performance storage networking. With dual-port connectivity, PCIe Gen4 bandwidth, and support for both traditional Fibre Channel and NVMe, it is ideal for virtualization, cloud infrastructure, and mission-critical workloads requiring maximum speed and reliability.
