Dell PowerEdge PERC H750 8GB NV Cache 12Gb/s SAS PCIe 4.0 x8 RAID Controller. P/N: 1G44R, 01G44R.
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | 1G44R, 01G44R, 01042DT00-000-G |
| Manufacturer | Dell |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | RAID Controller Card |
| Model | PERC H750 |
| Form Factor | Low Profile - Add-in Card |
| Interface | SAS / SATA |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | 12 Gb/s |
| Network Management Type | |
| Processor Type | Broadcom SAS3908 |
| Clock Speed | 1.2 GHz (Dual-Core) |
| Number of Cores | 2 |
| Cache | 8 GB |
| Socket Type | |
| TDP | ~30 W |
| Compatible Port | RAID 0, 1, 5, 6, 10, 50, and 60 |
| Number of Ports | 8 (internal) |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |

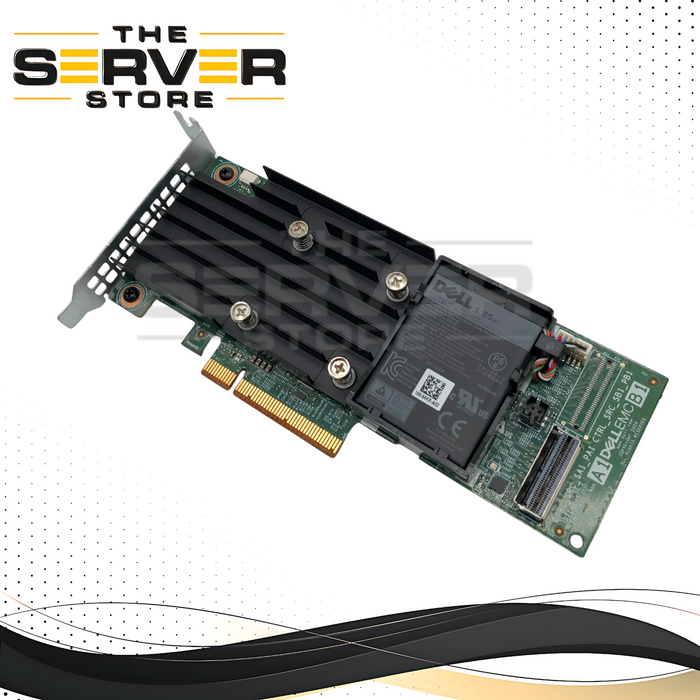

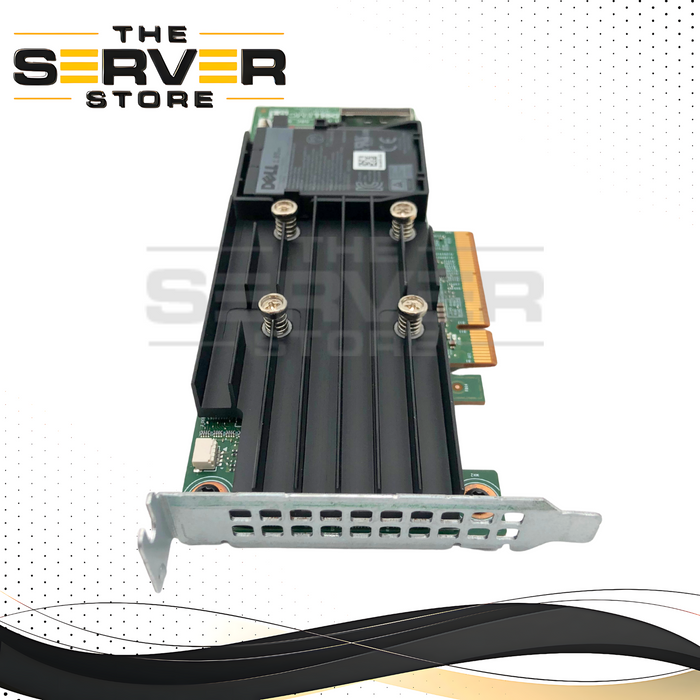

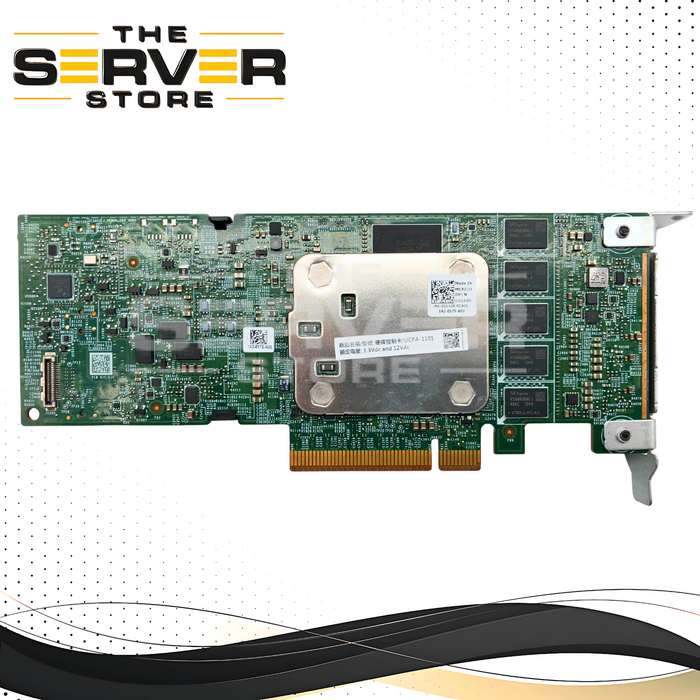

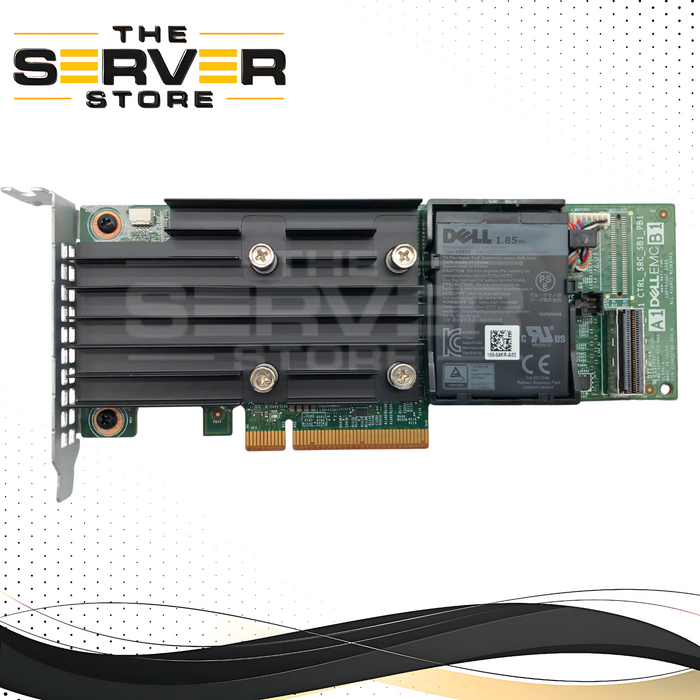

This is a genuine Dell PowerEdge RAID Controller (PERC) H750 with 8GB of Non-Volatile Cache (P/N: 1G44R). This is a high-performance adapter, engineered for Dell's latest generation of PowerEdge servers. It provides enterprise-class storage performance, data protection, and scalability, leveraging a PCIe 4.0 host interface to deliver maximum throughput for the most demanding, data-intensive applications.
Key Features
-
PCIe 4.0 Performance: A key feature is its PCIe 4.0 x8 host interface, which offers double the bandwidth of the previous generation. This ensures the controller can handle the full throughput of multiple high-speed SAS or SATA drives without bottlenecks.
-
Massive 8GB NV Cache: The large 8GB Non-Volatile Cache dramatically accelerates I/O performance, especially for write-intensive applications, and protects data integrity in the event of a sudden power loss.
-
12Gb/s SAS Connectivity: Features the high-speed 12Gb/s SAS 3.0 interface, providing top-tier performance for the latest SAS and SATA SSDs and hard drives.
-
Advanced RAID Levels: Supports a full suite of RAID levels, including RAID 0, 1, 5, 6, 10, 50, and 60, for ultimate flexibility in data protection and performance optimization.
-
Dell Certified: As a genuine Dell part, it ensures seamless integration, reliability, and full support within the Dell OpenManage ecosystem.
