Dell PERC H330 SAS 12G / SATA 6G PCIe 3.0 x8 Raid Controller Card 04Y5H1 4Y5H1
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$41.99
$41.99
-
$41.99
Current price
$41.99
SKU 4Y5H1
Availability:
Only 3 left!
In-store Pickup
Local Pickup in Dallas, TX Available
- Specifications
- Description
| Manufacturer Part Number | 04Y5H1 / 4Y5H1 |
| Manufacturer | Dell |
| Condition | Refurbished |
| Standard Warranty | 90 Day Replacement Warranty |
| Item Category | Raid Controller Cards |
| Model | |
| Form Factor | |
| Interface | |
| External Interfaces | |
| Storage Capacity | |
| Transfer Rate | |
| Network Management Type | |
| Processor Type | |
| Clock Speed | |
| Number of Cores | |
| Cache | |
| Socket Type | |
| TDP | |
| Compatible Port | |
| Number of Ports | |
| CPU Type | |
| HDD Form Factor | |
| HDD Interface | |
| HDD Rotation Speed | |
| HDD Storage Capacity | |
| HDD Transfer Rate | |
| Memory Bus Speed | |
| Memory Capacity Per Module | |
| Memory Features | |
| Memory Form Factor | |
| Memory Kit Brand | |
| Memory Kit Breakdown | |
| Memory Kit Speed | |
| Memory Kit Technology | |
| Memory Kit Total Capacity | |
| Memory Kit Voltage | |
| Memory Number of Modules | |
| Memory Number of Pins | |
| Memory Total Capacity | |
| Memory Type | |
| Network Ports | |
| Processor Model | |
| SSD Capacity | |
| SSD Interface | |
| SSD Storage Capacity | |
| SSD Transfer Rate | |
| SSD Type |

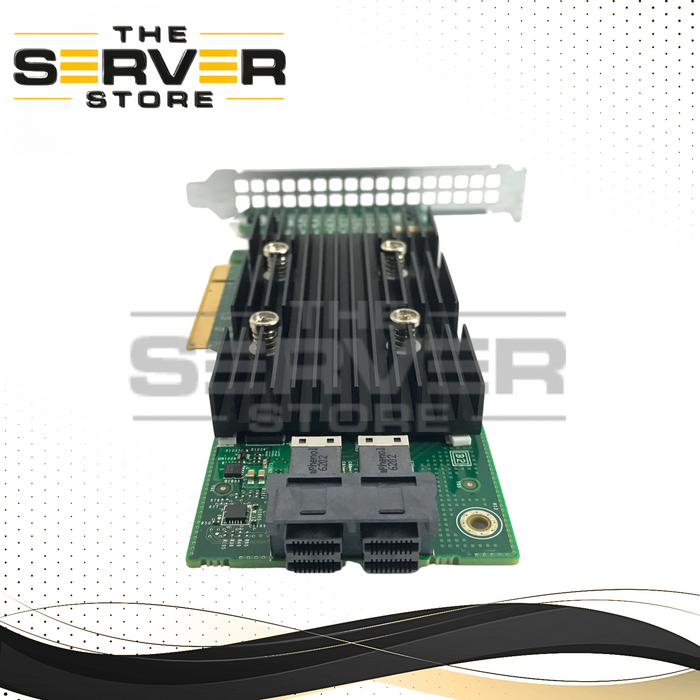

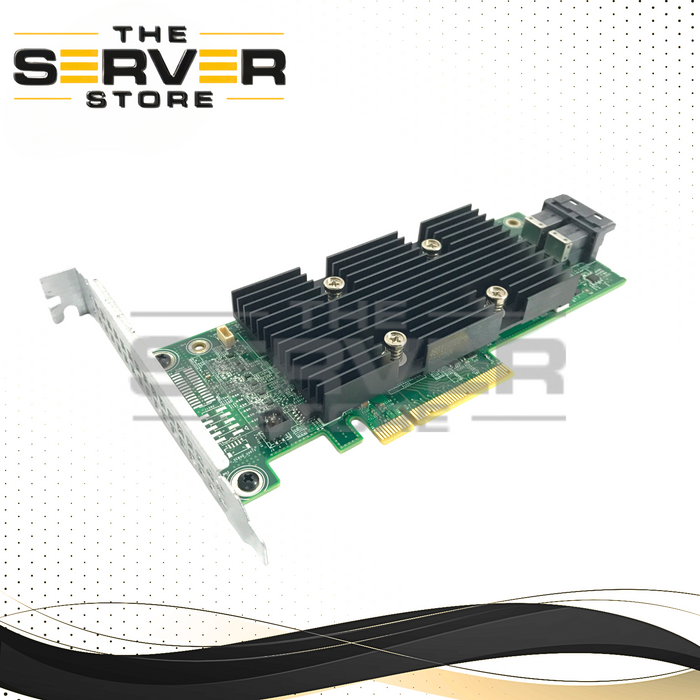

Dell PERC H330 SAS 12G / SATA 6G PCIe 3.0 x8 RAID Controller Card (04Y5H1 / 4Y5H1)
The Dell PERC H330 (04Y5H1 / 4Y5H1) is an entry-level hardware RAID controller designed for Dell PowerEdge 13th and 14th generation servers. Built on the LSI SAS3008 chipset, this controller provides reliable storage performance and supports both SAS and SATA drives with flexible RAID and HBA functionality.
Core Product Identification
- Manufacturer: Dell Technologies Inc.
- Part Numbers: 04Y5H1, 4Y5H1
- Additional Part Numbers: H330, 0101A6100-000-G, UCSA-901
- Component Type: PCIe RAID Controller Card
- Interface: PCIe 3.0 x8
Performance & Architecture
- Controller Chipset: LSI SAS3008
- Data Transfer Rates:
- SAS: Up to 12Gb/s
- SATA: Up to 6Gb/s
- Cache Memory: None (0MB)
- Ports: 8 internal lanes via 2x SFF-8643 Mini-SAS HD connectors
RAID & Drive Support
- Supported RAID Levels: RAID 0, 1, 5, 10, 50
- HBA / Passthrough Mode: Supported
- Maximum Drives: Up to 128 devices
- Drive Types: SAS and SATA (3Gb/s, 6Gb/s, 12Gb/s supported)
Features
- Online Capacity Expansion (OCE)
- RAID Level Migration (RLM)
- Hot-plug support
- Global hot spare support
- TRIM / UNMAP support
- Native Command Queuing (NCQ)
- 4K sector (4Kn) support
- Power management support
Physical Specifications
- Form Factor: PCIe add-in card
- Bracket: High-profile / low-profile compatible
- Dimensions: Approx. 6.6" x 2.5"
Compatibility
13th Generation Dell PowerEdge (13G)
Rack: R230, R330, R430, R530, R630, R730, R730xd, R830, R930
Tower: T130, T330, T430, T630
14th Generation Dell PowerEdge (14G)
Rack: R240, R340, R440, R540, R640, R740, R740xd, R740xd2, R840, R940
Tower: T340, T440, T640
Additional Compatibility
- Works with systems that support PCIe x8 or x16 slots
- Suitable for custom server builds and storage platforms
Compatibility Notes
- SAS drives operate at up to 12Gb/s and SATA drives at up to 6Gb/s
- Supports SAS and SATA drives simultaneously (separate RAID arrays required)
- Low-profile bracket may be needed for certain rack servers
- Requires compatible Mini-SAS HD (SFF-8643) cables
Included Components
- Dell PERC H330 RAID Controller Card
Compatible Part Numbers
- 04Y5H1
- 4Y5H1
- H330
- 0101A6100-000-G
- UCSA-901
