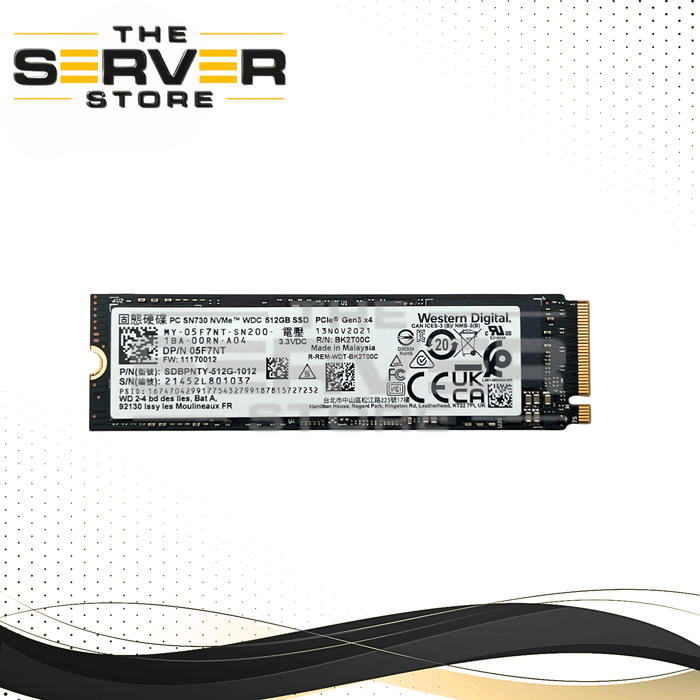

Dell 512GB NVMe 2280 M.2 PCIe Gen 3 x4 SSD WD SN730
SDBPNTY-512G-1012 / 05F7NT / 5F7NT
The Dell 512GB NVMe M.2 SSD, based on the Western Digital SN730 platform, is a client-class solid-state drive designed for high-performance laptops, desktops, and compact systems. Utilizing a PCIe Gen 3.0 x4 NVMe interface, it delivers fast boot times, responsive application performance, and efficient power usage.
Part Number Identification
The following part numbers all reference the same WD SN730 512GB NVMe M.2 drive:
-
SDBPNTY-512G-1012 – Western Digital / SanDisk Model
-
05F7NT / 5F7NT – Dell OEM Part Numbers
Device Type & Classification
-
Device Type: Solid State Drive (SSD)
-
Class: Client-class NVMe SSD
-
Intended Use: Laptops, desktops, workstations, and small form factor systems
Technical Specifications
| Attribute | Specification |
|---|---|
| Capacity | 512 GB |
| Interface | PCI Express Gen 3.0 x4, NVMe 1.3 |
| Form Factor | M.2 2280 (22 mm × 80 mm) |
| NAND Flash Type | WD / SanDisk 64-layer 3D TLC NAND |
| Sequential Read | Up to 3,400 MB/s |
| Sequential Write | Up to 2,700 MB/s |
| Random Read (4KB) | Up to 420,000 IOPS |
| Random Write (4KB) | Up to 380,000 IOPS |
| Endurance | 300 TBW |
| MTTF | 1,750,000 hours |
Power & Efficiency
-
Active Power Consumption: ~4 W – 5 W (typical)
-
Optimized for: Low power draw and mobile environments
Features & Management
-
Host Memory Buffer (HMB) support
-
NVMe power state management
-
TRIM and S.M.A.R.T. monitoring
-
Advanced thermal and performance tuning via firmware
Compatibility
-
Systems supporting M.2 2280 NVMe PCIe Gen 3 slots
-
Dell laptops, desktops, and workstations using OEM NVMe SSDs
